Removal Procedure

  1. Remove the auxiliary HVAC control from the center console. Refer to HVAC CONTROL MODULE -- AUXILIARY .
  2. Remove the screws (1, 2) from the rear cover (3).
  3. Remove the center console rear cover (3).

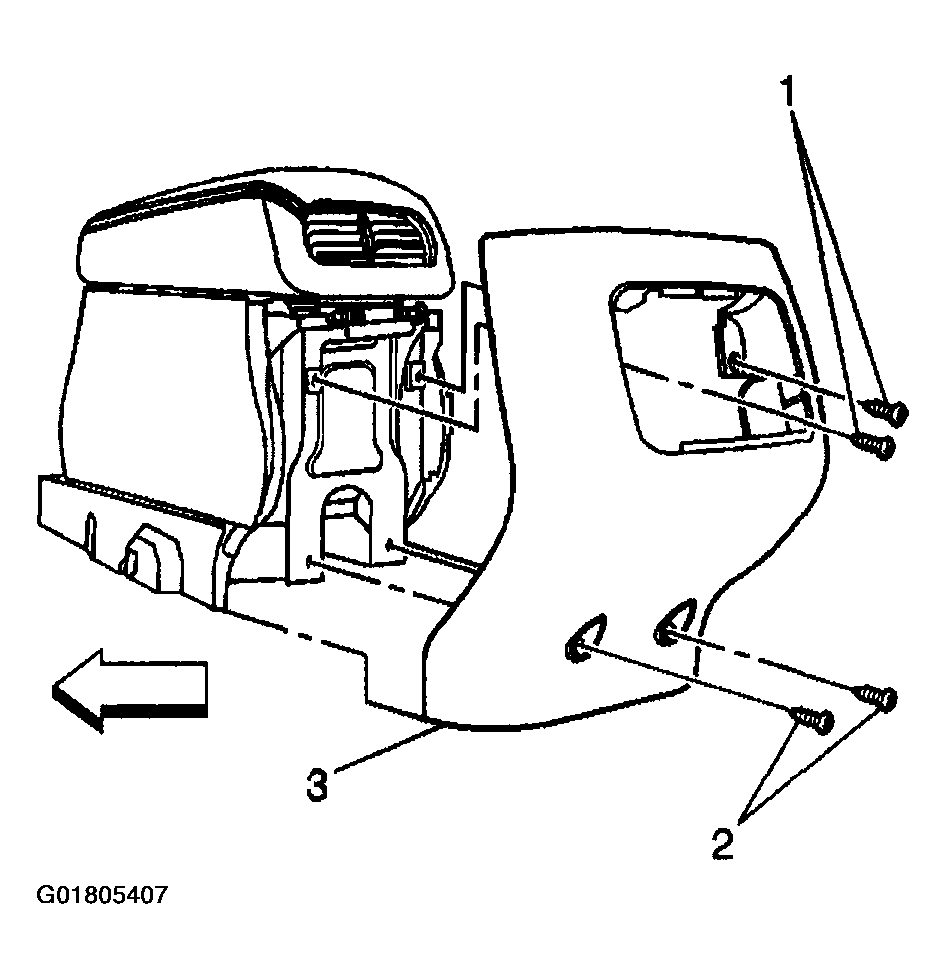

    Fig 1: Removing Center Console Rear Cover & Screws
    G01805407Courtesy of GENERAL MOTORS CORP.
  4. Open the console compartment door.
  5. Use a flat bladed tool in order to remove the inner auxiliary HVAC outlet (2).
  6. Remove the cellular telephone docking station, if equipped with UV8. Refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DTS) or CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DEVILLE AND DHS) .
  7. Remove the screws (1) from the console door hinge.
  8. Remove the console door and hinge assembly.

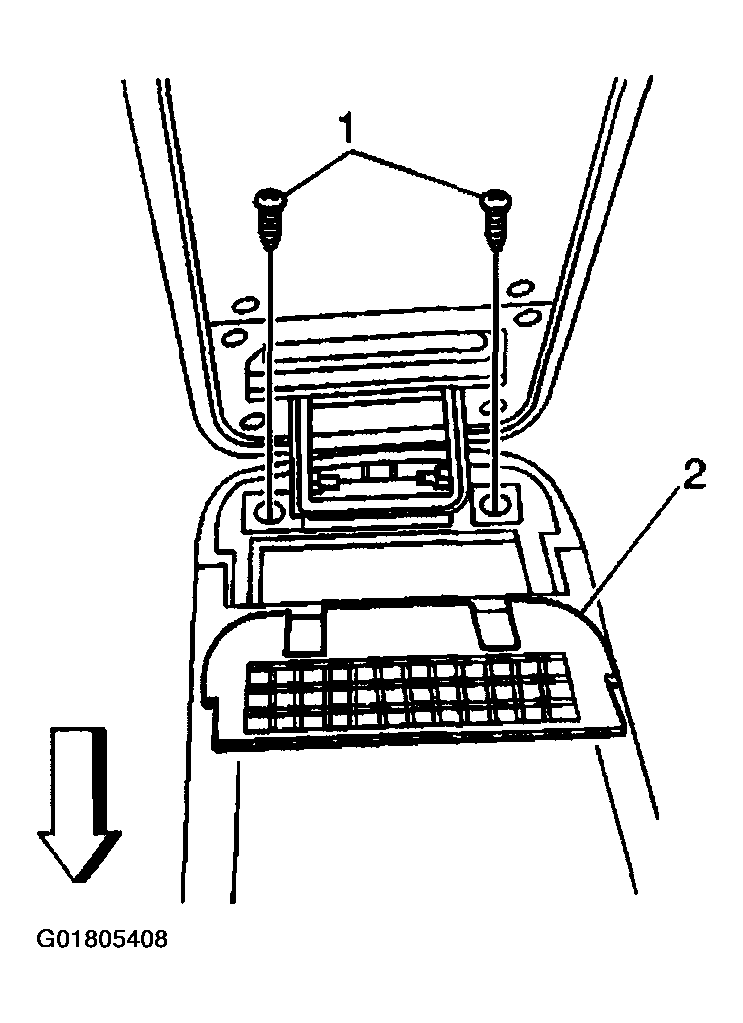

    Fig 2: Removing Inner Auxiliary HVAC Outlet & Screws
    G01805408Courtesy of GENERAL MOTORS CORP.
  9. Remove the screws (1).
  10. Remove the console tray (2).

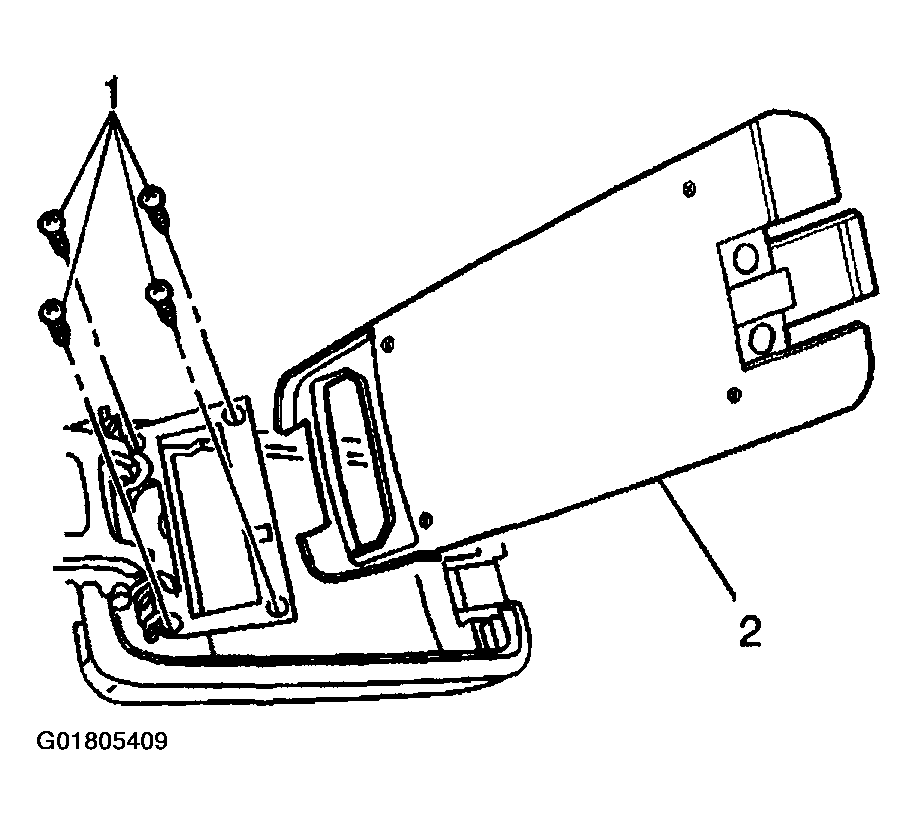

    Fig 3: Removing Console Tray & Screws
    G01805409Courtesy of GENERAL MOTORS CORP.
  11. Remove the screws (1).
  12. Remove the armrest inner trim panel (2).

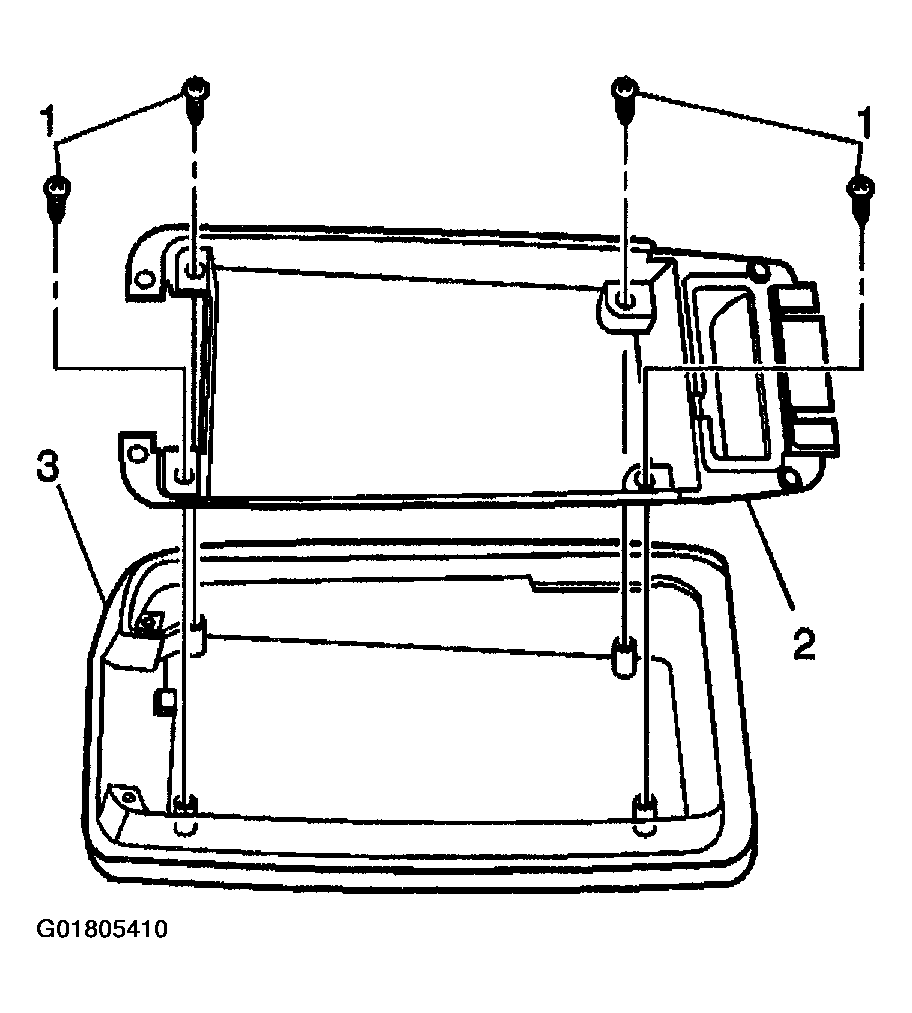

    Fig 4: Removing Armrest Inner Trim Panel & Screws
    G01805410Courtesy of GENERAL MOTORS CORP.
  13. Remove the door hinge screws (1).
  14. Remove the console door hinge (2).

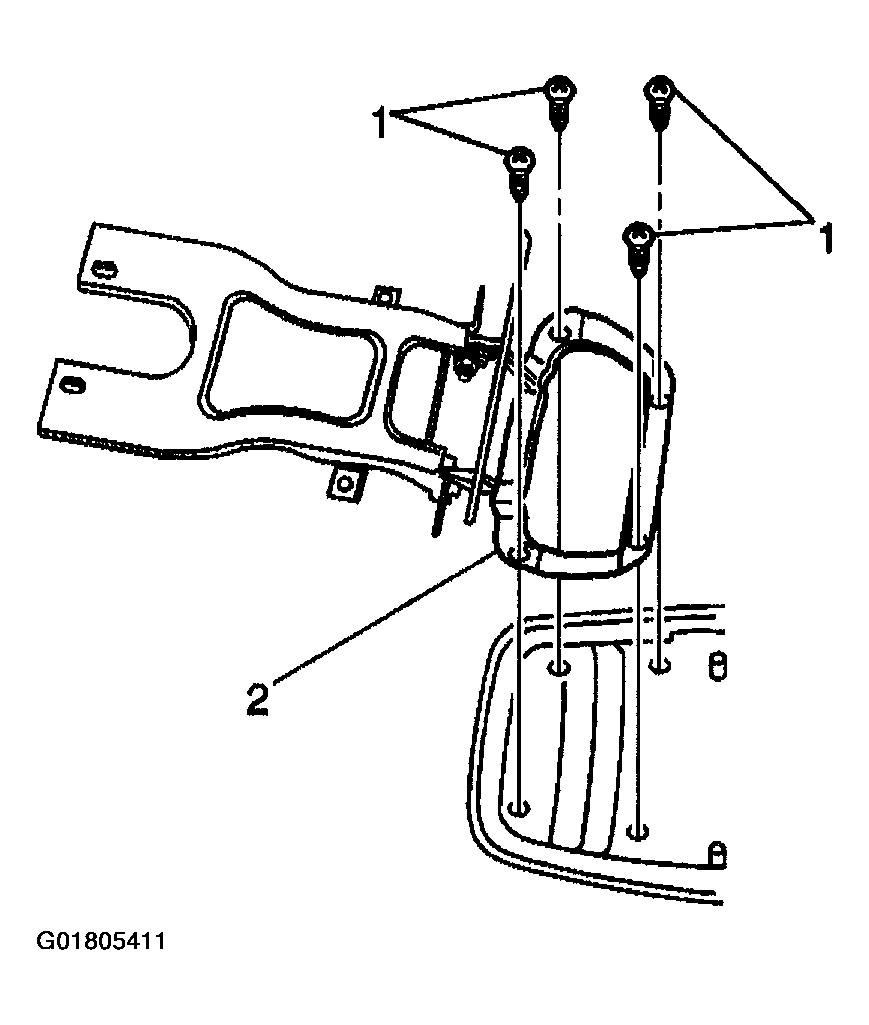

    Fig 5: Removing Console Door Hinge & Screws
    G01805411Courtesy of GENERAL MOTORS CORP.
