Removal Procedure

  1. Open the console compartment upper door. The console tray insert should be visible.
  2. Remove the 4 fasteners (1) that retain the armrest inner trim panel (2).
  3. Remove the armrest inner trim panel (2).

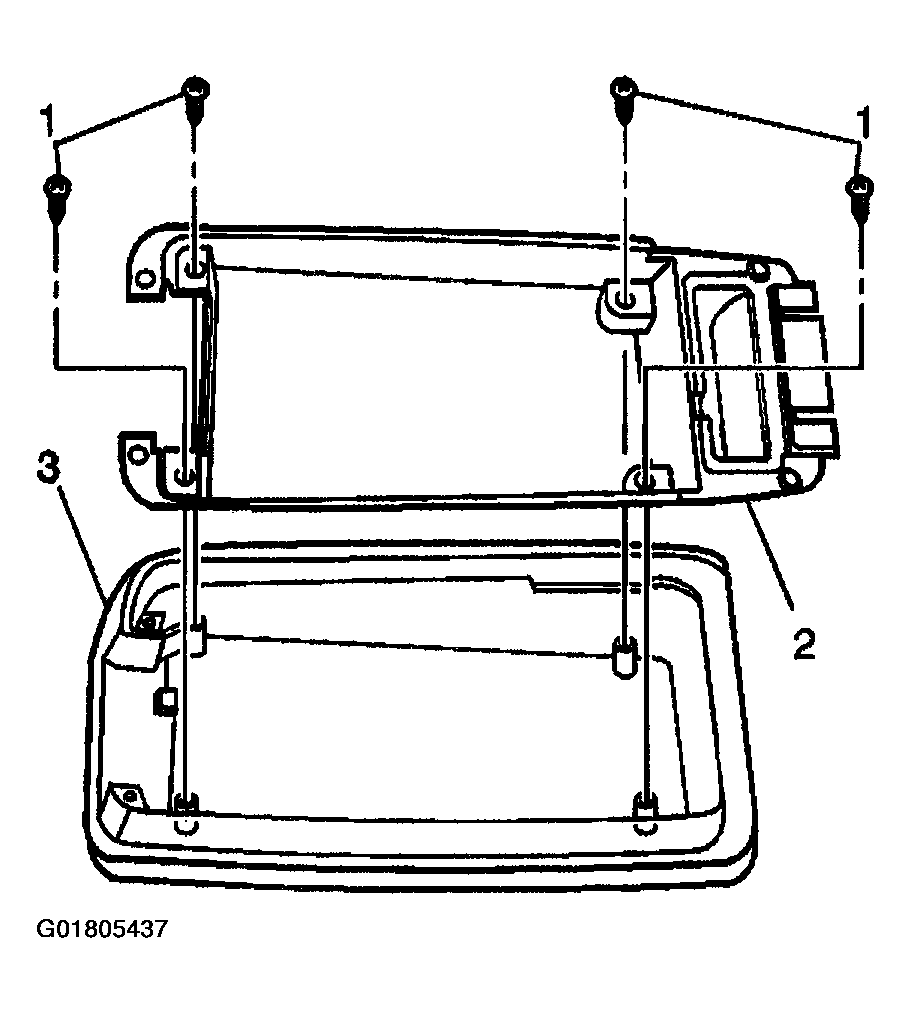

    Fig 1: Removing Armrest Inner Trim Panel & Fasteners
    G01805437Courtesy of GENERAL MOTORS CORP.
  4. Remove the 4 fasteners (1) retaining the console armrest to the console lid hinge.
  5. Remove the center console armrest.

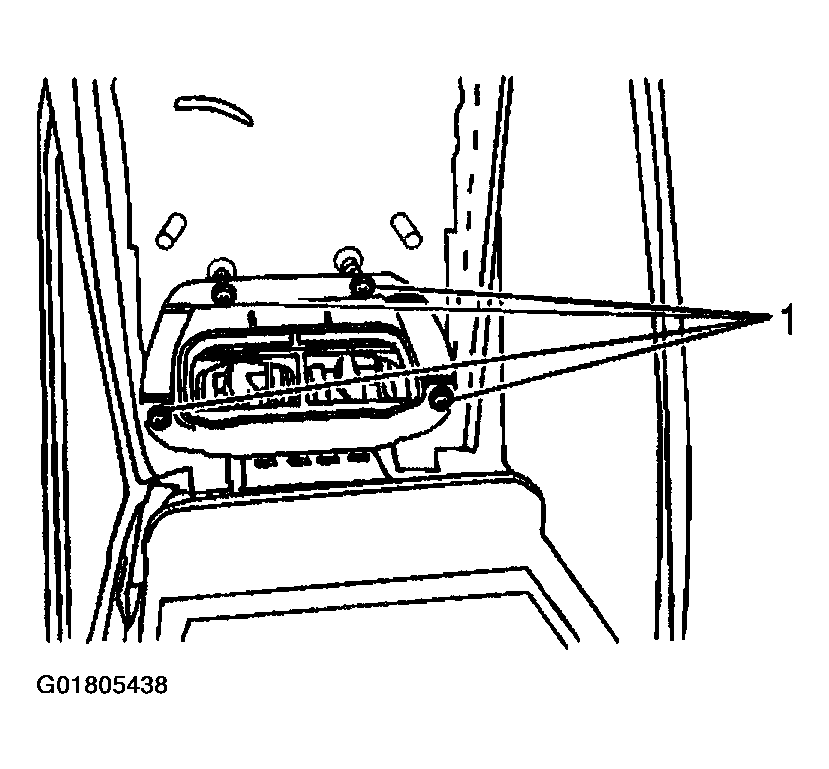

    Fig 2: Removing Console Lid To Hinge Fasteners
    G01805438Courtesy of GENERAL MOTORS CORP.
