Removal Procedure

  1. Remove the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2)  or Knee Bolster Replacement - Left (UV2) .
  2. Remove the right knee bolster. Refer to Knee Bolster Replacement - Right .
  3. Remove the four fasteners (2) retaining the center storage compartment (1).
  4. Disconnect the electrical connector if equipped.
  5. Remove the center compartment (1).

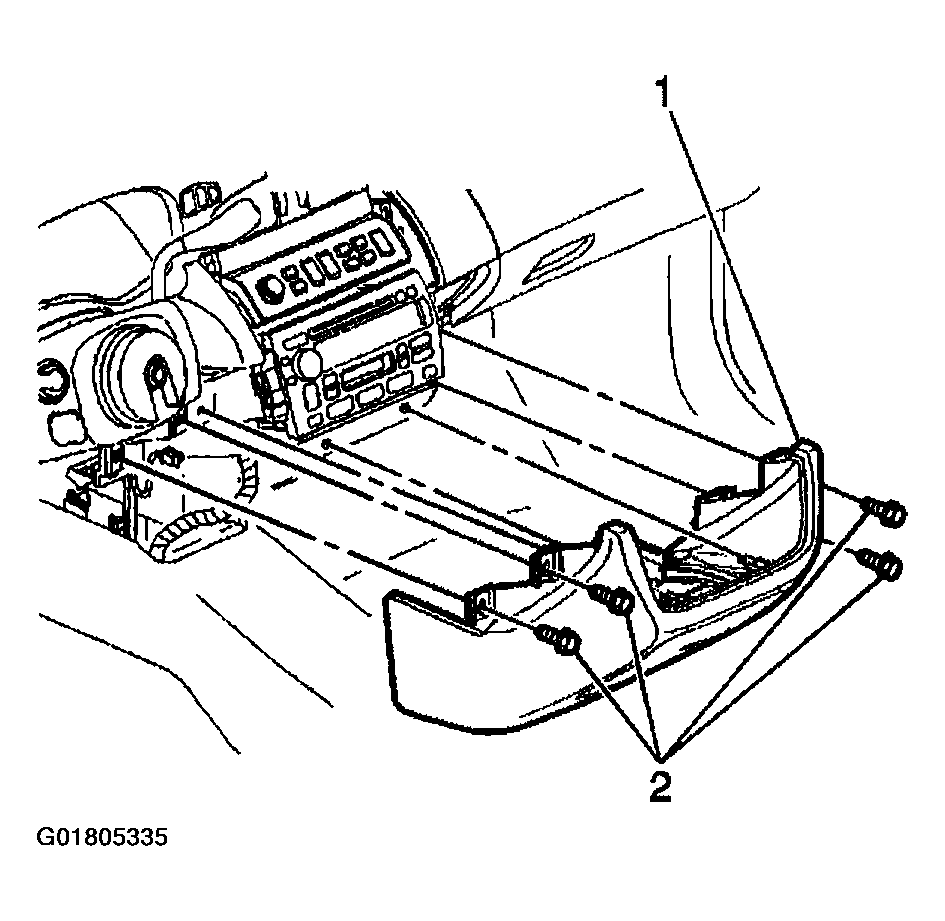

    Fig 1: Removing Center Storage Compartment & Fasteners
    G01805335Courtesy of GENERAL MOTORS CORP.
