Removal Procedure

  1. Remove the fasteners (1) from the rear edge of the insulator panel.
  2. Pull the closeout / insulator panel down in order to disengage the push pin type fasteners from the lower instrument panel.
  3. Slide the closeout / insulator panel toward the rear of the vehicle.
  4. Remove the closeout / insulator panel from the vehicle.

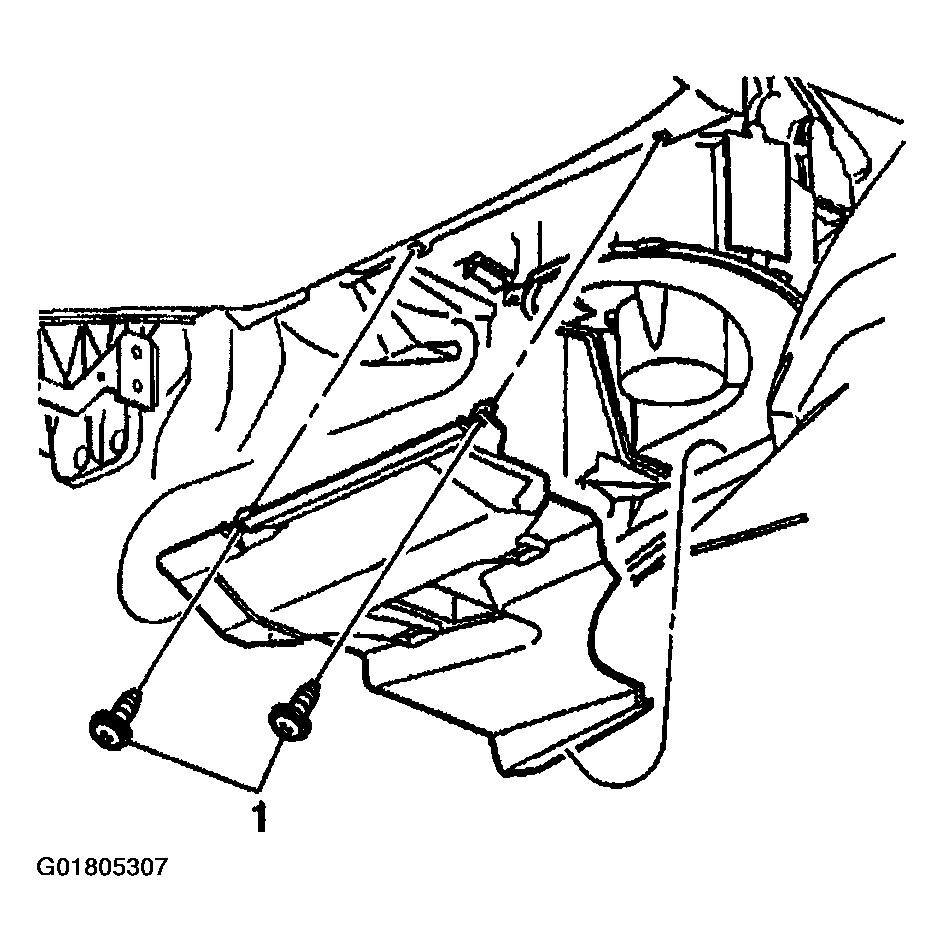

    Fig 1: Removing Rear Edge Of Insulator Fasteners
    G01805307Courtesy of GENERAL MOTORS CORP.
