Home >> Cadillac >> 2002 >> DeVille DHS >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Instrument Panel, Gauges & Console >> Repair Instructions >> Cigar Lighter Replacement (KF) >> Removal Procedure

Removal Procedure

  1. Remove the console trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) .
  2. Remove the IP compartment (1). Refer to Compartment Replacement - IP (Base and DHS)  or Compartment Replacement - IP (DTS) .
  3. Disconnect the cigar lighter lamp (4).
  4. Disconnect the electrical connector from the cigar lighter (3).
  5. Remove the cigar lighter from the housing. Remove the cigar lighter housing from the retainer by rotating the retainer counter clock wise.
  6. Remove the cigar lighter and housing.

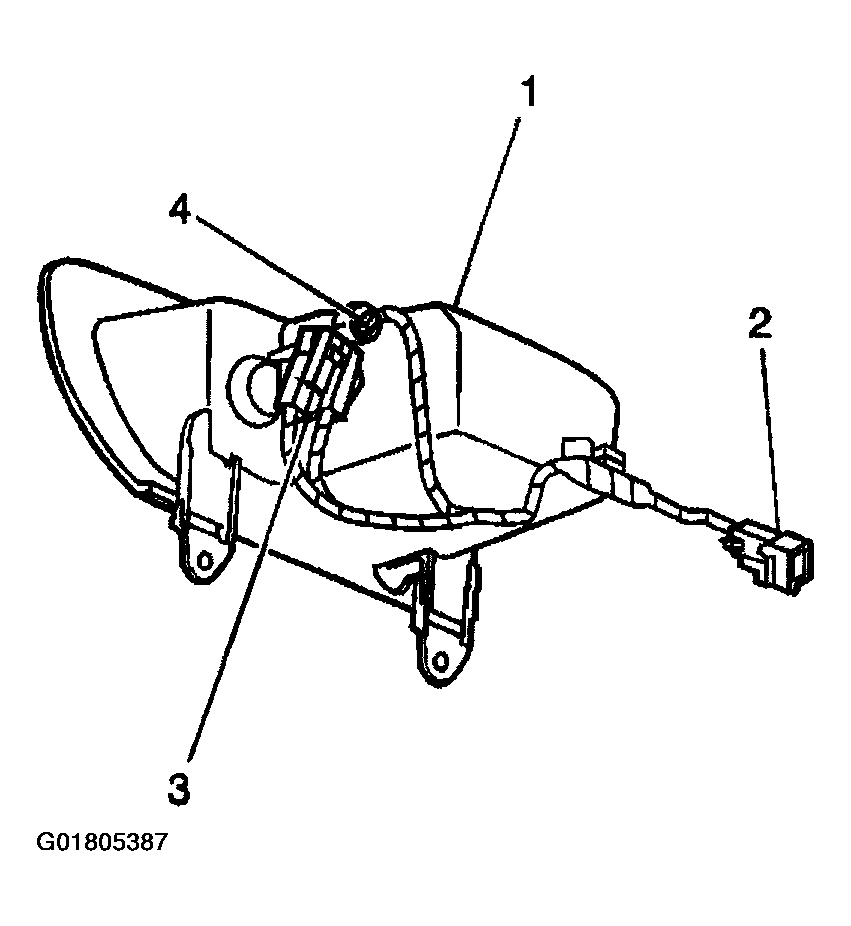

    Fig 1: IP Compartment, Cigar Lighter Lamp & Electrical Connector
    G01805387Courtesy of GENERAL MOTORS CORP.
