Tachometer Inaccurate or Inoperative

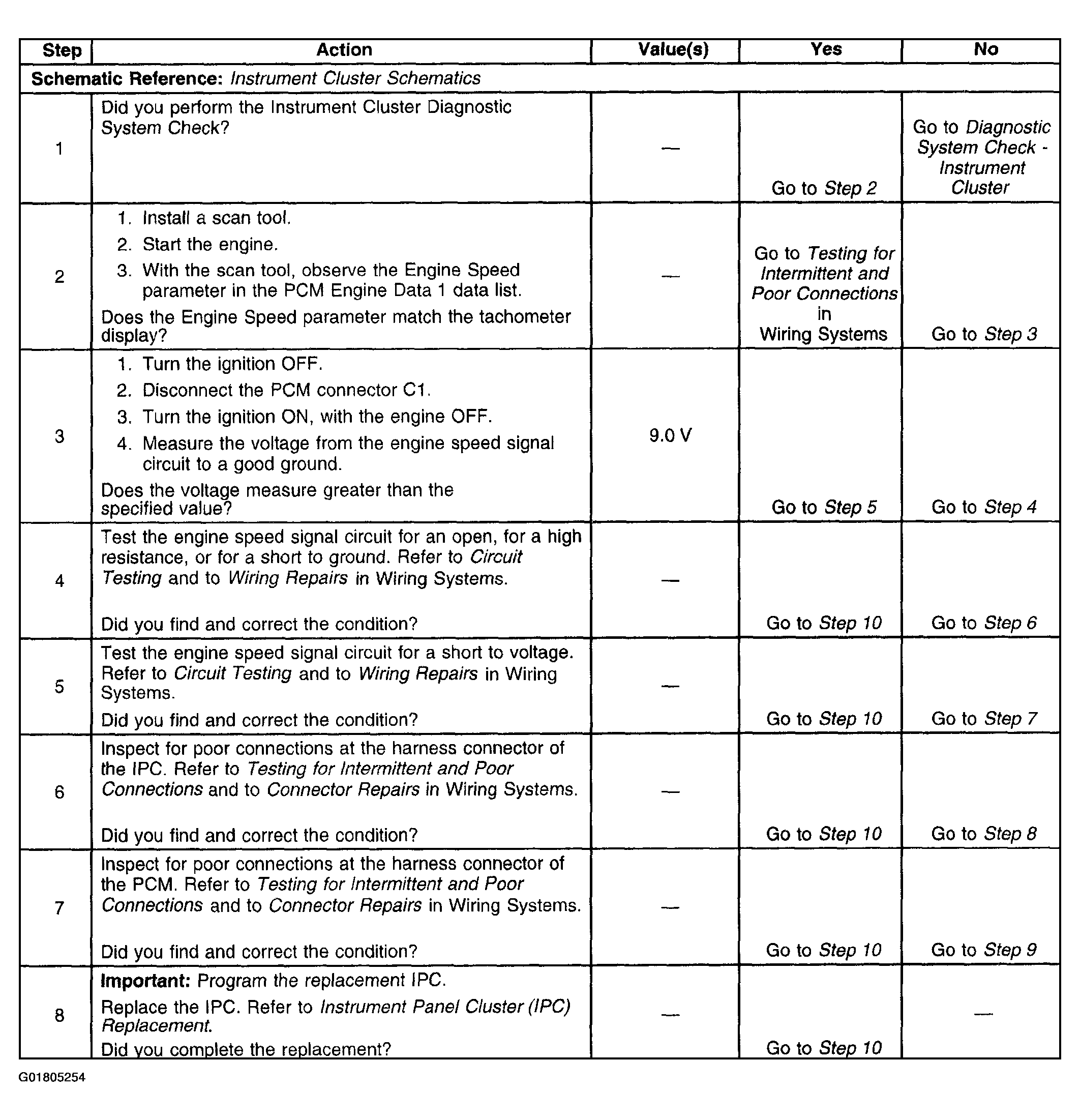

Fig 1: Tachometer Inaccurate or Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

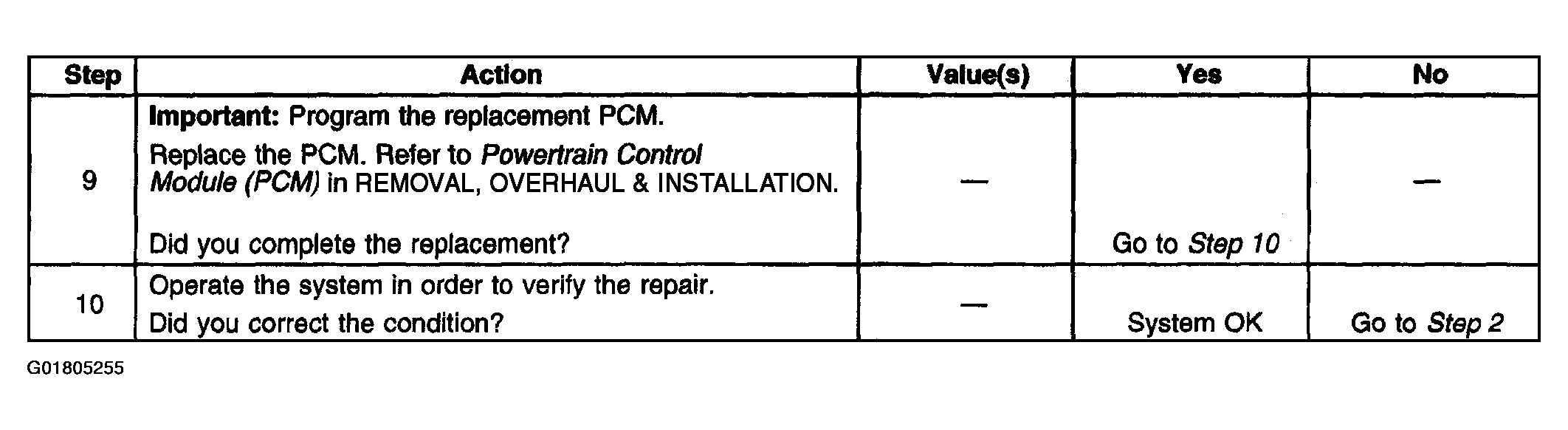

Fig 2: Tachometer Inaccurate or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
