Night Vision Display Poor Video Image

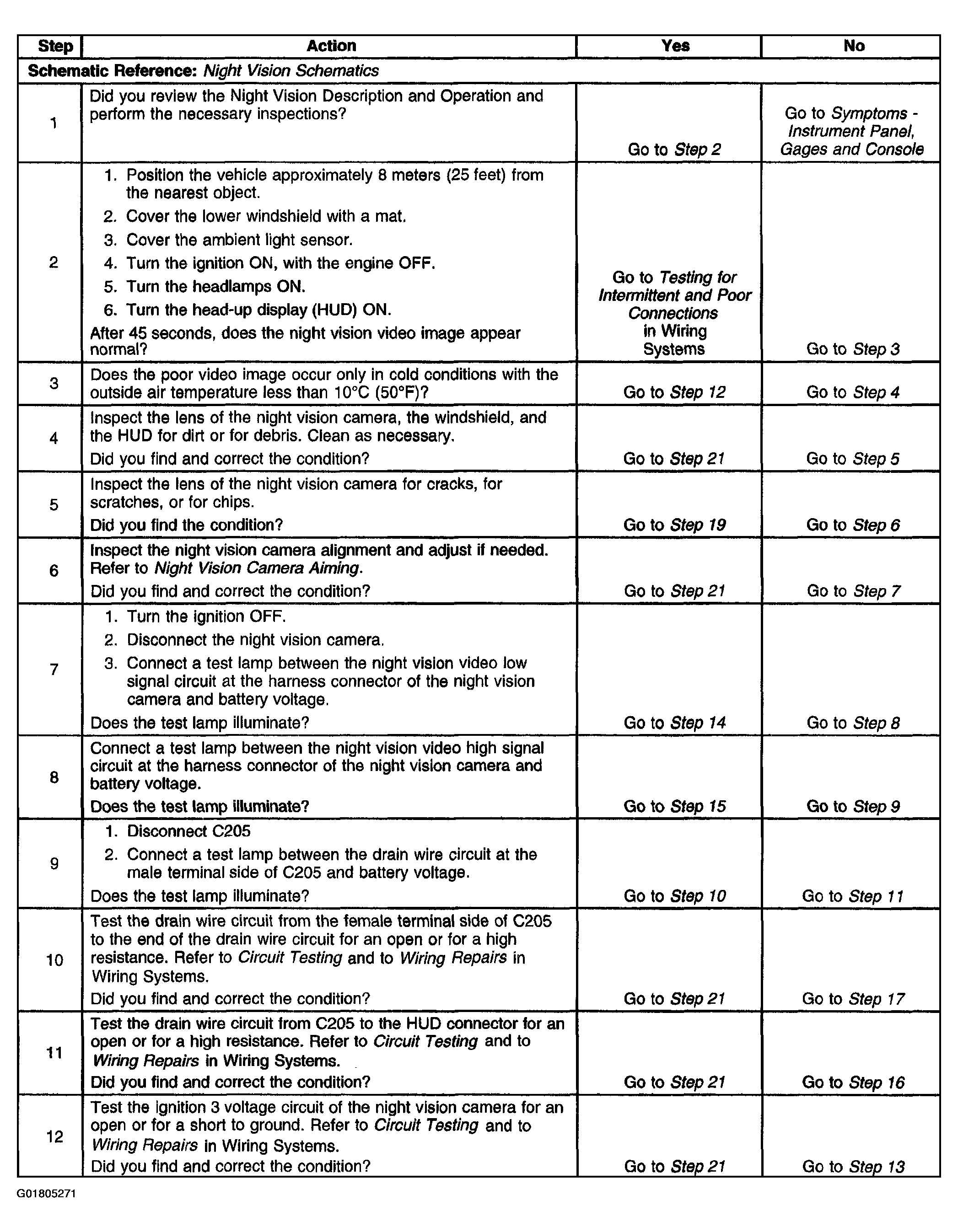

Fig 1: Night Vision Display Poor Video Image (1 Of 2)
G01805271Courtesy of GENERAL MOTORS CORP.

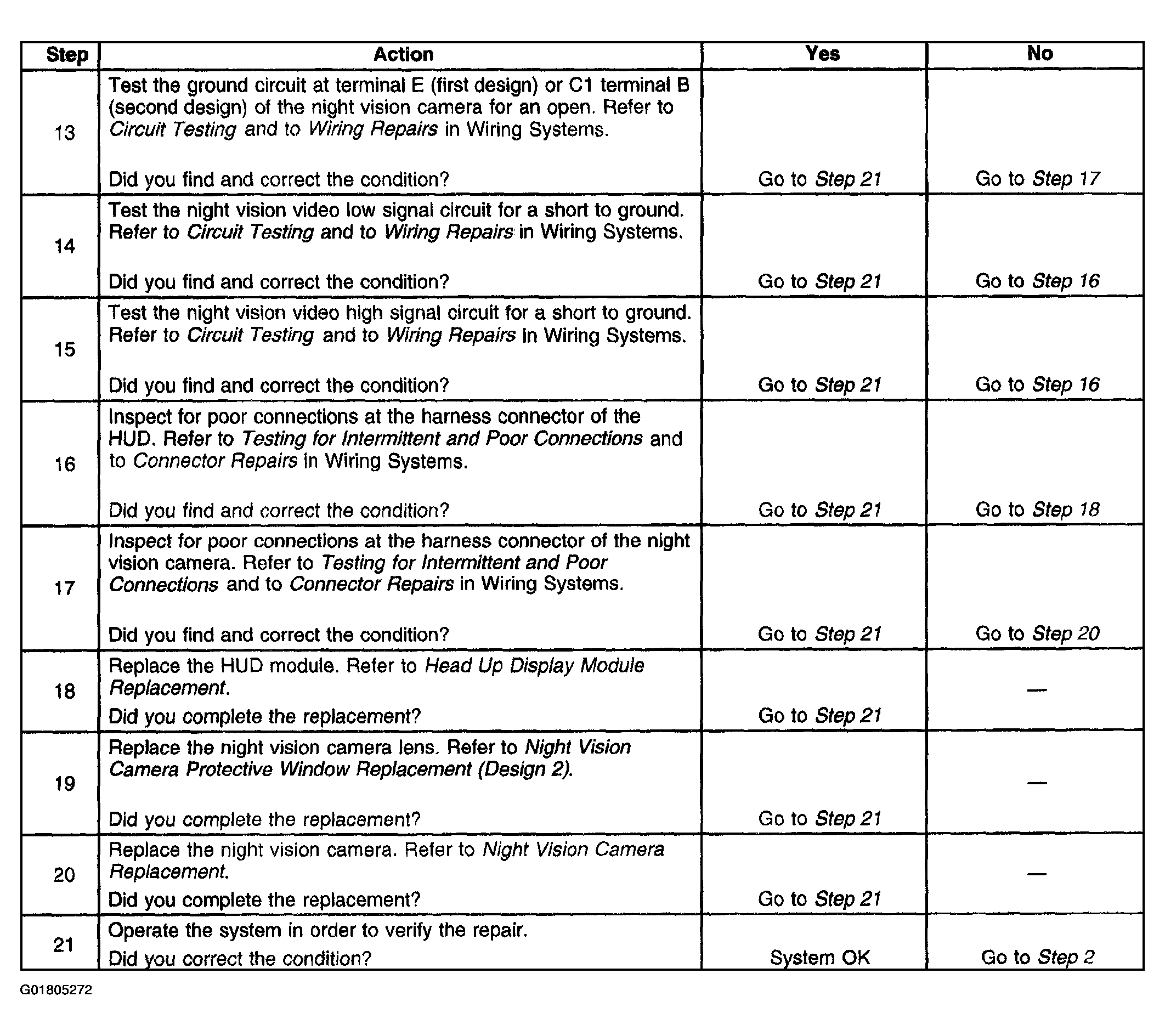

Fig 2: Night Vision Display Poor Video Image (2 Of 2)
G01805272Courtesy of GENERAL MOTORS CORP.
