Night Vision Display Inoperative

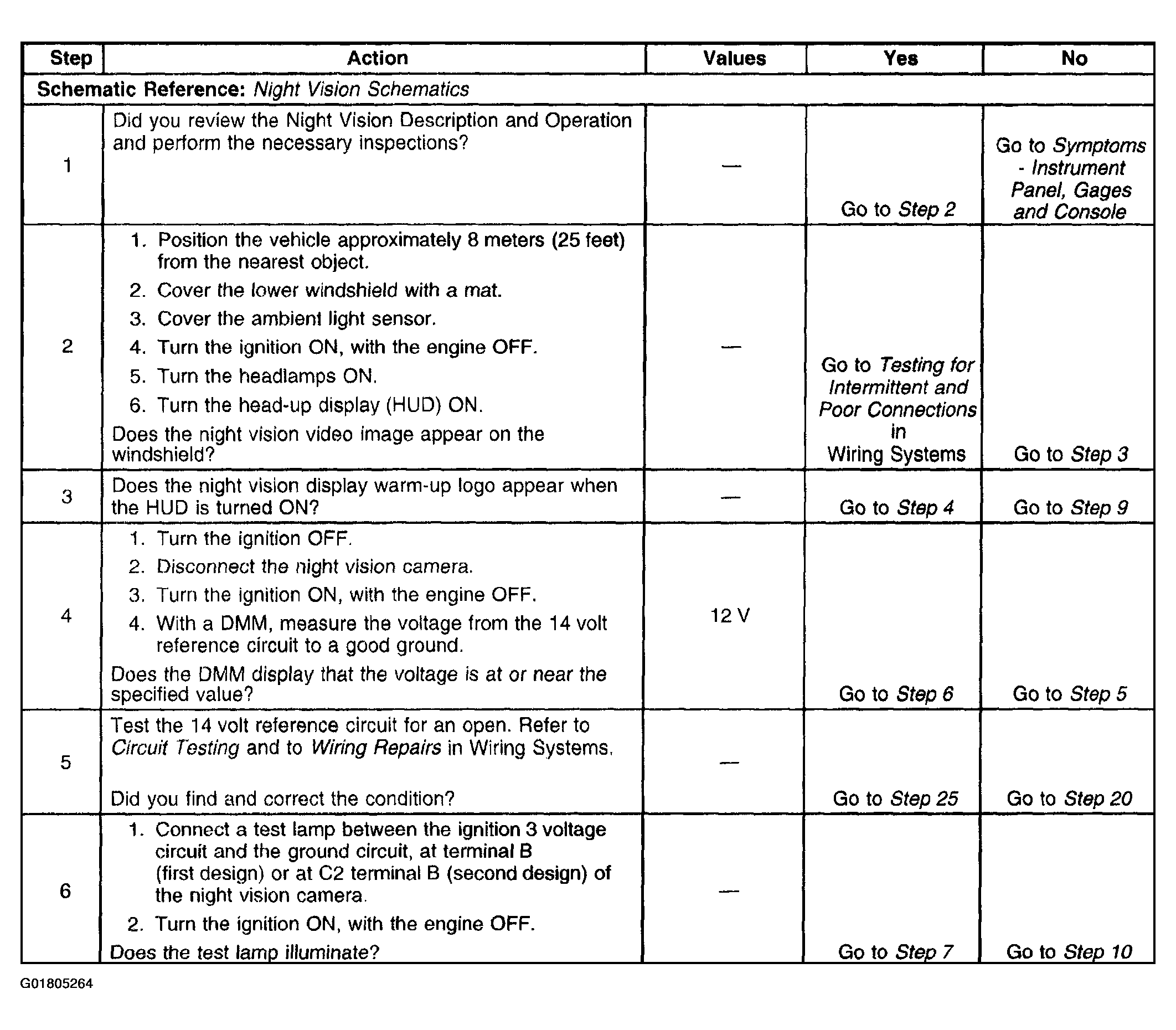

Fig 1: Night Vision Display Inoperative (1 Of 3)
G01805264Courtesy of GENERAL MOTORS CORP.

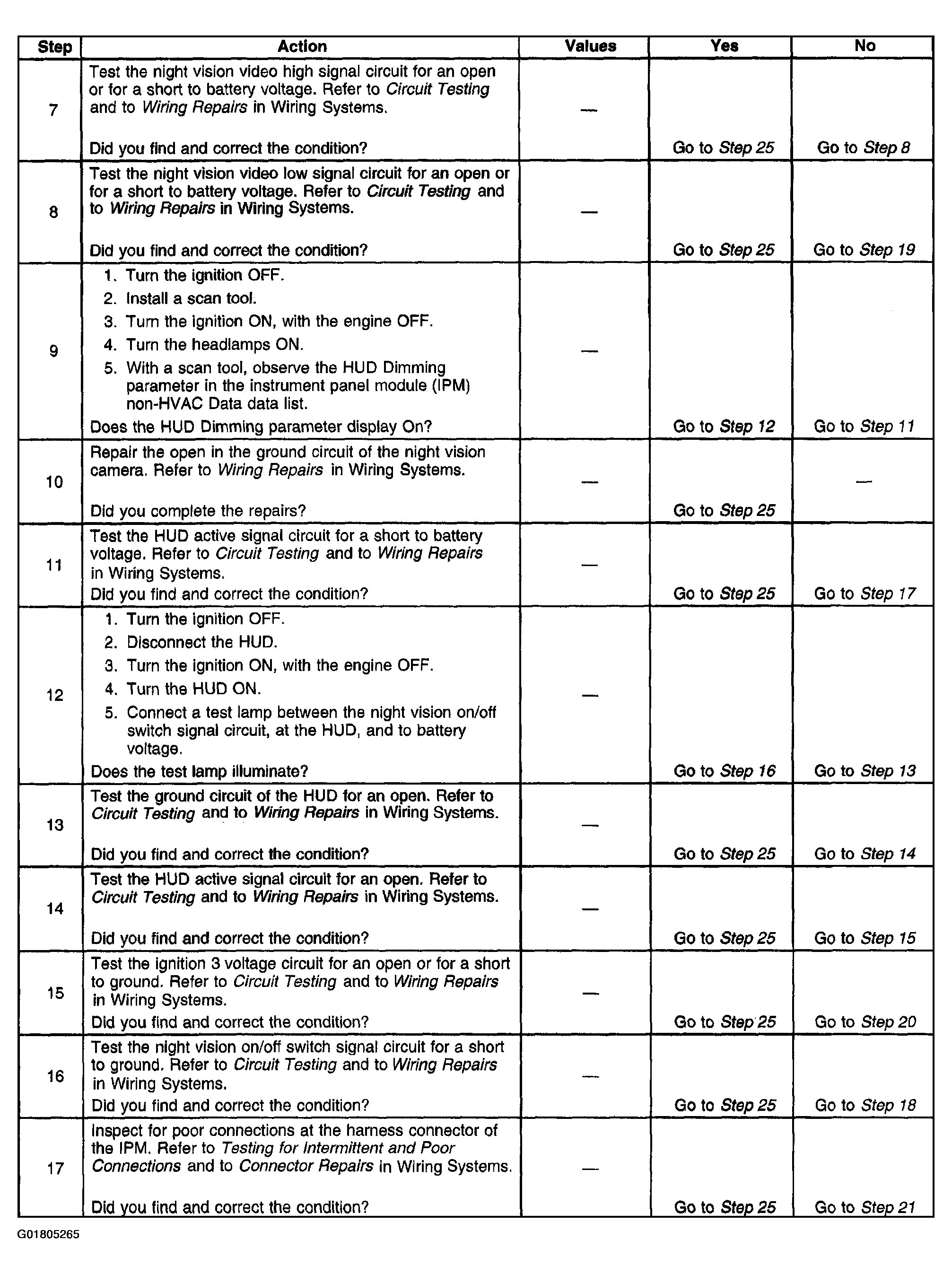

Fig 2: Night Vision Display Inoperative (2 Of 3)
G01805265Courtesy of GENERAL MOTORS CORP.

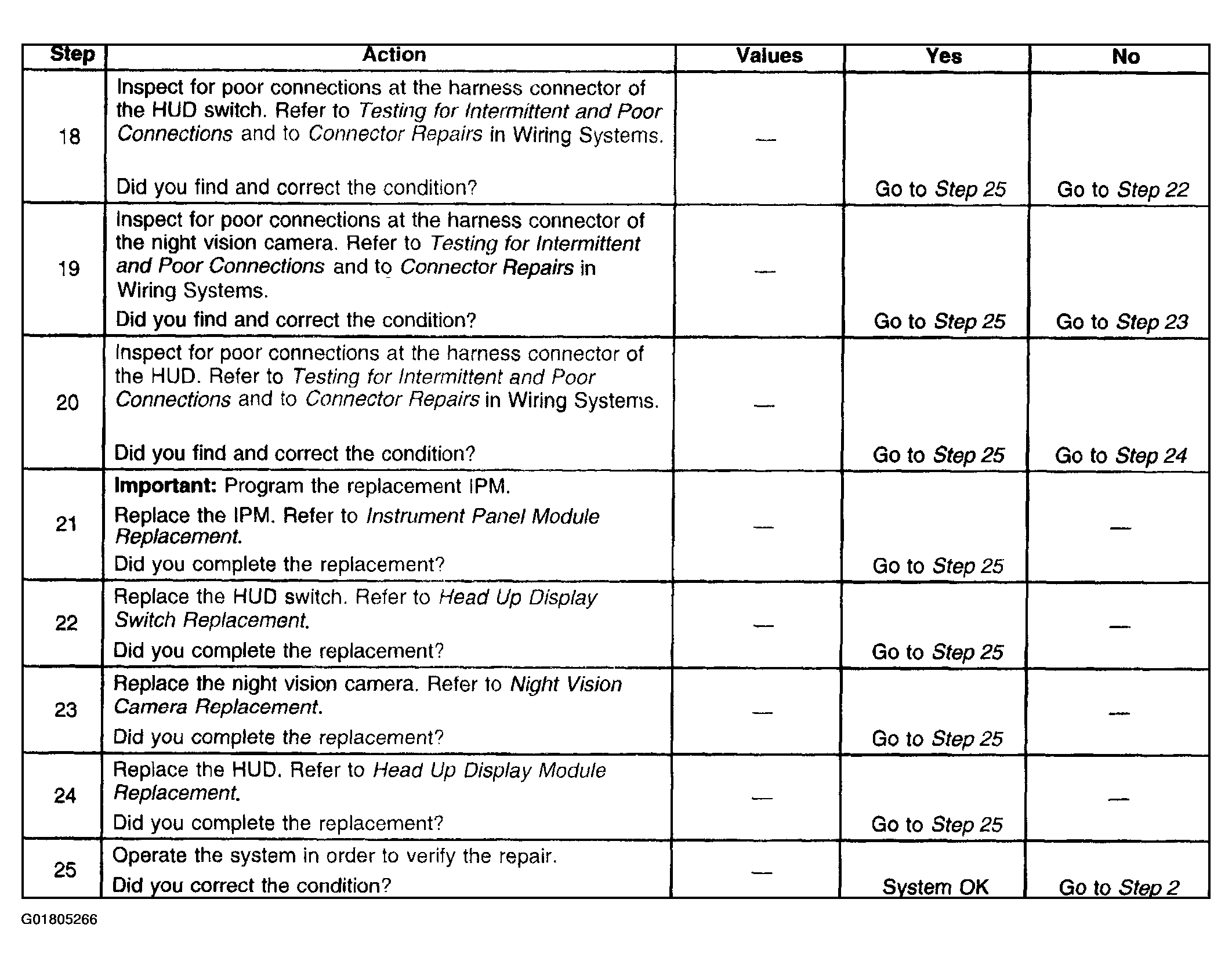

Fig 3: Night Vision Display Inoperative (3 Of 3)
G01805266Courtesy of GENERAL MOTORS CORP.
