Engine Oil Pressure Indicator Always On

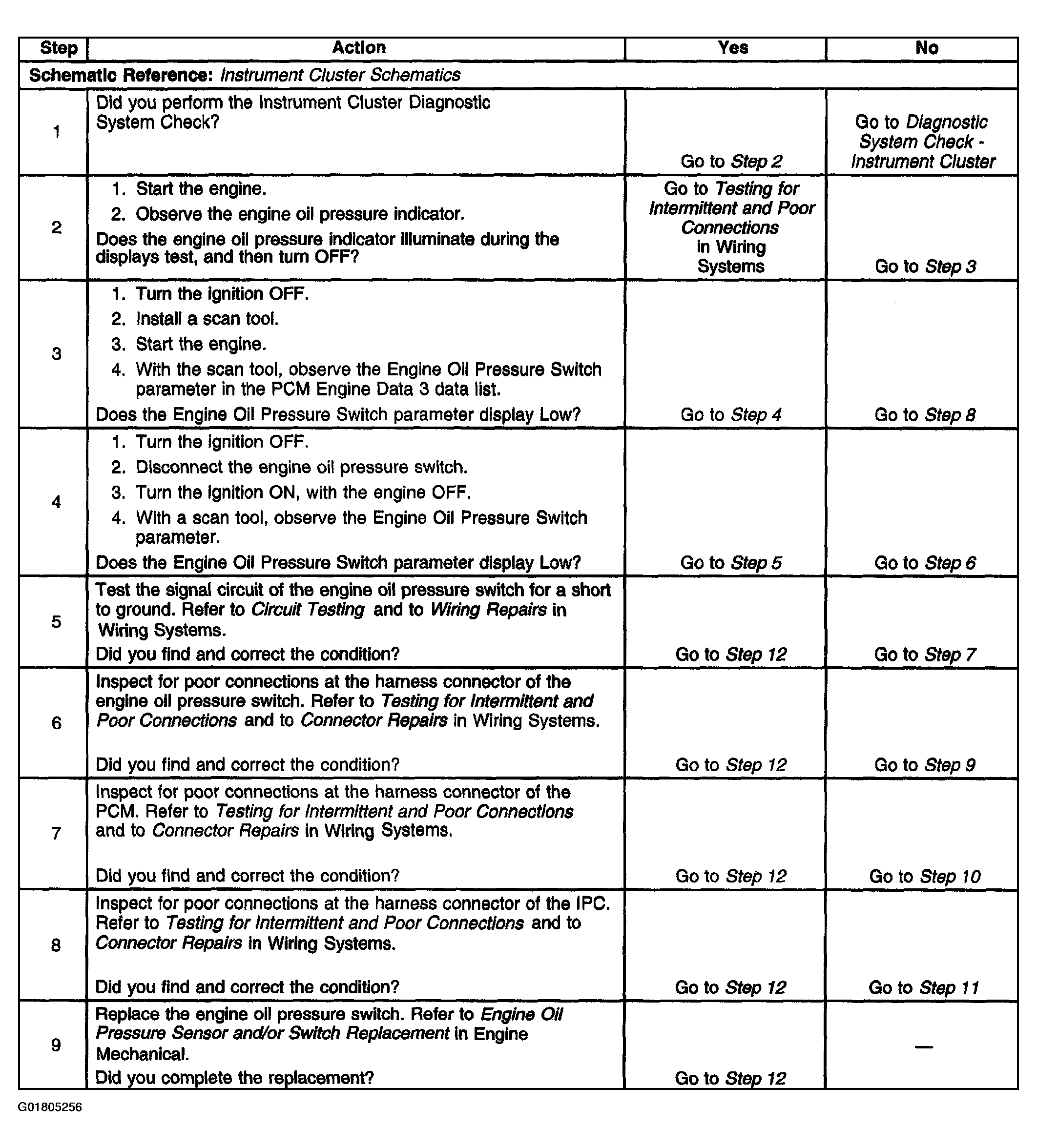

Fig 1: Engine Oil Pressure Indicator Always On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

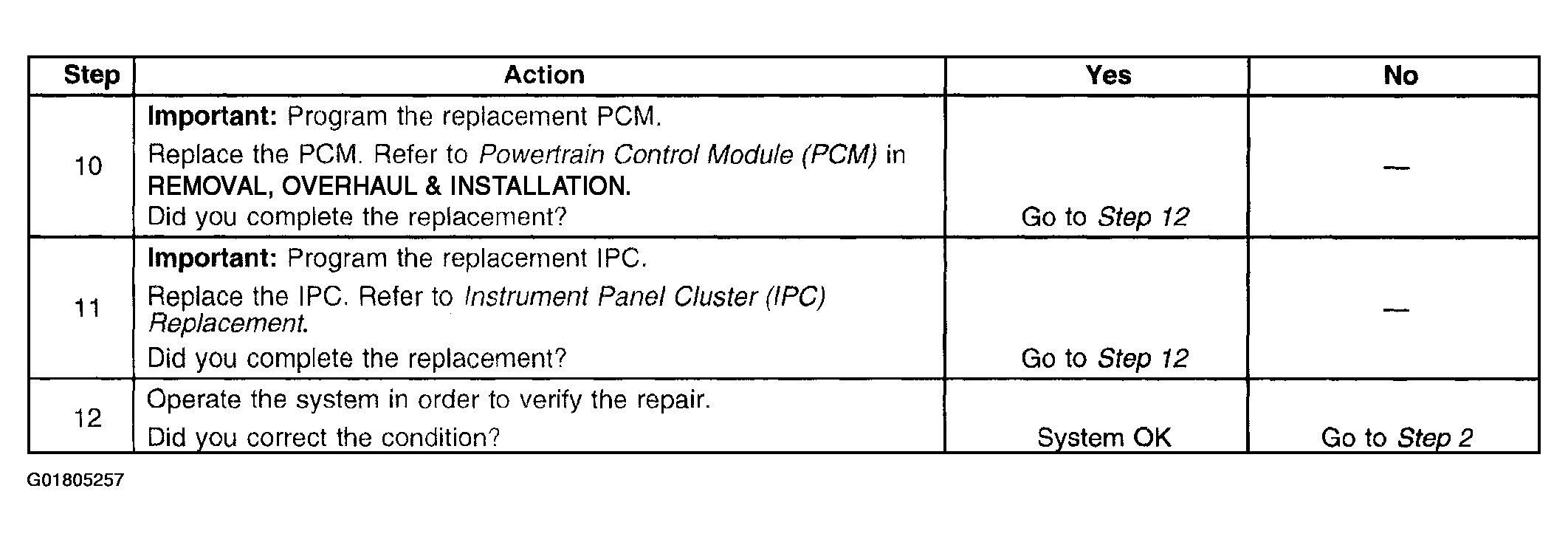

Fig 2: Engine Oil Pressure Indicator Always On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
