Driver Information Center (DIC) Switch(es) Inoperative

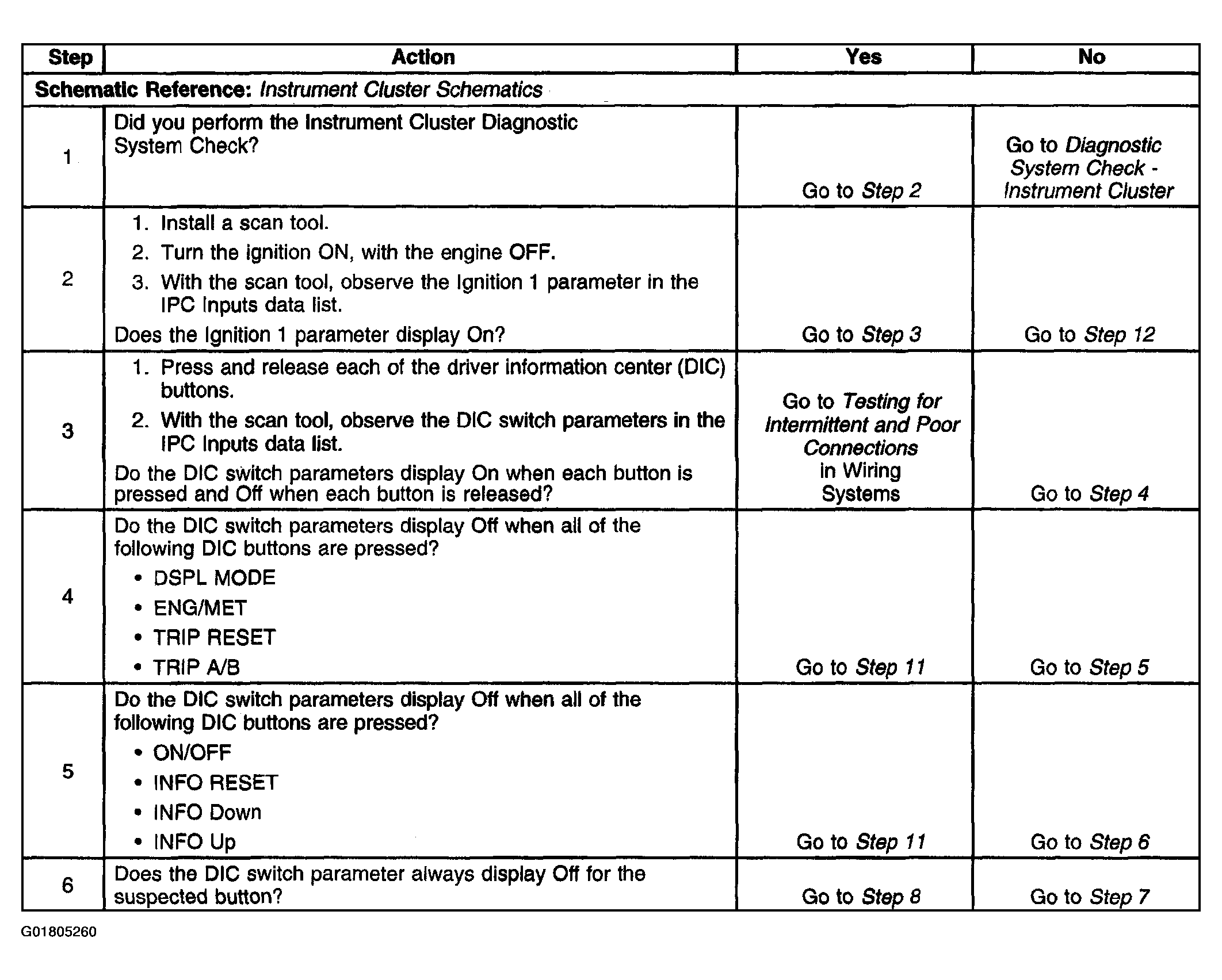

Fig 1: Driver Information Center (DIC) Switch(es) Inoperative (1 Of 2)
G01805260Courtesy of GENERAL MOTORS CORP.

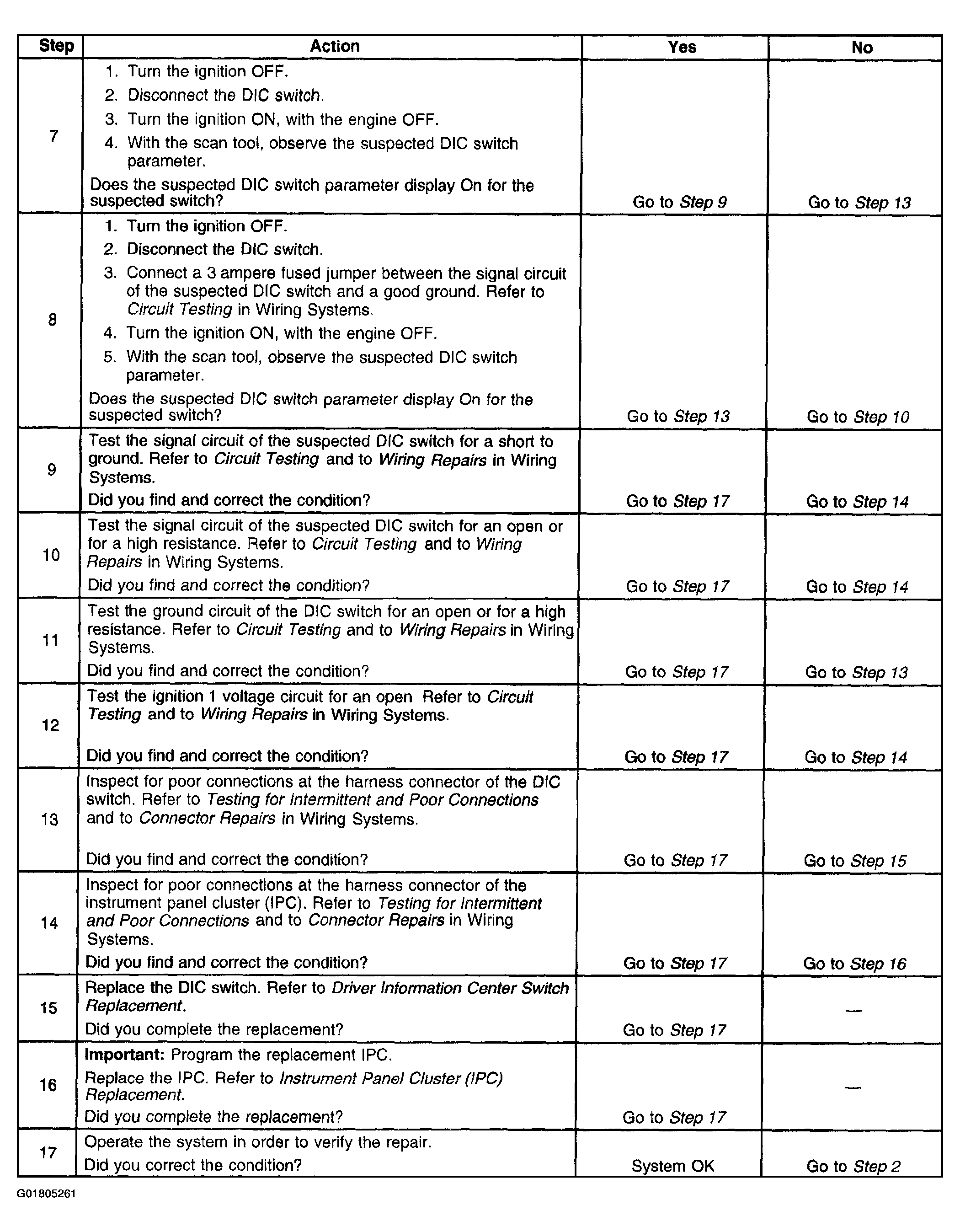

Fig 2: Driver Information Center (DIC) Switch(es) Inoperative (2 Of 2)
G01805261Courtesy of GENERAL MOTORS CORP.
