Instrument Panel, Gages, and Console Connector End Views

Fig 1: Driver Information Center (DIC) Switch - Right

Courtesy of GENERAL MOTORS CORP.

Fig 2: Driver Information Center (DIC) Switch - Left

Courtesy of GENERAL MOTORS CORP.

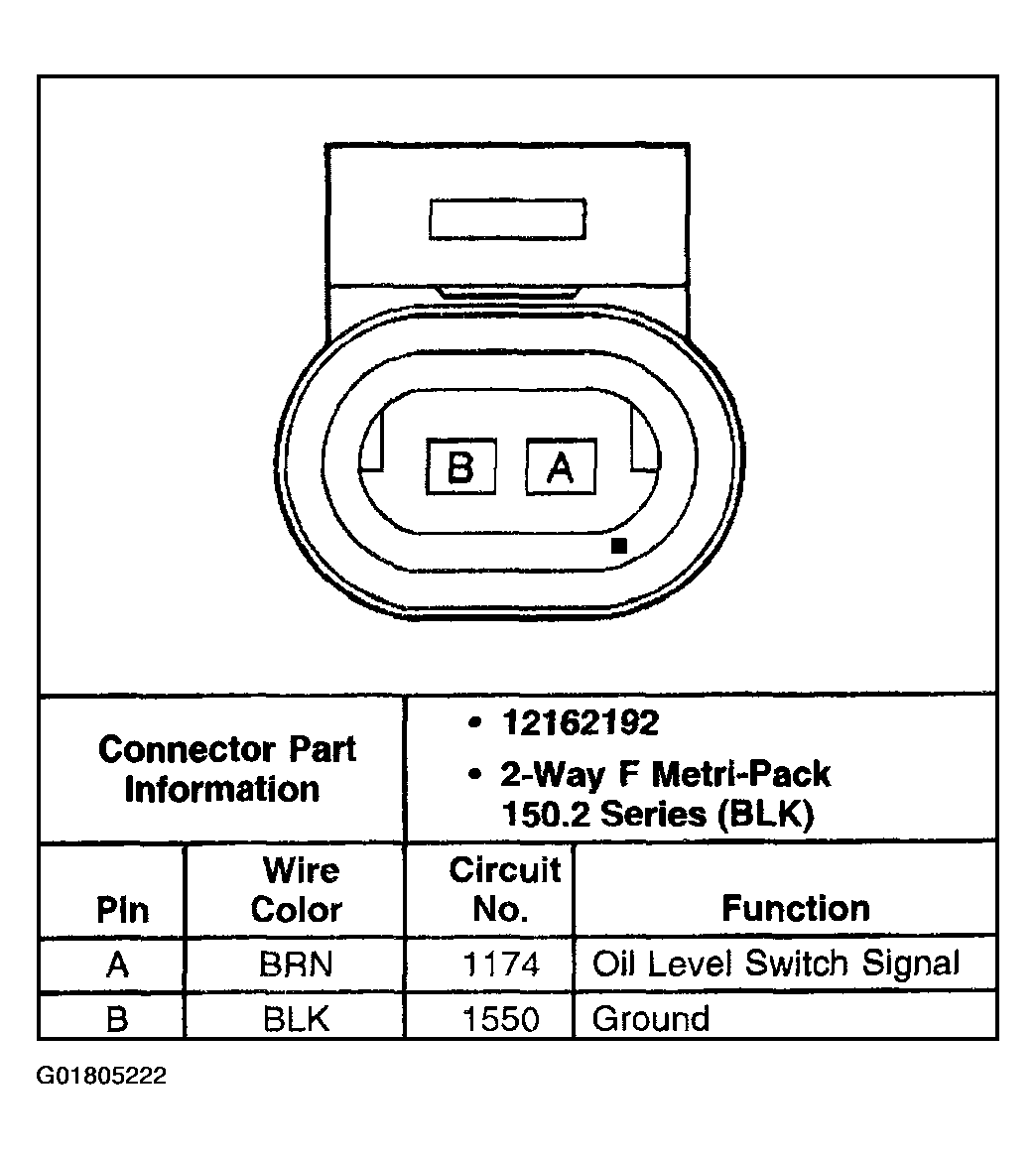

Fig 3: Engine Oil Level Switch

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Oil Pressure (EOP) Switch

Courtesy of GENERAL MOTORS CORP.

Fig 5: Head Up Display (HUD) 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Fig 6: Head Up Display (HUD) 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Fig 7: Head Up Display (HUD) Switch

Courtesy of GENERAL MOTORS CORP.

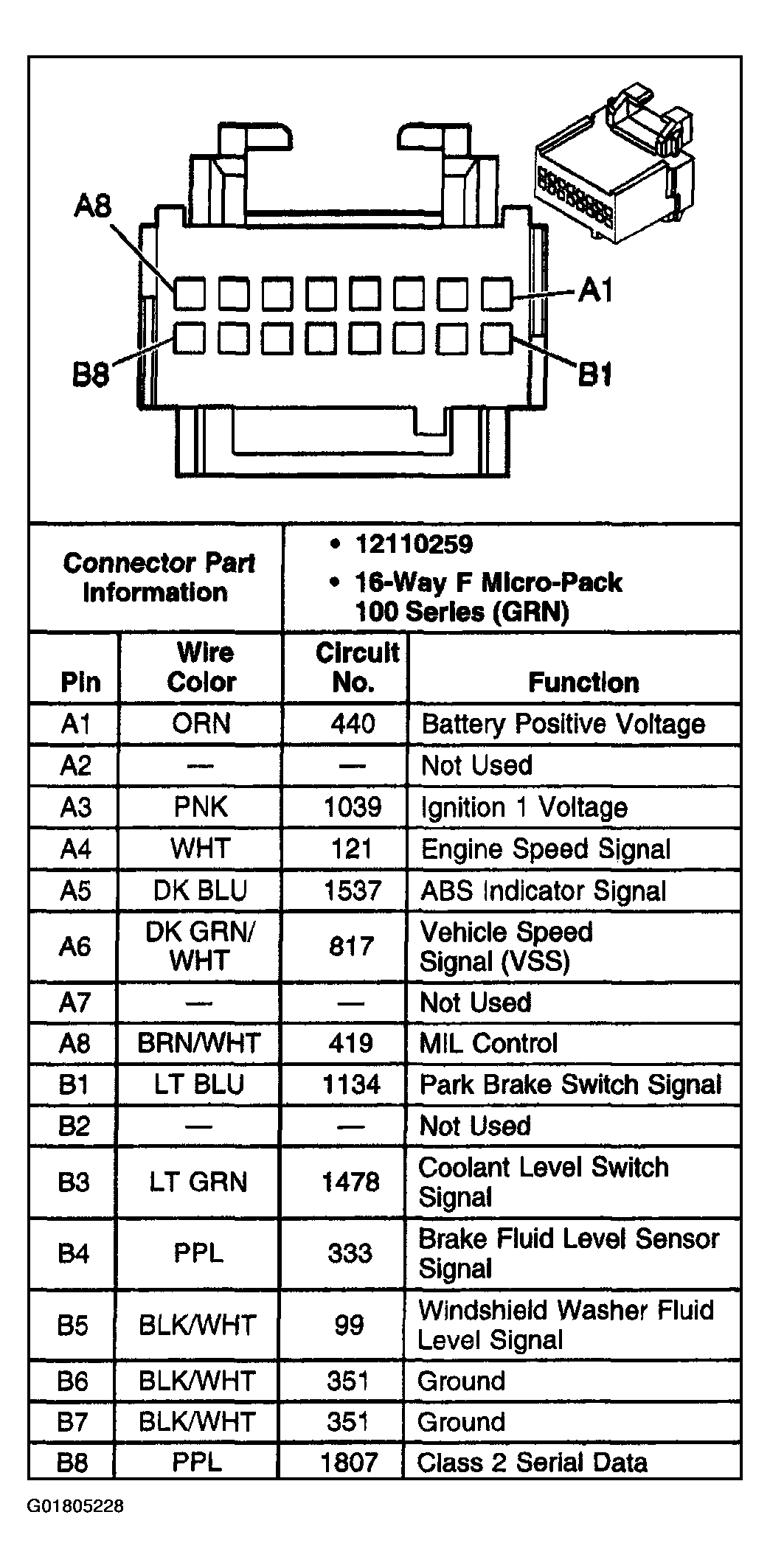

Fig 8: Instrument Panel Cluster (IPC) C1

Courtesy of GENERAL MOTORS CORP.

Fig 9: Instrument Panel Cluster (IPC) C2

Courtesy of GENERAL MOTORS CORP.

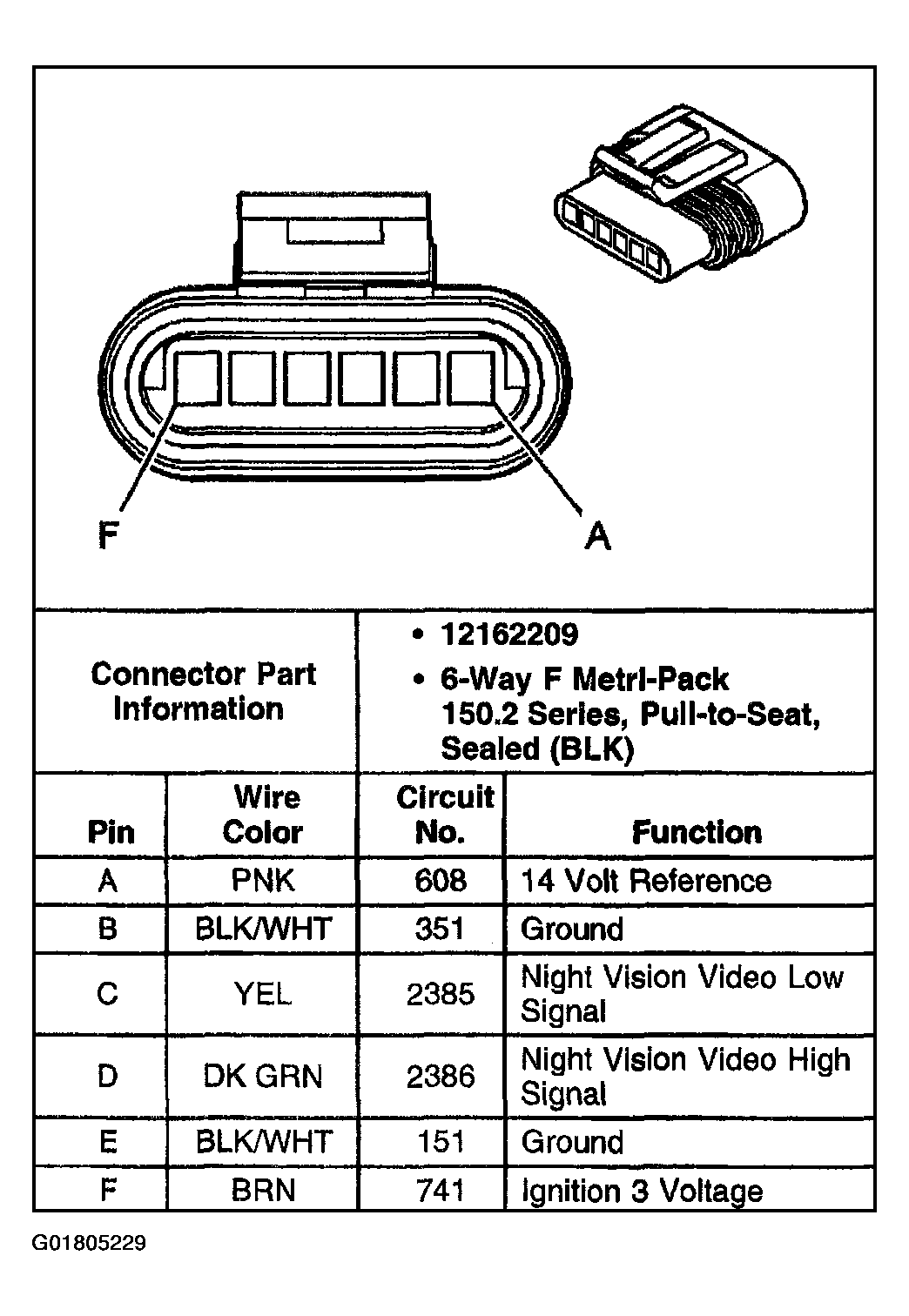

Fig 10: Night Vision Camera (Design 1)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Night Vision Camera C1 (Design 2)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Night Vision Camera C2 (Design 2)

Courtesy of GENERAL MOTORS CORP.
