Schematic and Routing Diagrams

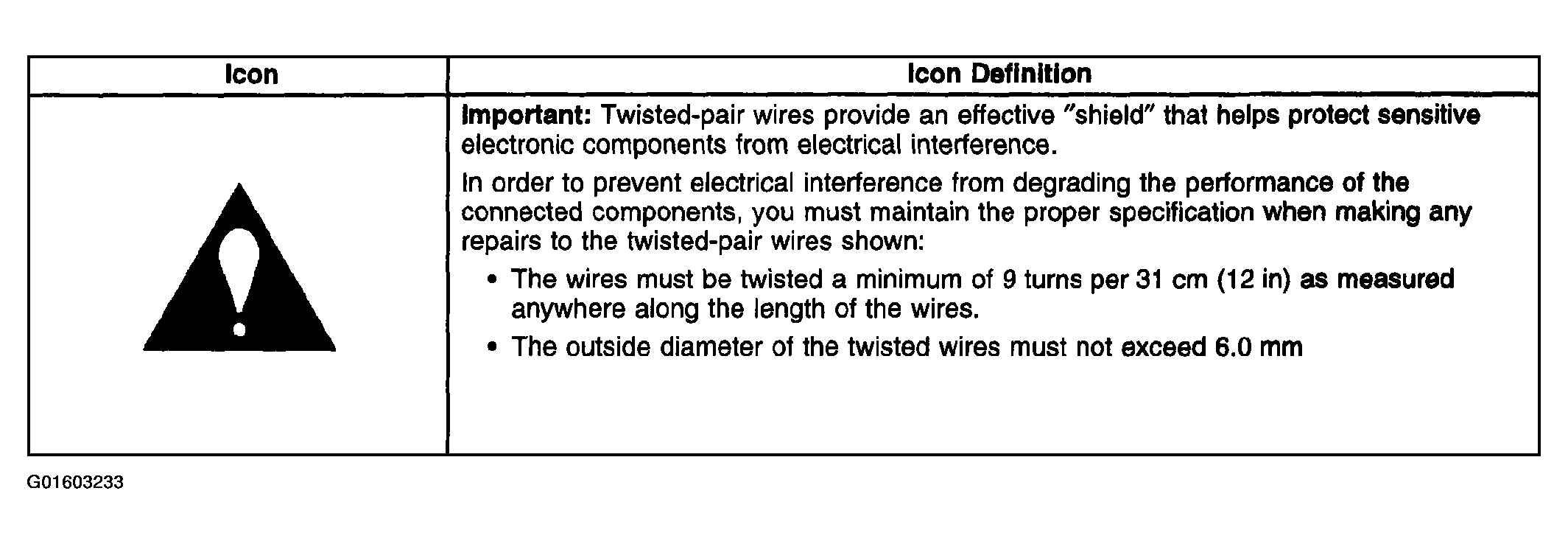

Fig 1: Suspension Controls Schematic Icons

Courtesy of GENERAL MOTORS CORP.

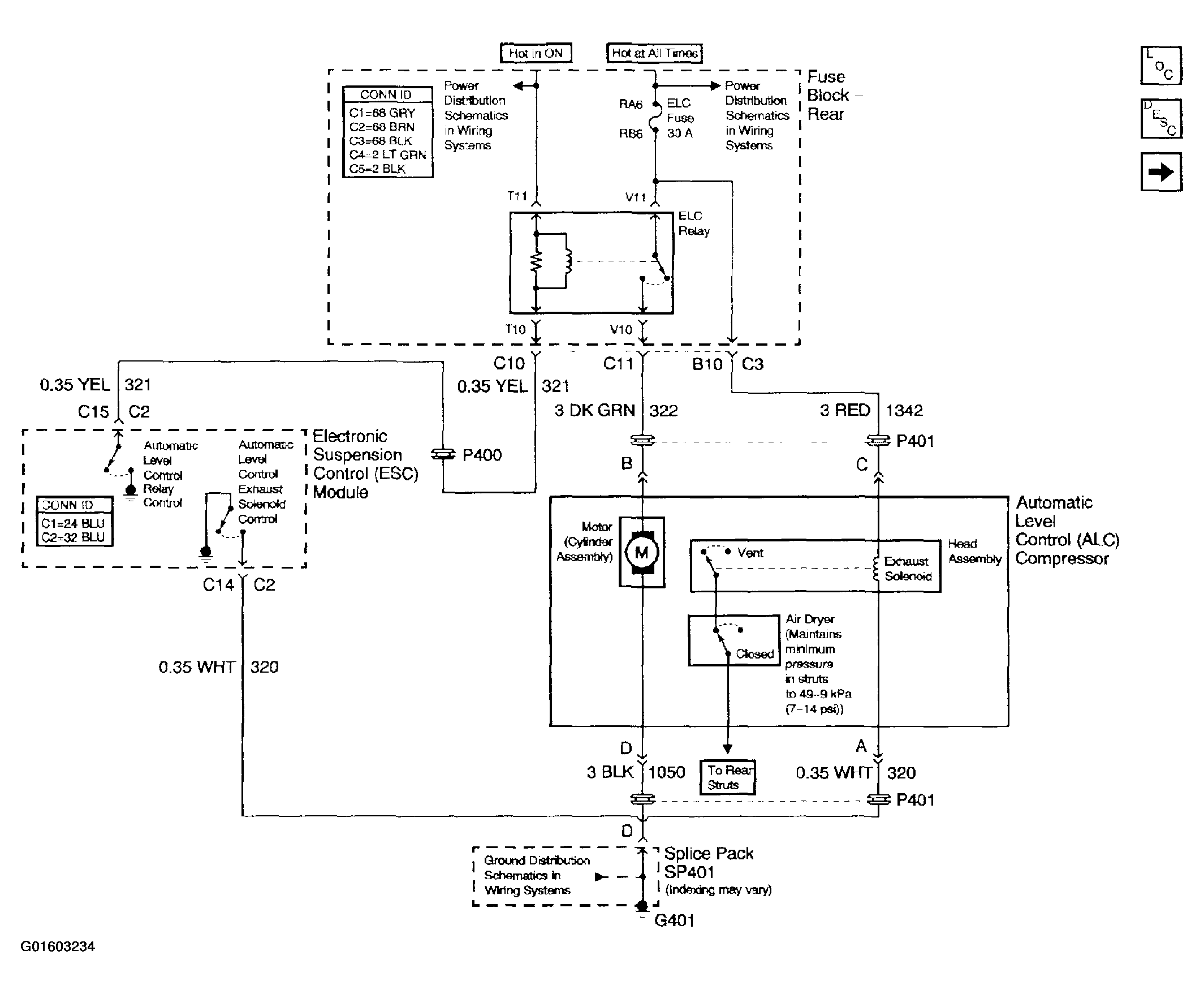

Fig 2: Suspension Controls Schematic (Electronic Suspension Control Module - Power and Ground)

Courtesy of GENERAL MOTORS CORP.

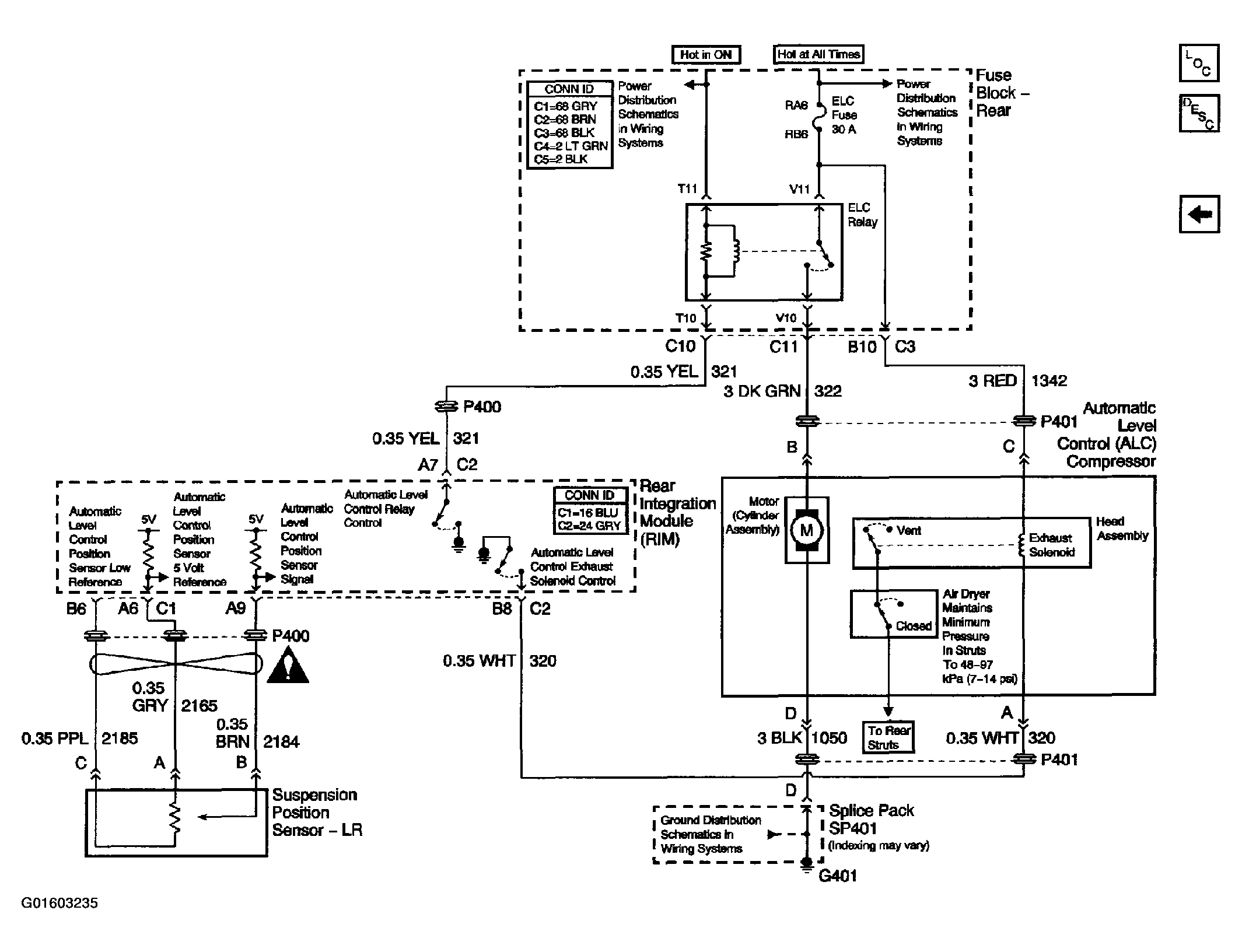

Fig 3: Suspension Controls Schematics (Actuators and Sensors)

Courtesy of GENERAL MOTORS CORP.
