Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the wheel from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .

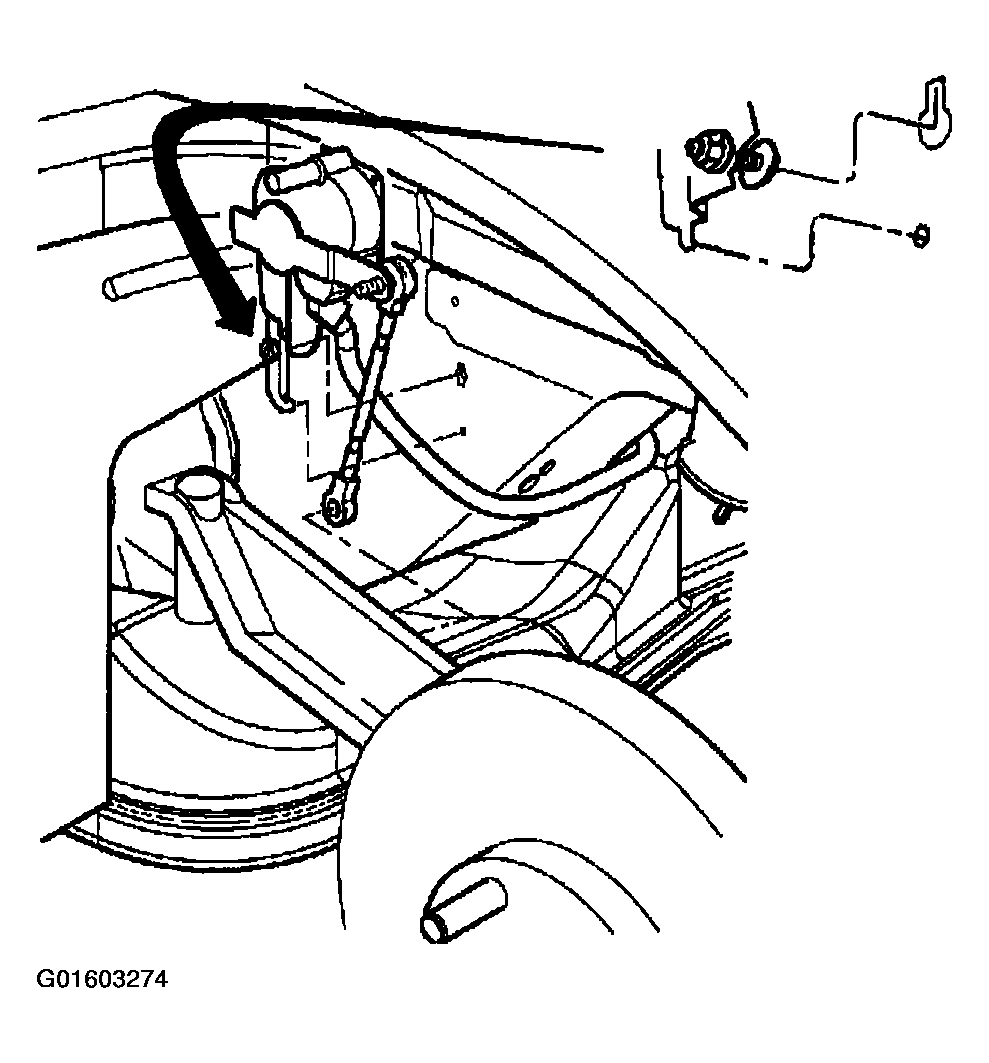

    3. Fig 1: Removing Sensor
    G01603274Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the height sensor connector.
  4. Disconnect the sensor link from the ball stud.
  5. Loosen the sensor mounting nut.
  6. Disengage the anti-rotation tab and slide the sensor downward.
  7. Remove the sensor from the vehicle.
