Installation Procedure

  1. Insert head of the sensor mounting stud into the key hole.
  2. Slide the sensor upward until the anti-rotation tab engages in the lower hole.
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the sensor mounting nut.

    Tighten

    Tighten the nut to 9 N.m (80 lb in).

  4. Connect the sensor link on the ball stud.

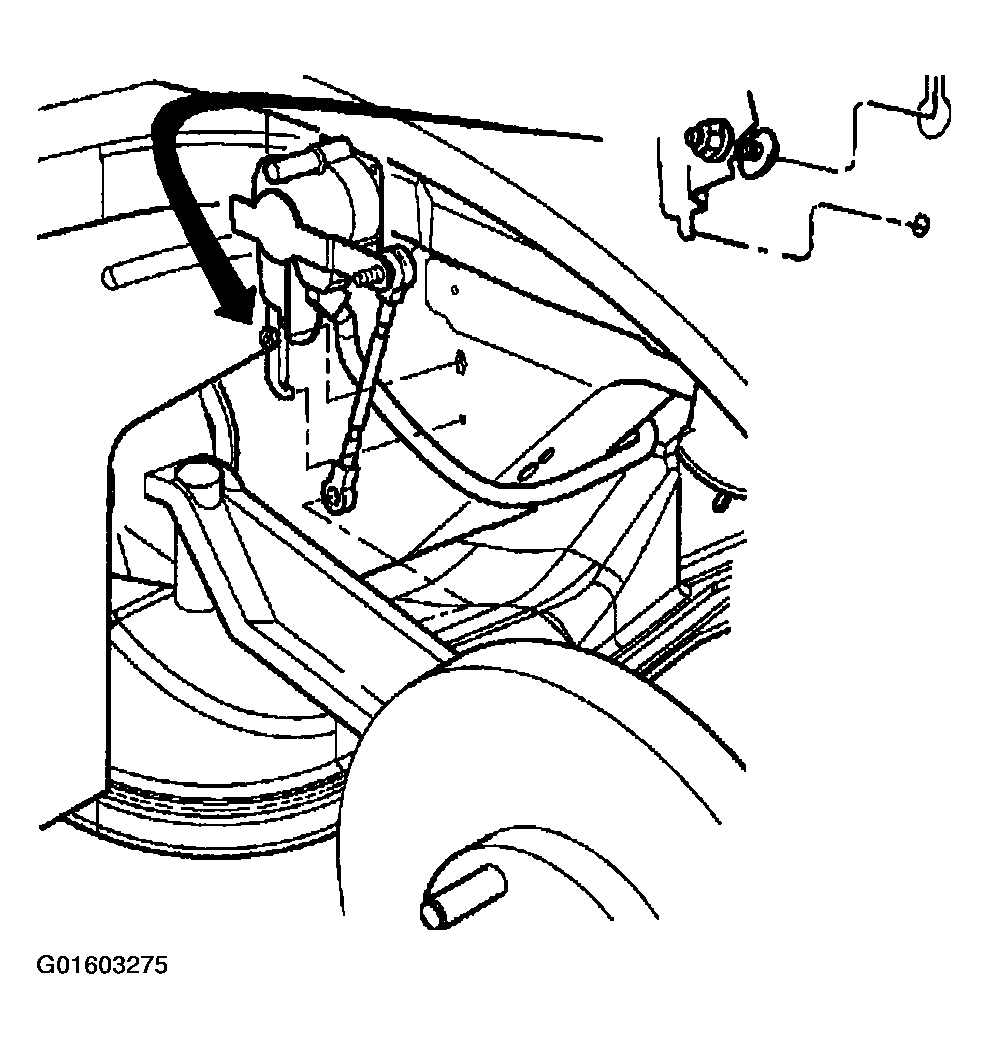

    5. Fig 1: Installing Height Sensor Connector
    G01603275Courtesy of GENERAL MOTORS CORP.
  5. Connect the height sensor connector.
  6. Install the wheel on the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  7. Lower the vehicle. Refer to LIFTING & JACKING VEHICLE .
