Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the wheel from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Disconnect the height sensor connector.

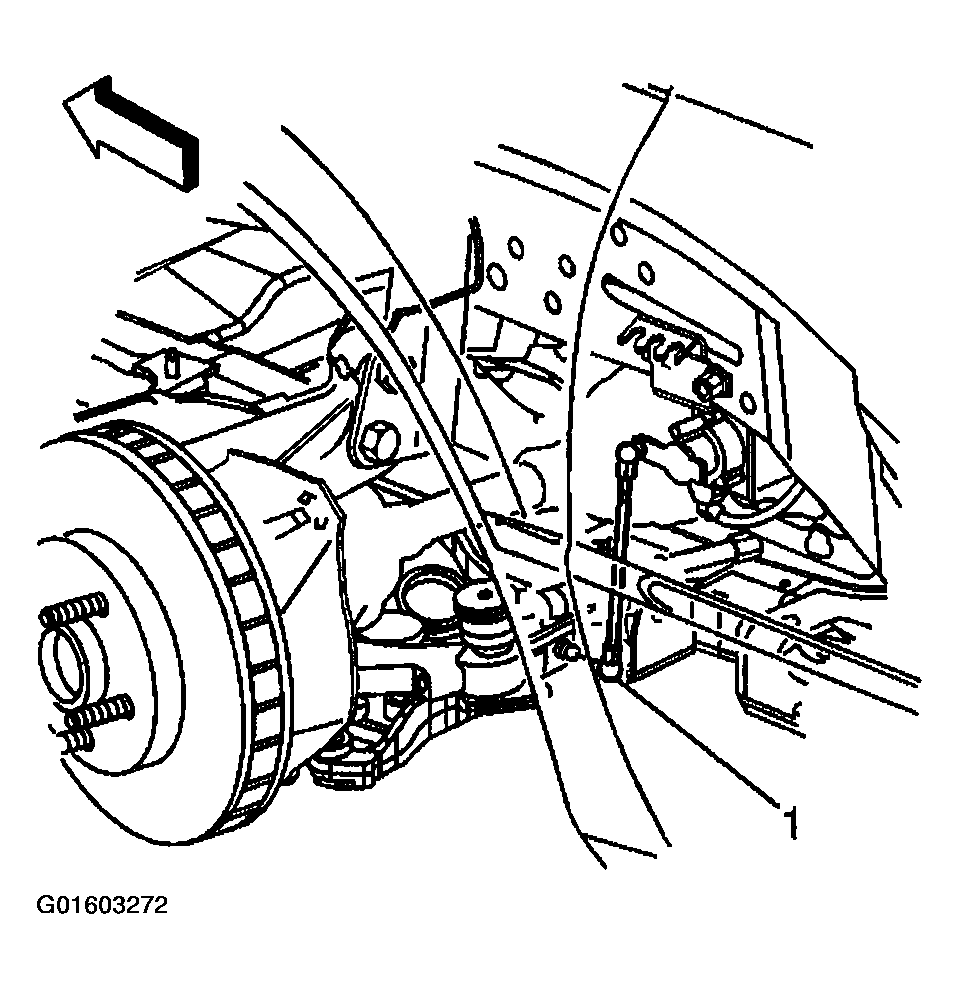

    4. Fig 1: Separating Sensor Link & Ball Stud
    G01603272Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the sensor link from the ball stud (1).
  5. Loosen the sensor mounting nut.
  6. Remove the sensor from the vehicle.
