Installation Procedure

  1. Insert head of the sensor mounting stud into the key hole.
    NOTE: Refer to FASTENER NOTICE .
  2. Tighten the sensor mounting nut.

    Tighten

    Tighten the nut to 9 N.m (80 lb in).

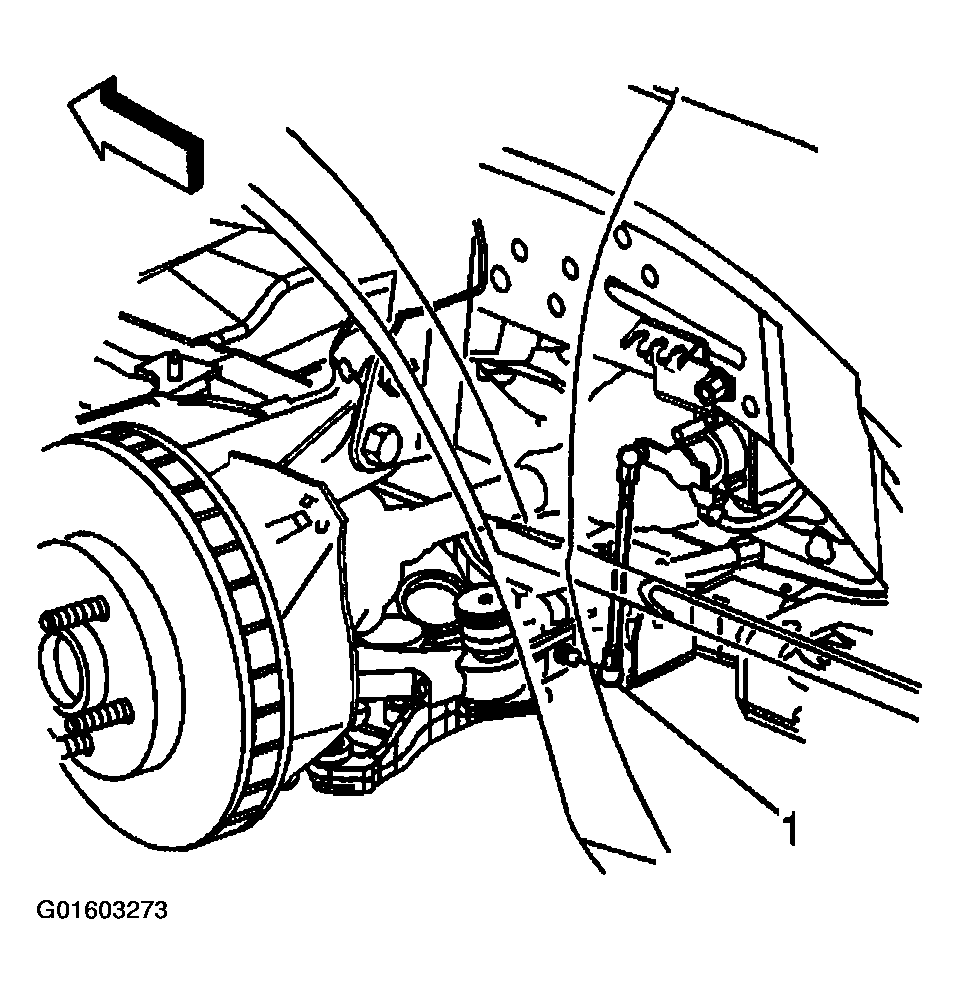

    3. Fig 1: Connecting Sensor Link & Ball Stud
    G01603273Courtesy of GENERAL MOTORS CORP.
  3. Connect the sensor link on the ball stud (1).
  4. Connect the height sensor connector.
  5. Install the wheel on the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  6. Lower the vehicle. Refer to LIFTING & JACKING VEHICLE .
