Removal Procedure

  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
  2. Move the rear seat back insulator aside.

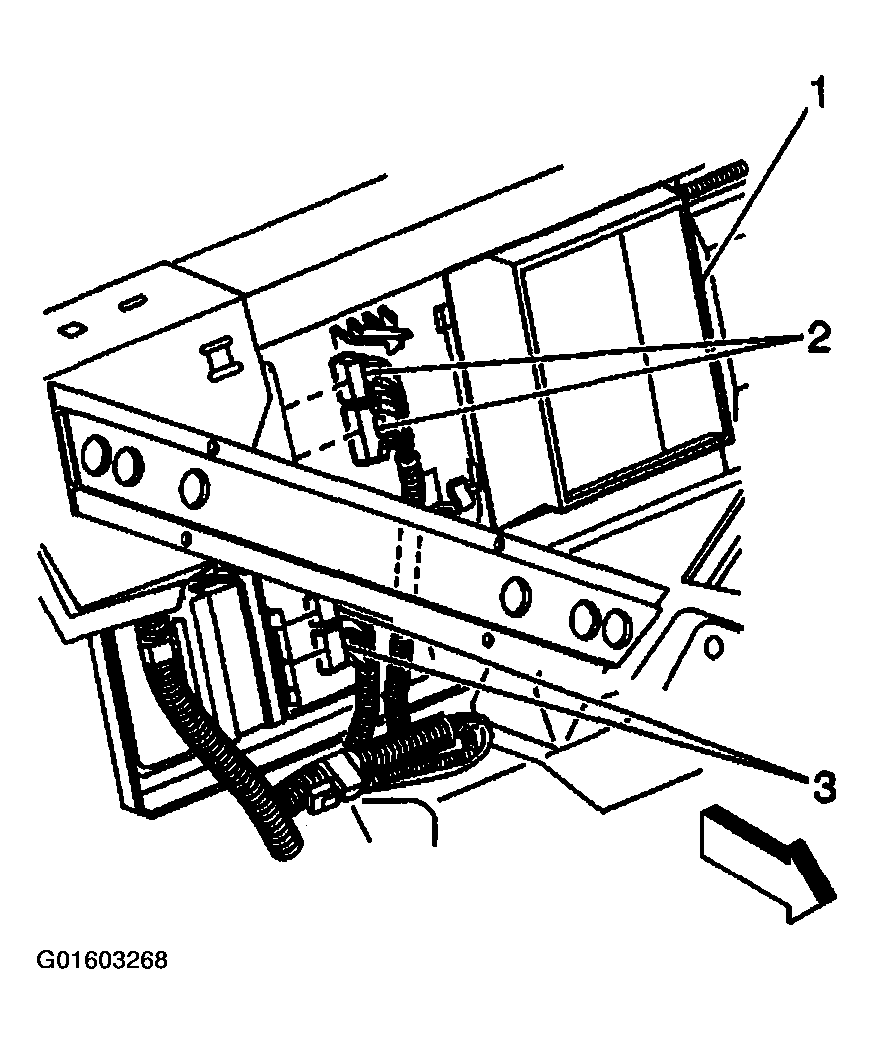

    3. Fig 1: Identifying CVRSS Module
    G01603268Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors from the CVRSS module (2).

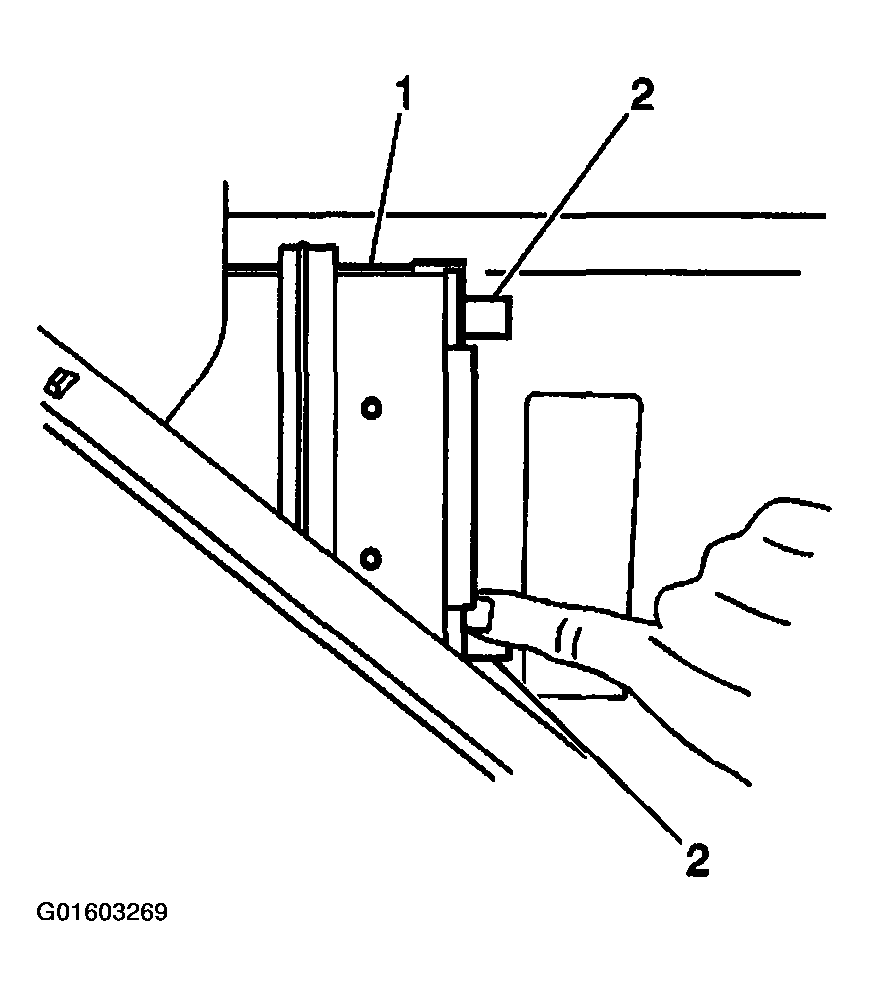

    4. Fig 2: Identifying CVRSS Module & Locking Tabs
    G01603269Courtesy of GENERAL MOTORS CORP.
  4. Depress inward on the locking tabs (2).
  5. With the locking tabs (2) depressed, slide the CVRSS module (1) towards the center of the vehicle.
  6. Remove the module (1) from the bracket.
