Installation Procedure

  1. Install the CVRSS module (1) to the bracket.
  2. Slide the CVRSS module (1) away from the center of the vehicle until it is fully engaged.

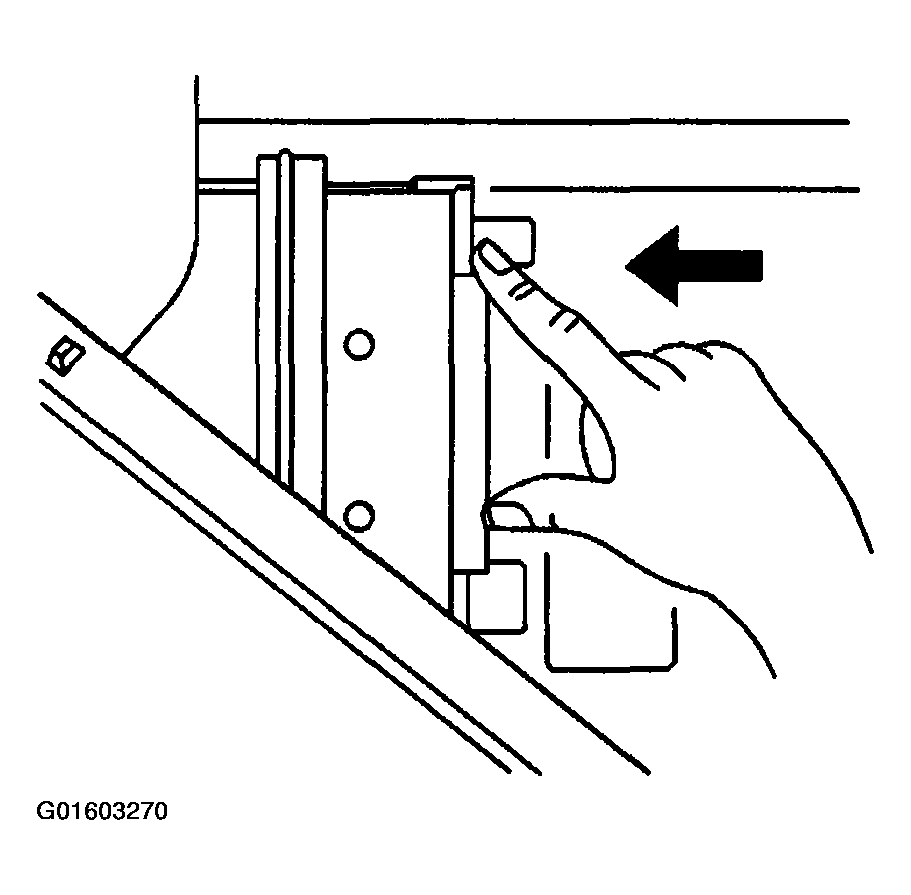

    Fig 1: Sliding CVRSS Module Away from Center of Vehicle
    G01603270Courtesy of GENERAL MOTORS CORP.
  3. Connect the CVRSS module electrical connector (2).
  4. Reposition the rear seat back insulator.
  5. Install the rear seat back.
  6. Perform the CVRSS module Calibration. Refer to Electronic Suspension Control Module Calibration .

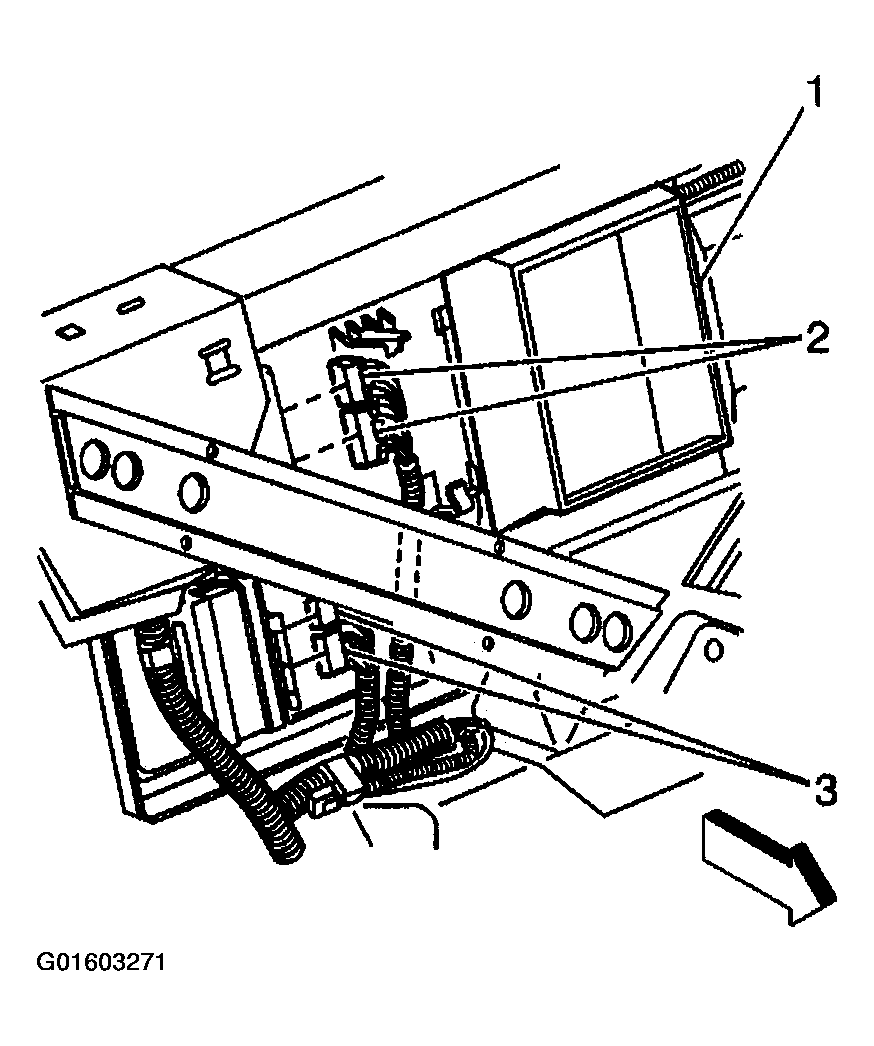

Fig 2: Identifying CVRSS Module Electrical Connector
G01603271Courtesy of GENERAL MOTORS CORP.
