Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step checks to see if the problem has cleared after the ESC module has been calibrated.

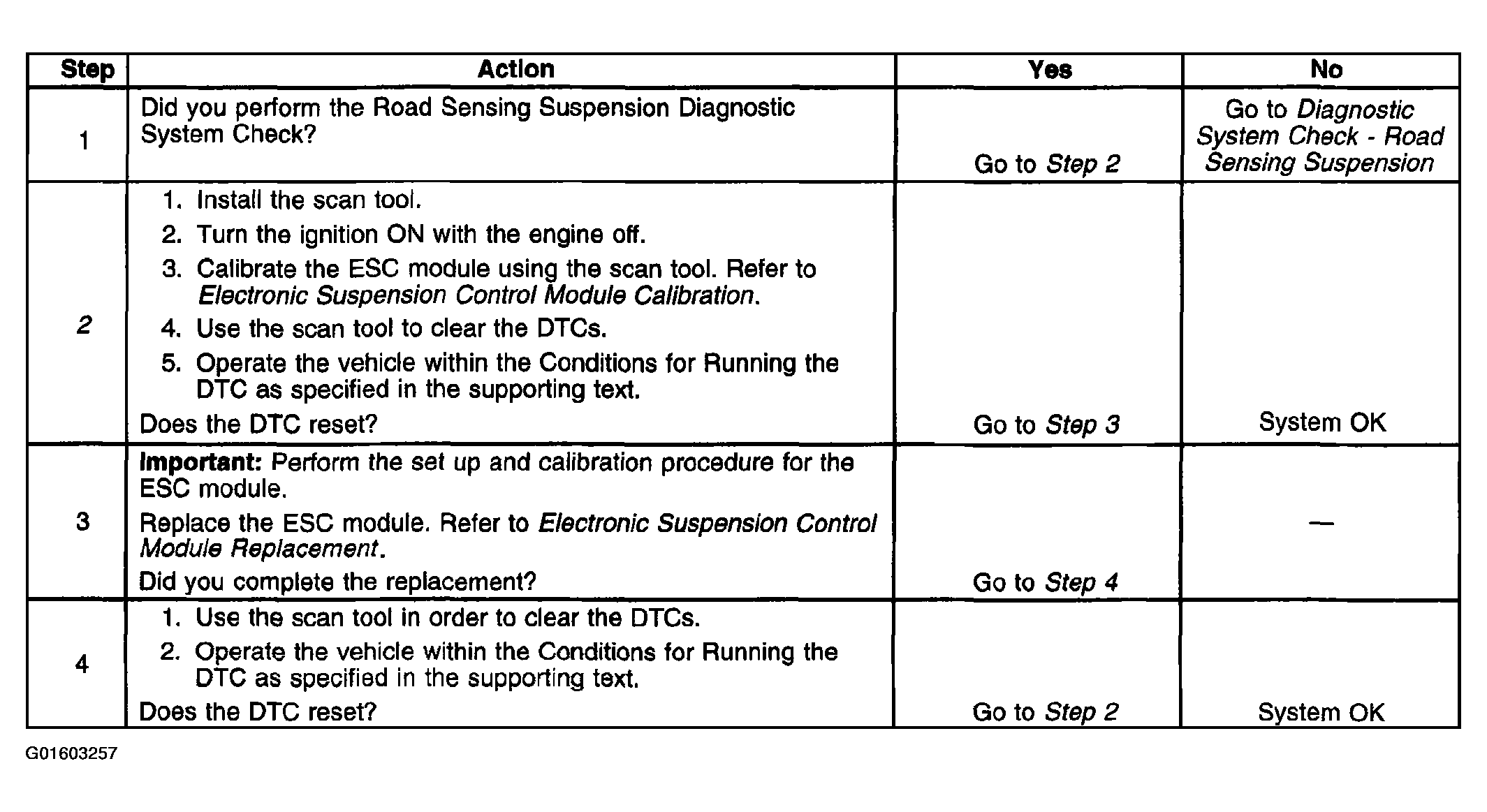

Fig 1: DTC C0563
G01603257Courtesy of GENERAL MOTORS CORP.
