Suspension Controls Connector End Views

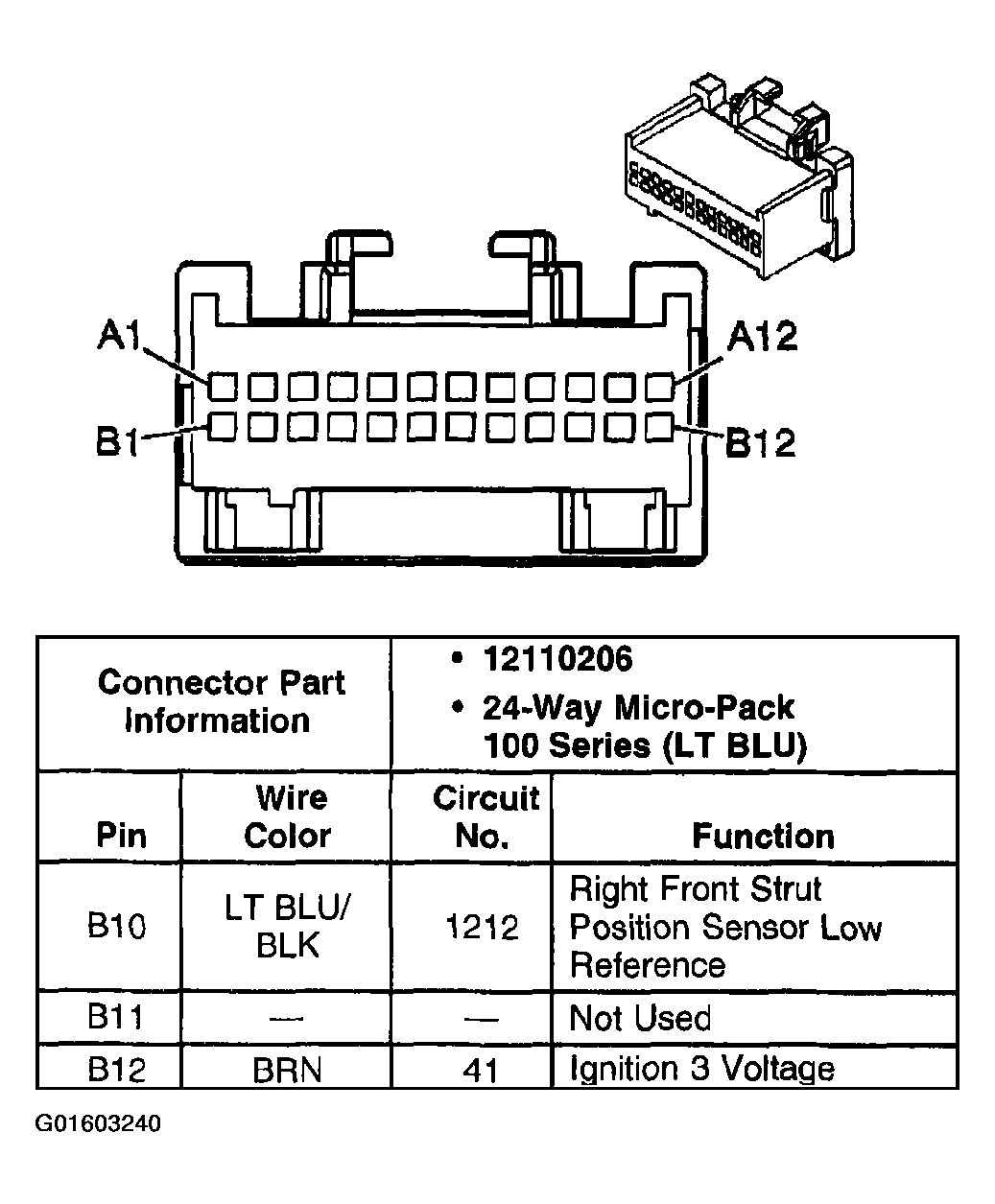

Fig 1: Electronic Suspension Control Module C1 Component View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

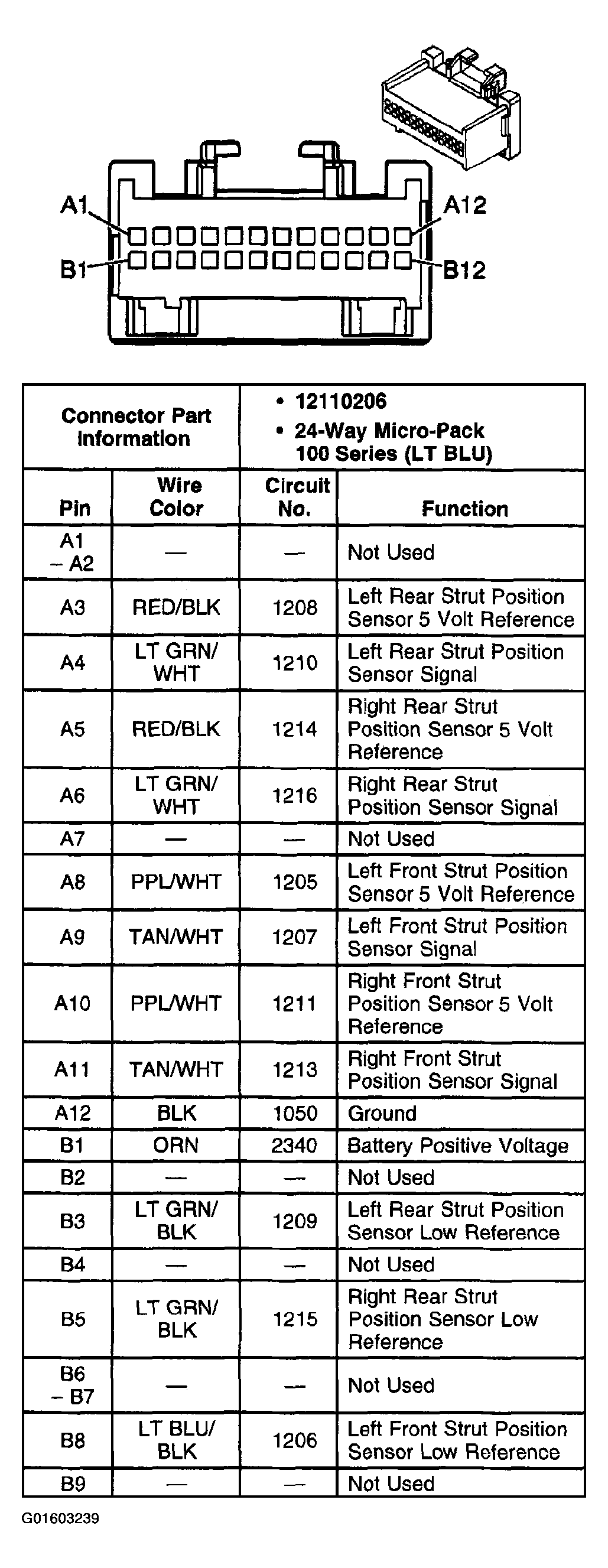

Fig 2: Electronic Suspension Control Module C1 Component View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

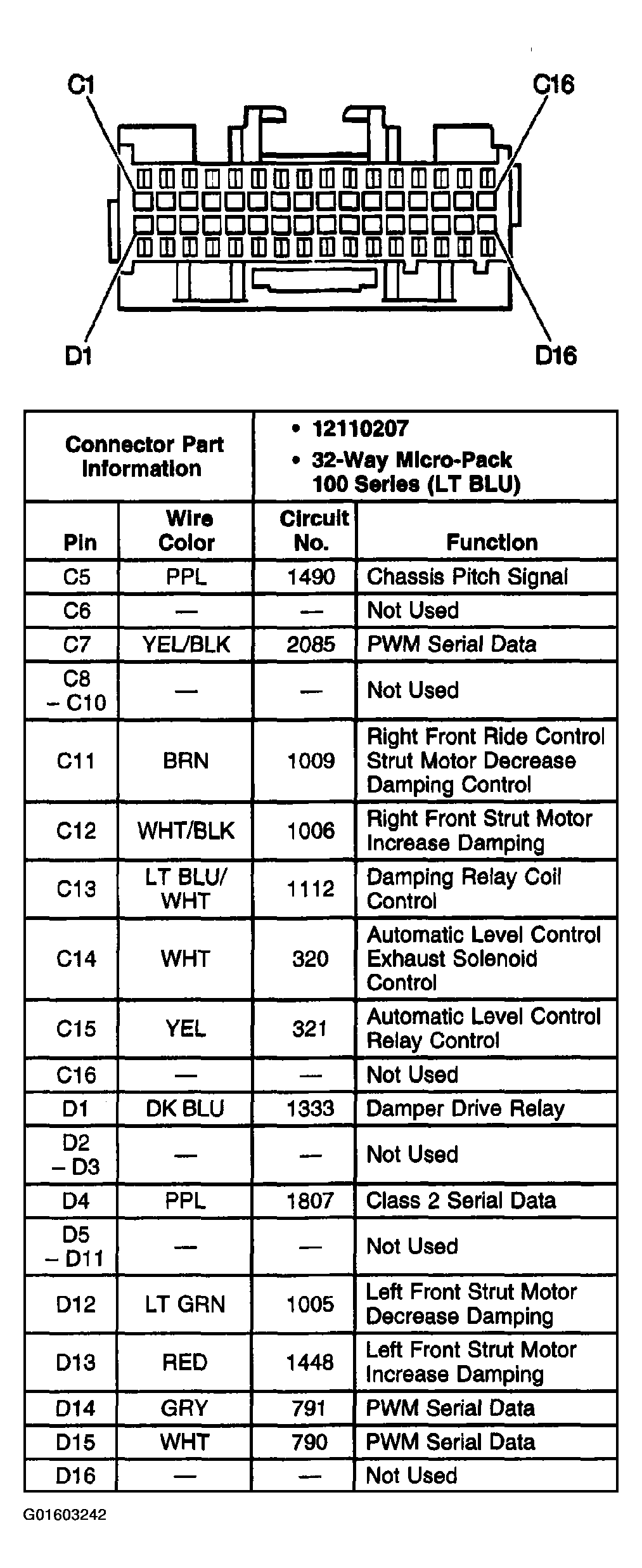

Fig 3: Electronic Suspension Control Module C2 Component View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

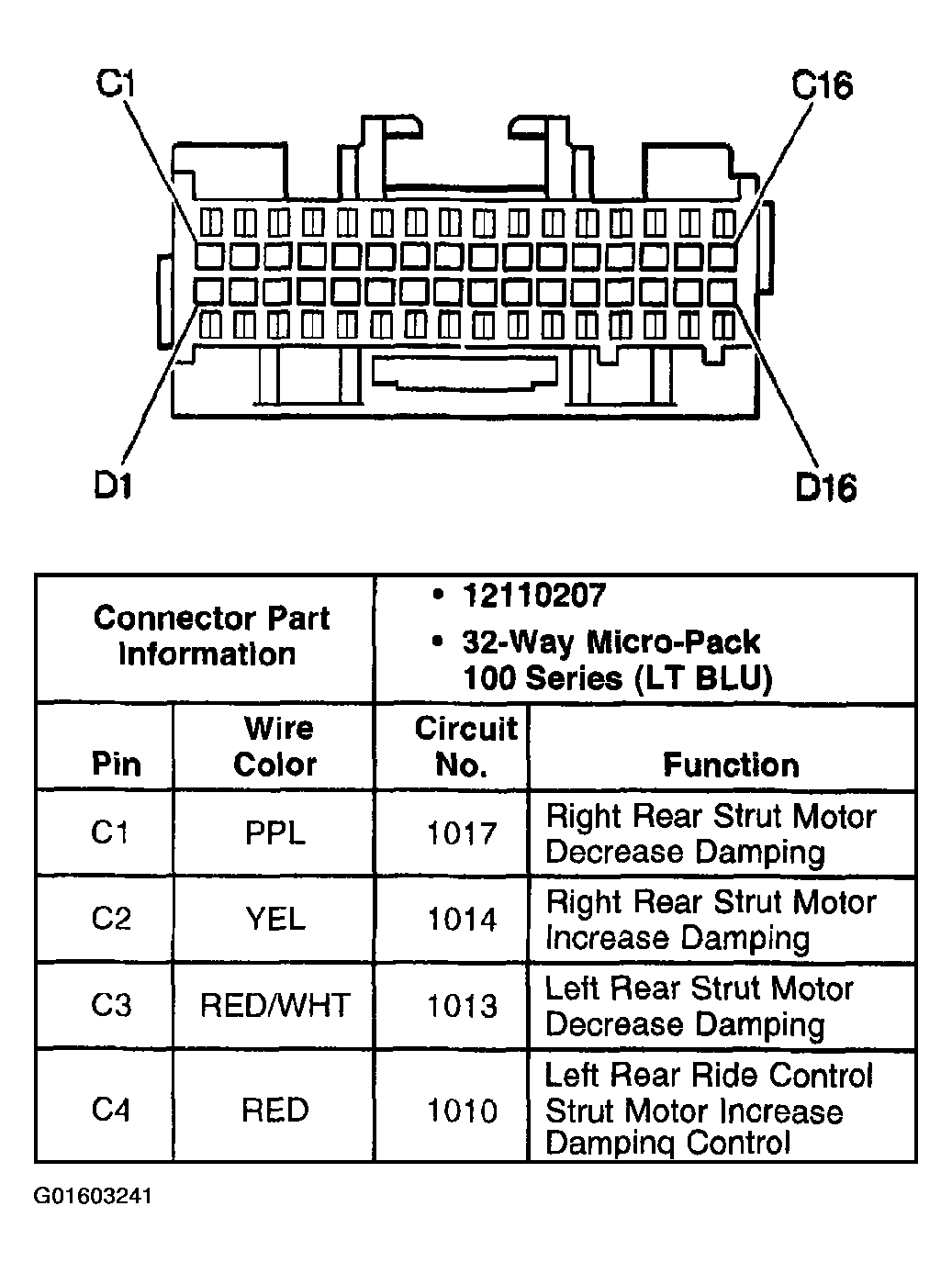

Fig 4: Electronic Suspension Control Module C2 Component View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

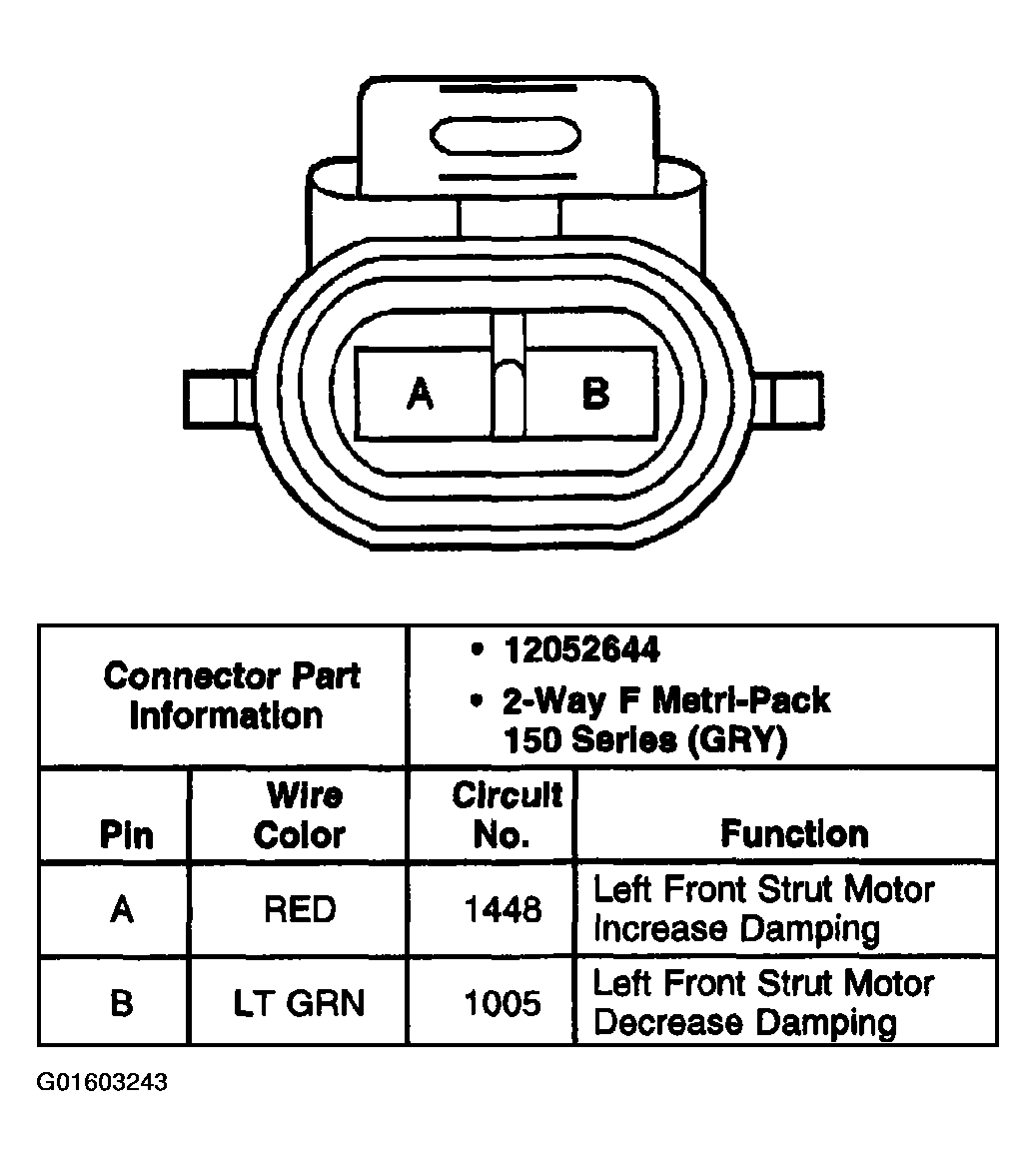

Fig 5: Strut Actuator - LF Component View

Courtesy of GENERAL MOTORS CORP.
