Suspension Controls Component Views

Fig 1: Right Rear of Vehicle, in Rear Strut Component View
G01603236Courtesy of GENERAL MOTORS CORP.

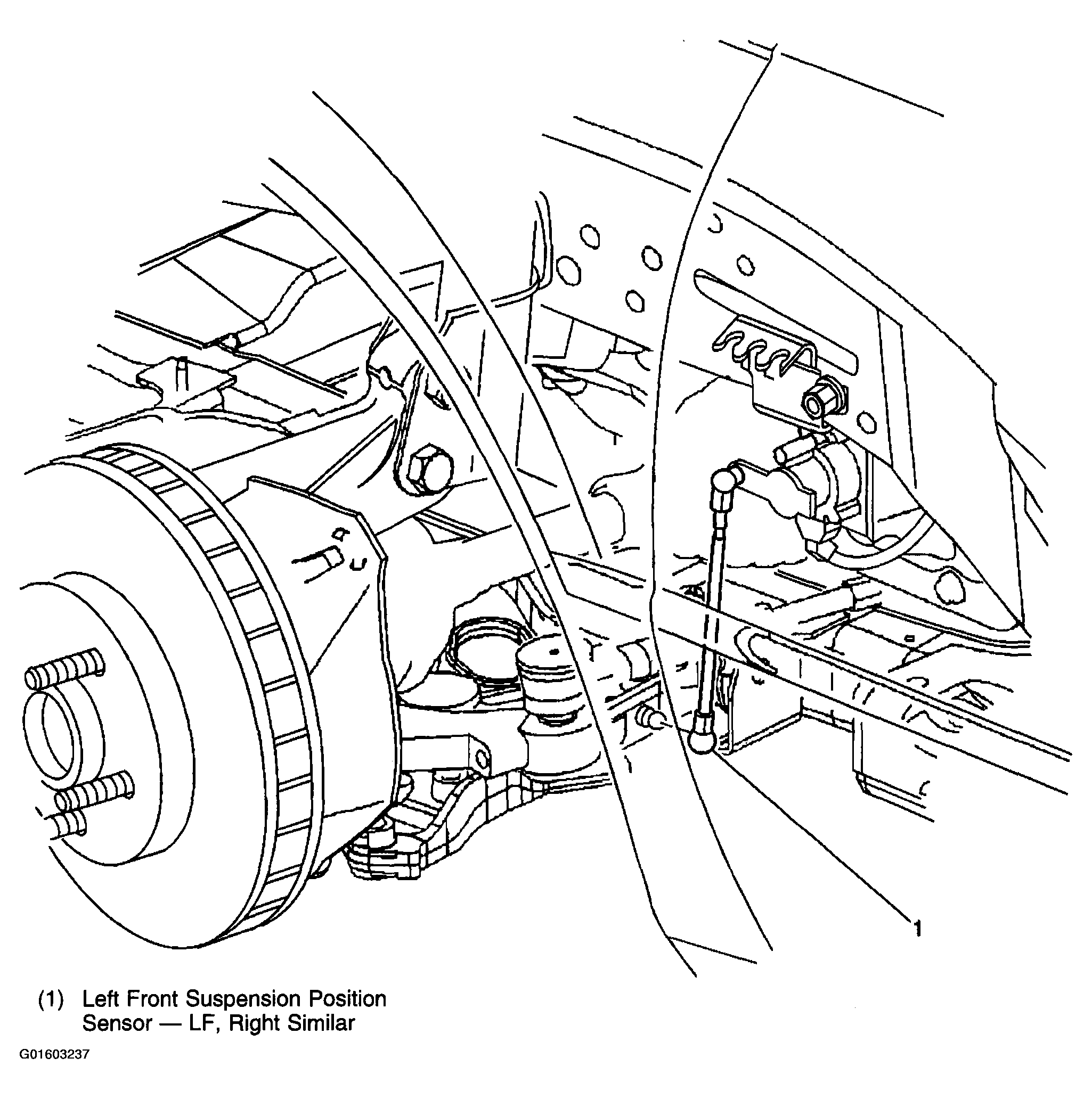

Fig 2: Left Front of Vehicle, Near Strut Component View
G01603237Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Front of Vehicle, Near Strut Component View
G01603238Courtesy of GENERAL MOTORS CORP.
