Strut Actuator - LR

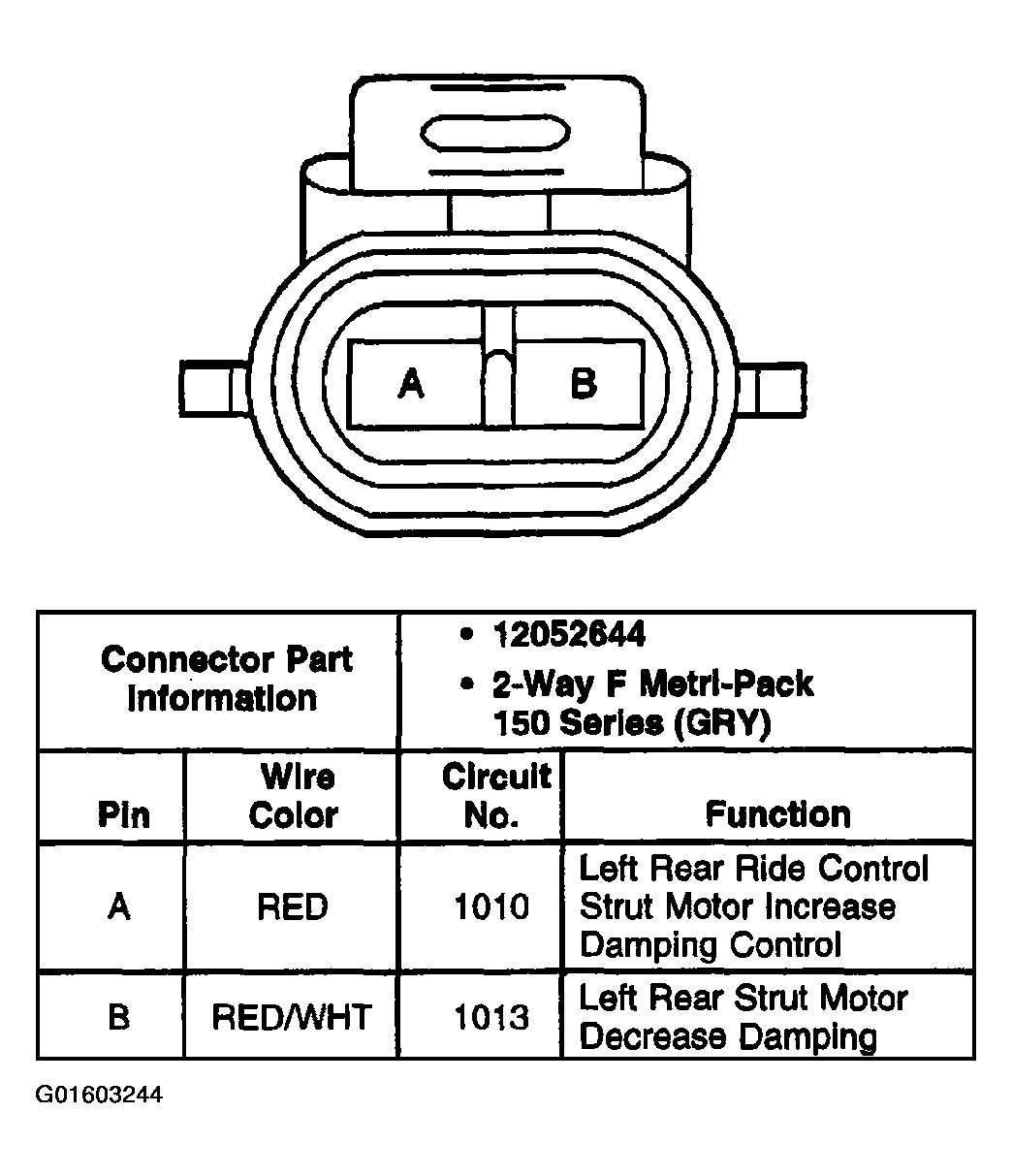

Fig 1: Strut Actuator - LR
G01603244Courtesy of GENERAL MOTORS CORP.

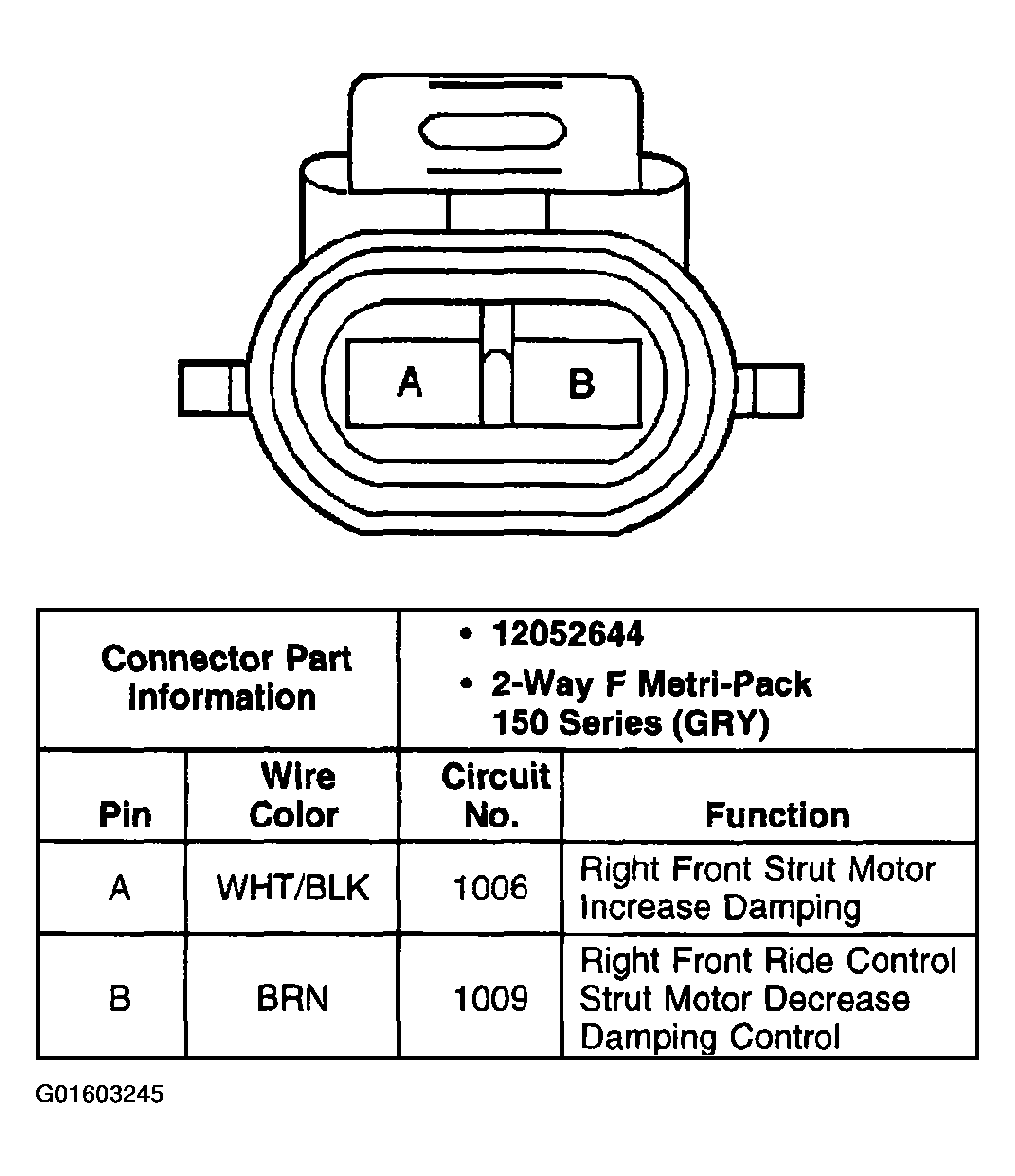

Fig 2: Strut Actuator - RF
G01603245Courtesy of GENERAL MOTORS CORP.

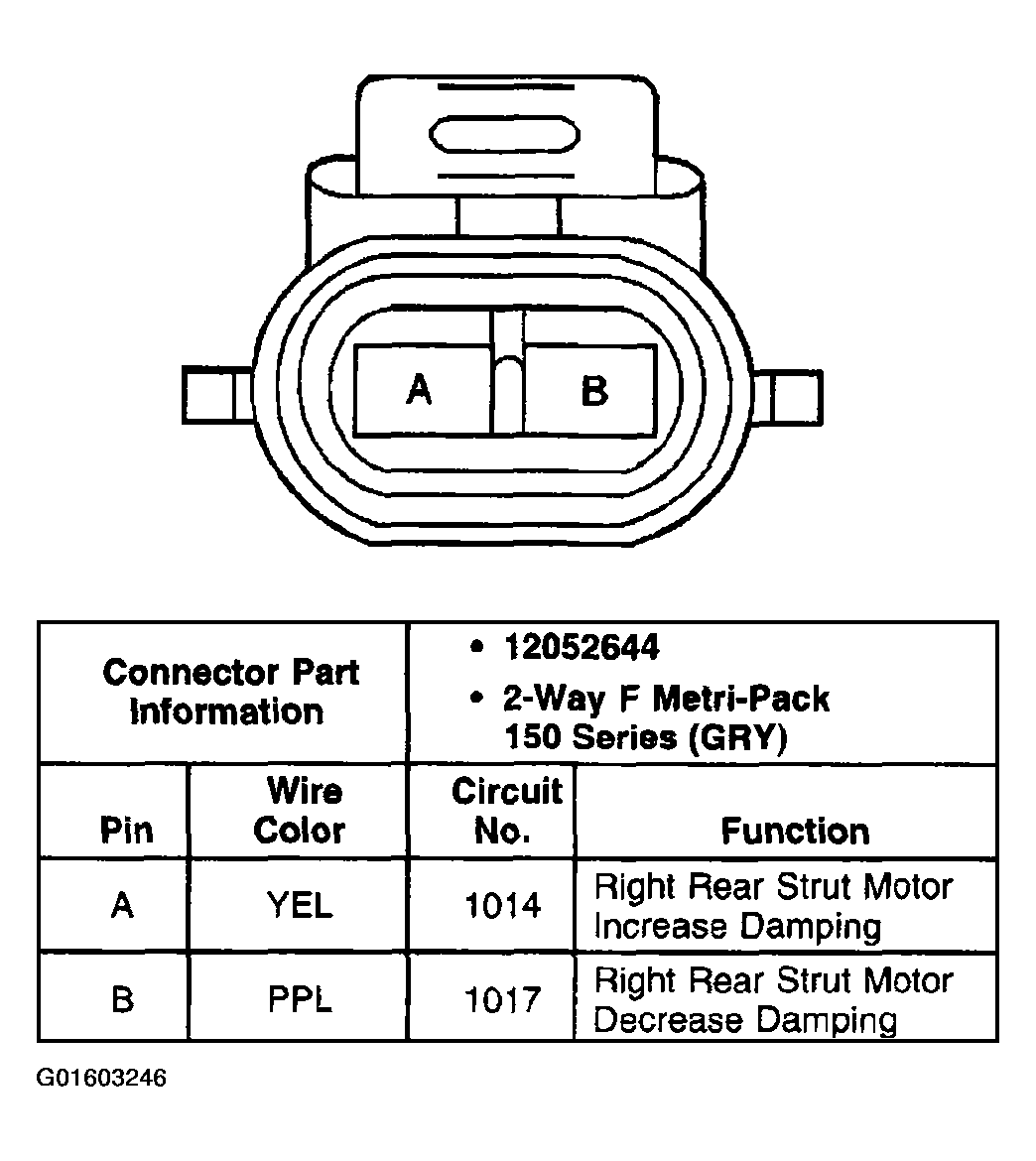

Fig 3: Strut Actuator - RR
G01603246Courtesy of GENERAL MOTORS CORP.

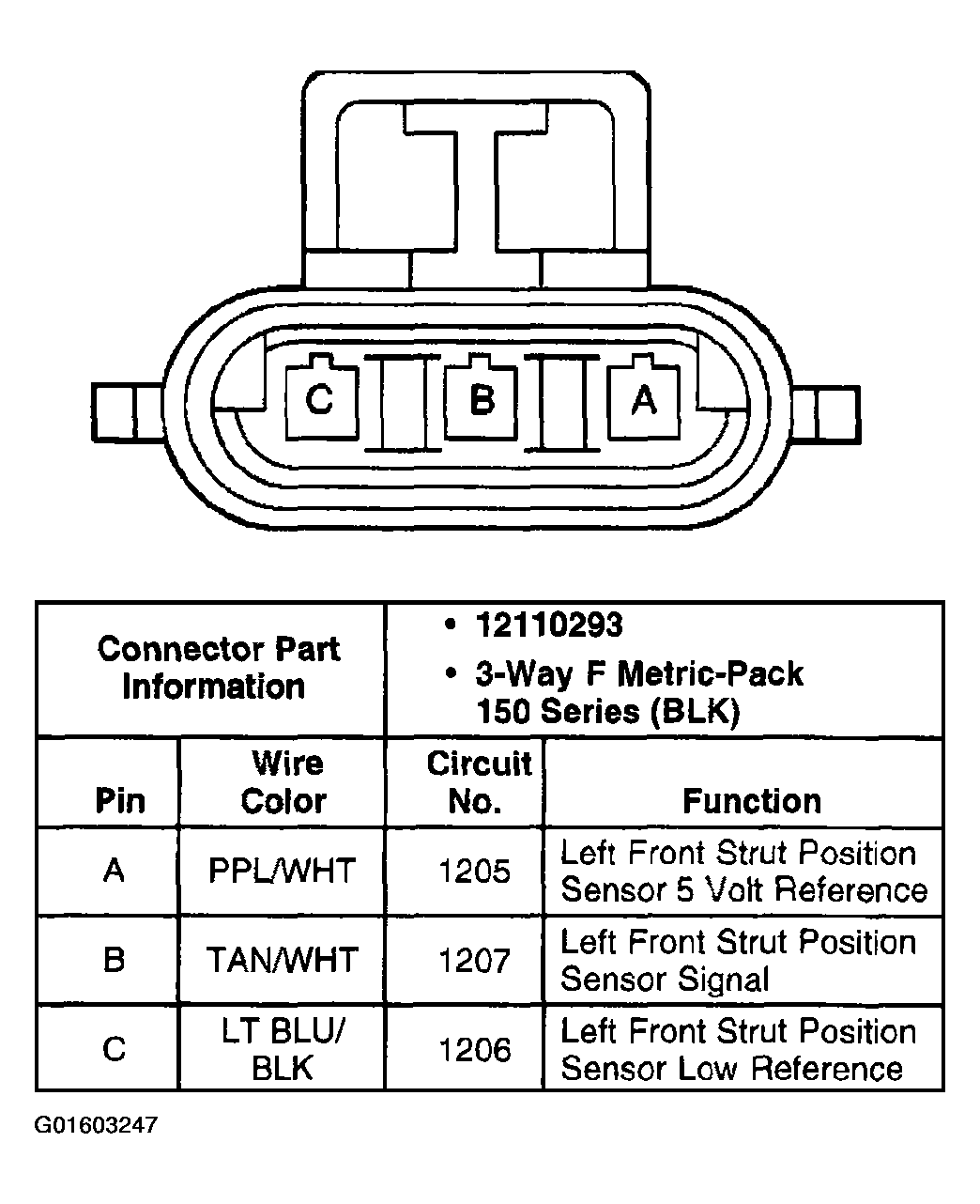

Fig 4: Suspension Position Sensor - LF
G01603247Courtesy of GENERAL MOTORS CORP.

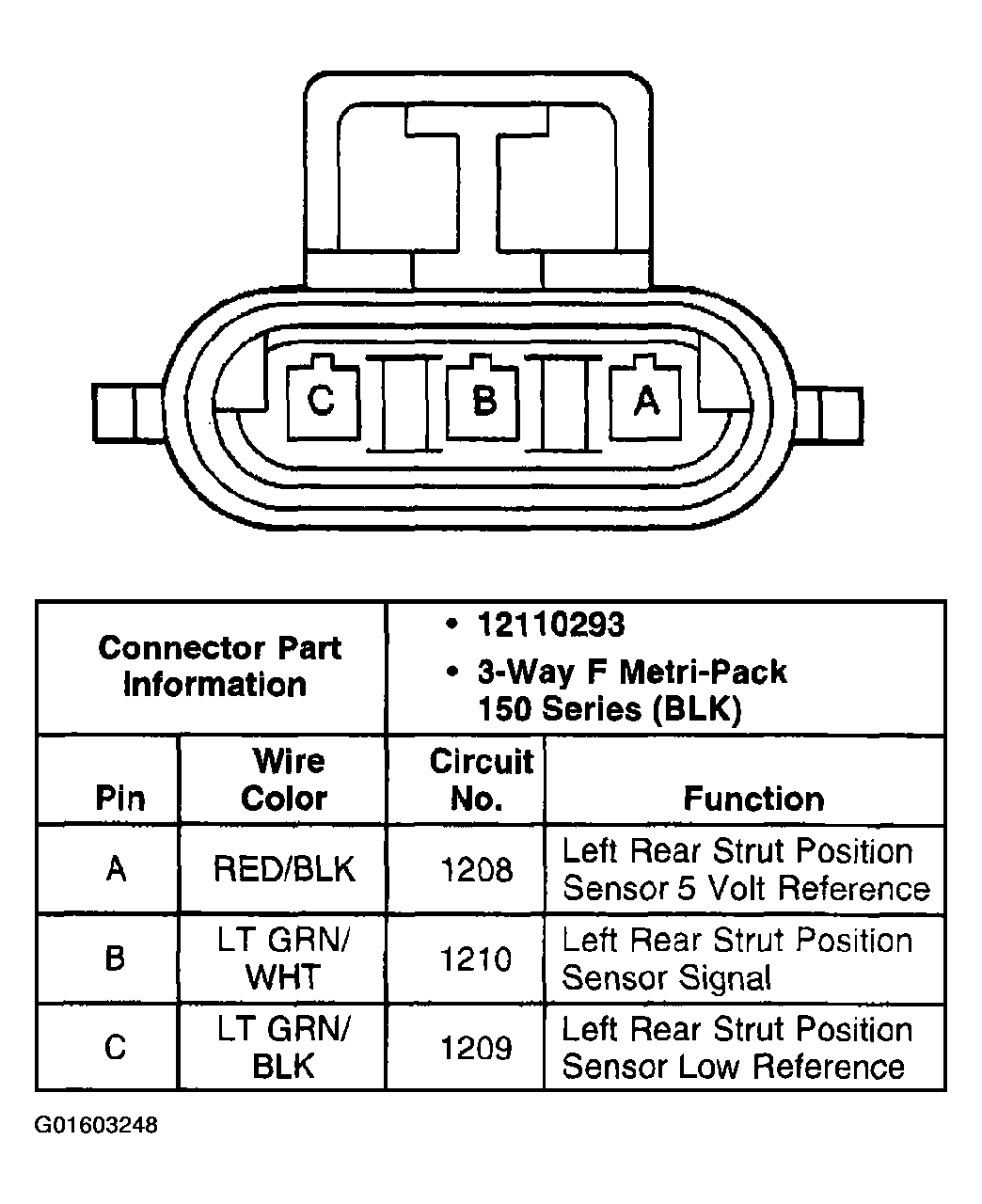

Fig 5: Suspension Position Sensor (w/F45) - LR
G01603248Courtesy of GENERAL MOTORS CORP.

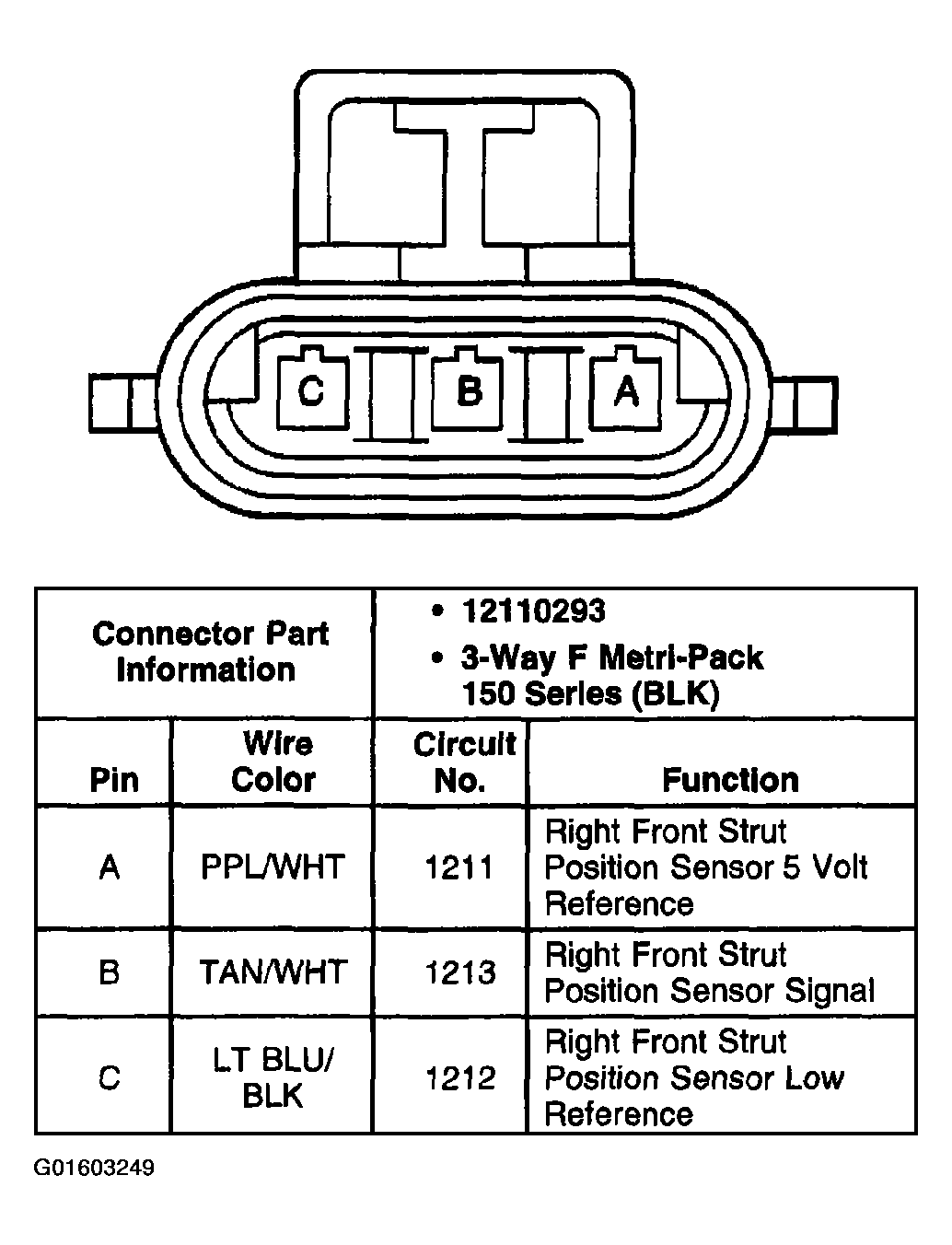

Fig 6: Suspension Position Sensor - RF
G01603249Courtesy of GENERAL MOTORS CORP.
