Low Engine Coolant Indicator Always On

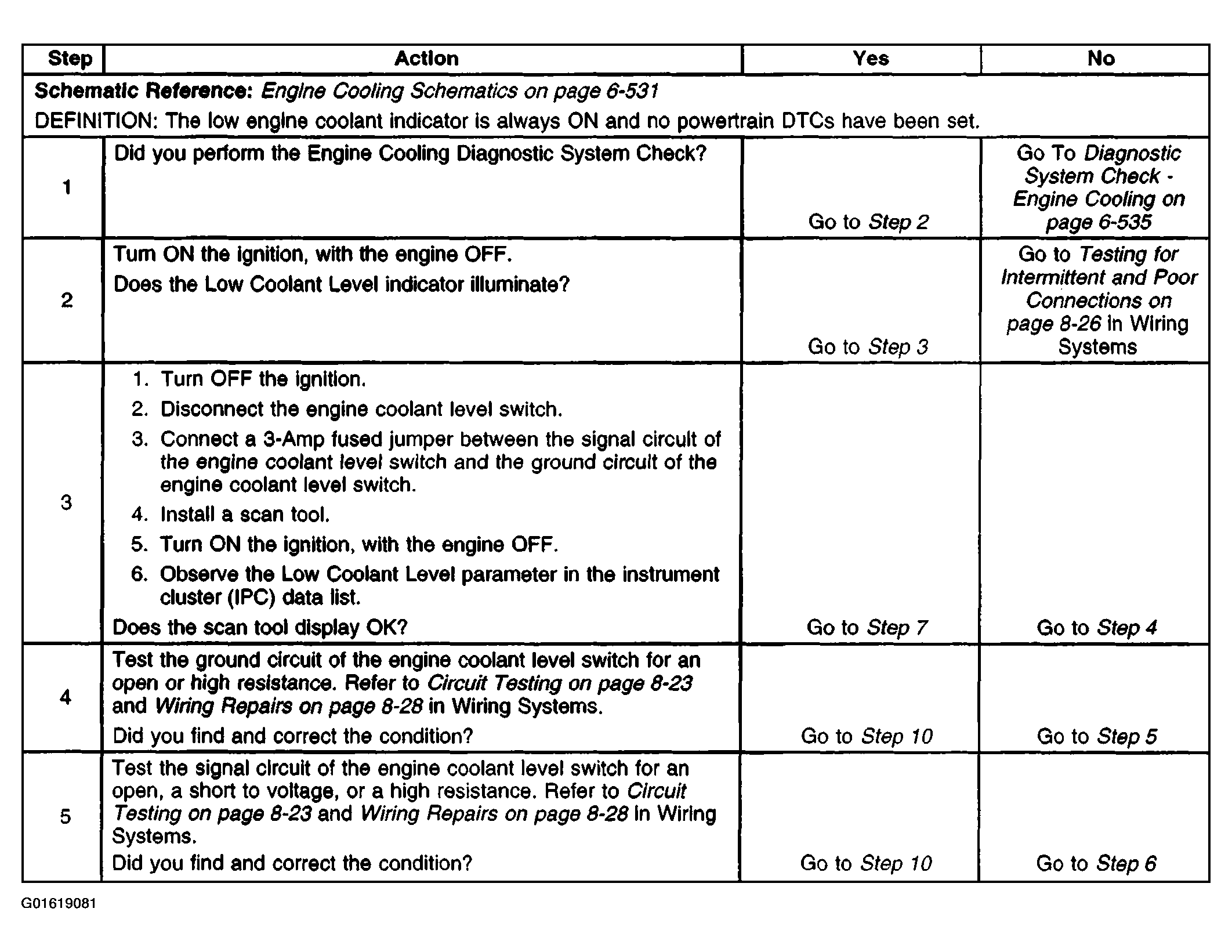

Fig 1: Low Engine Coolant Indicator Always On (1 of 2)

Courtesy of GENERAL MOTORS CORP.

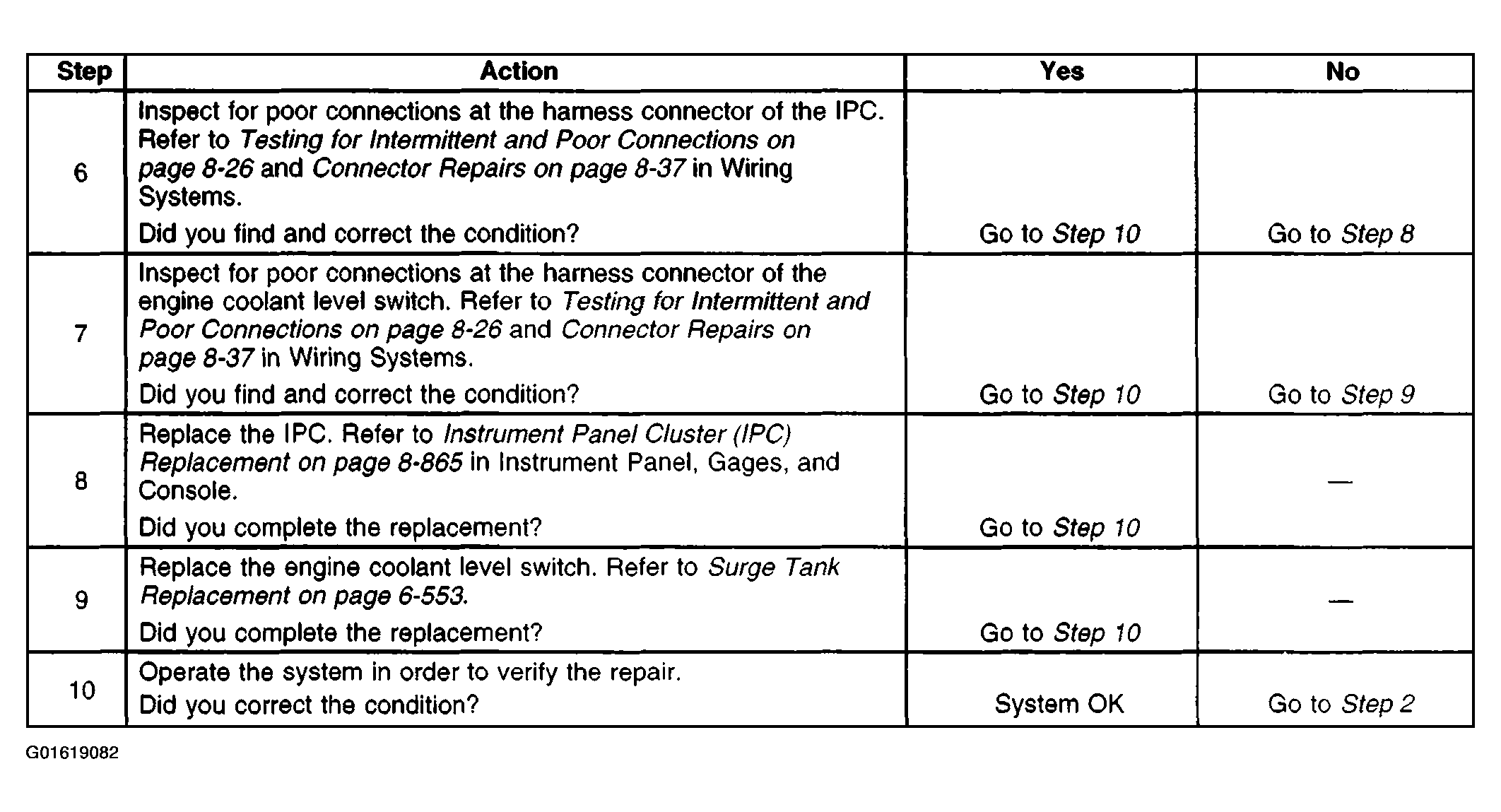

Fig 2: Low Engine Coolant Indicator Always On (2 of 2)

Courtesy of GENERAL MOTORS CORP.
