Door Ajar Indicator Malfunction
Door Ajar Indicator Malfunction

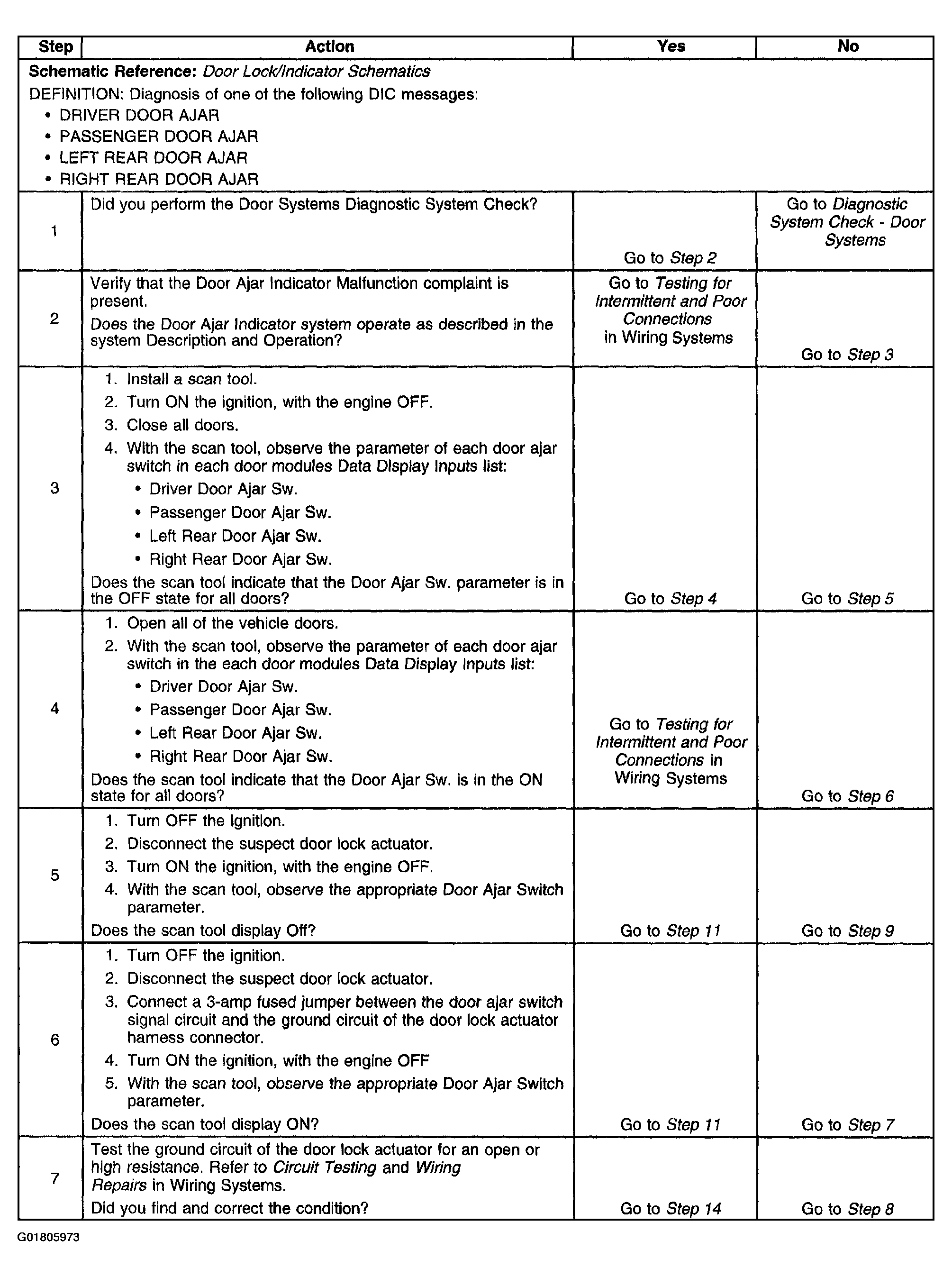

Fig 1: Door Ajar Indicator Malfunction (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

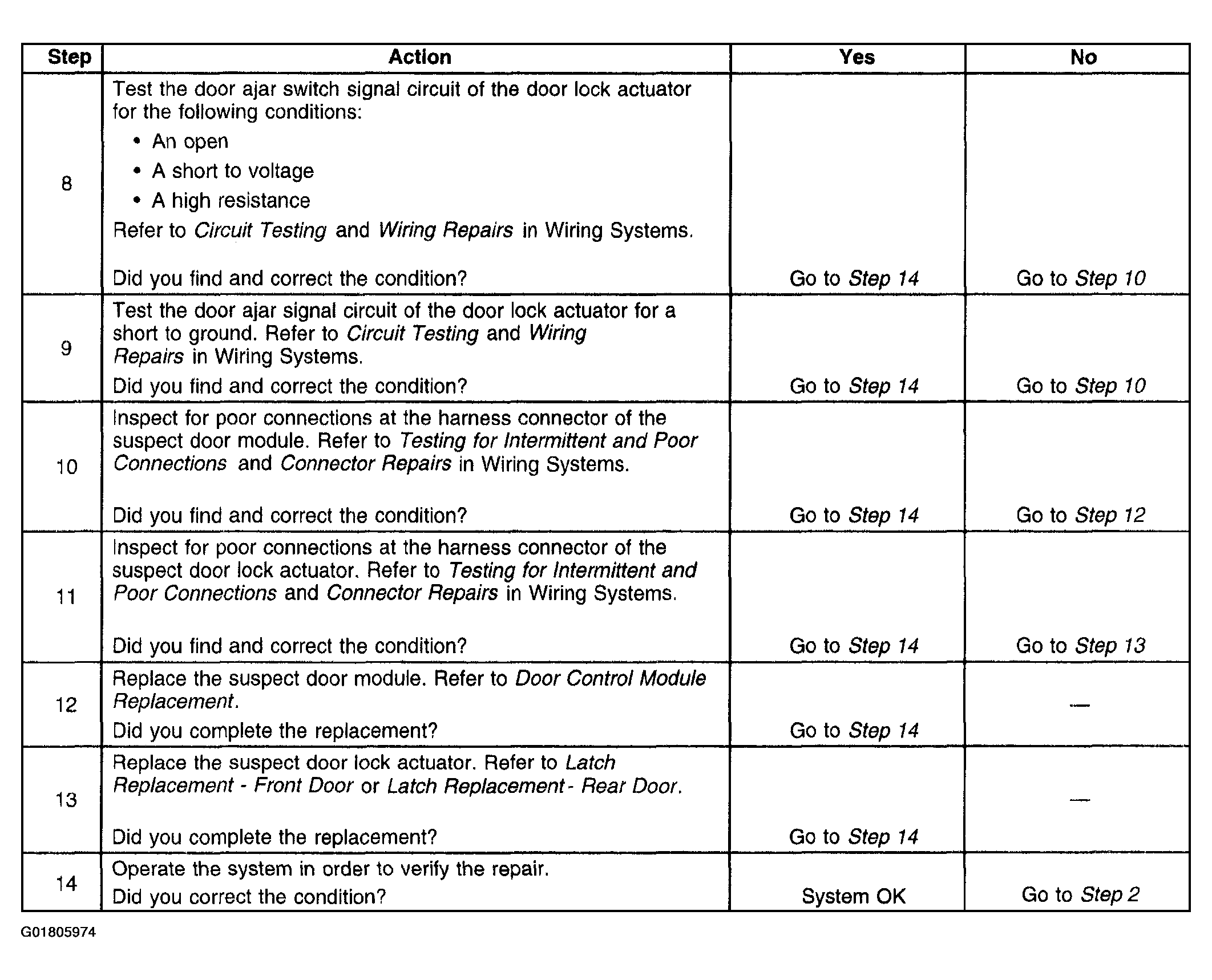

Fig 2: Door Ajar Indicator Malfunction (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
