Turn Signal Lamps and/or Indicators Inoperative

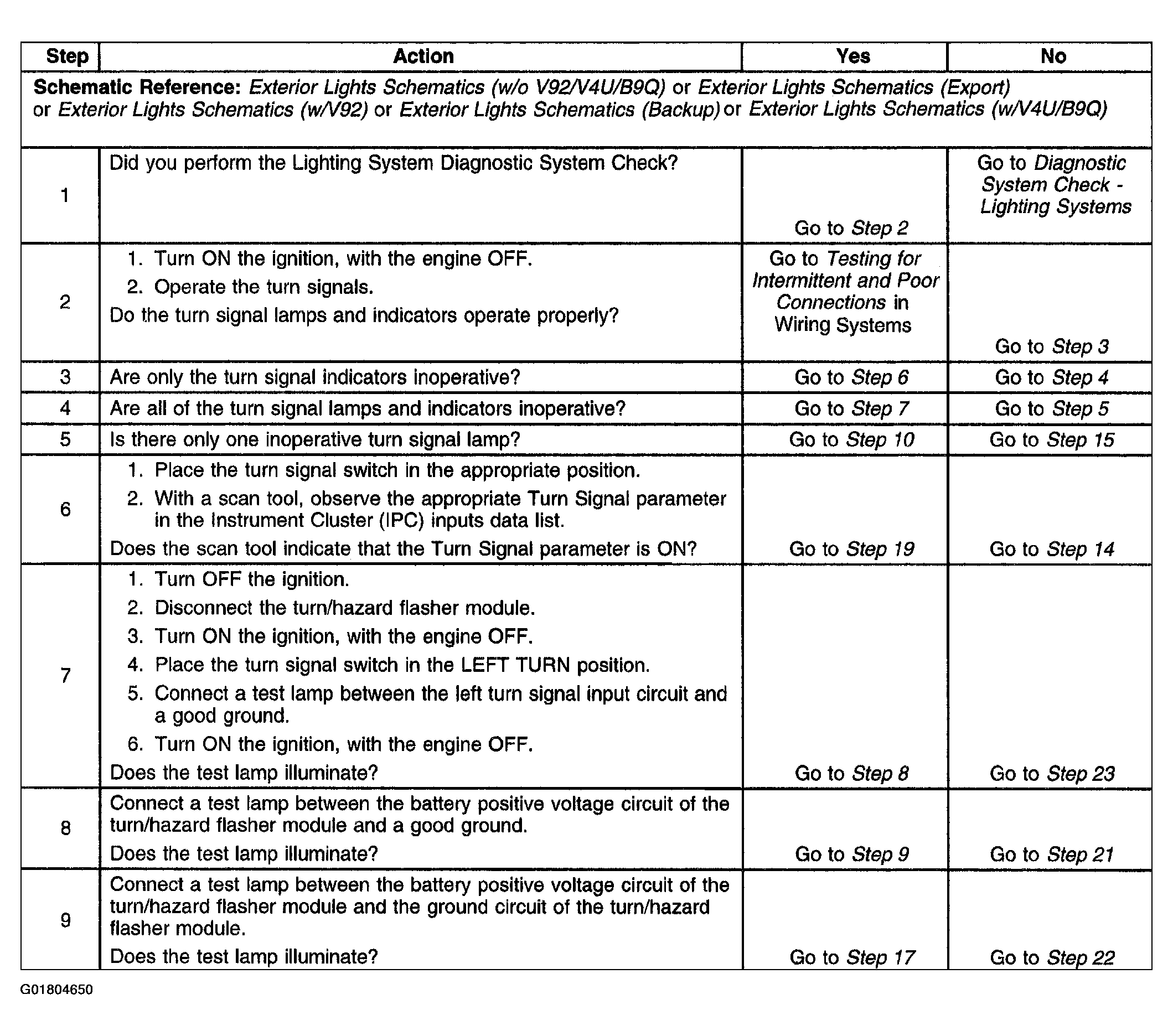

Fig 1: Turn Signal Lamps and/or Indicators Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

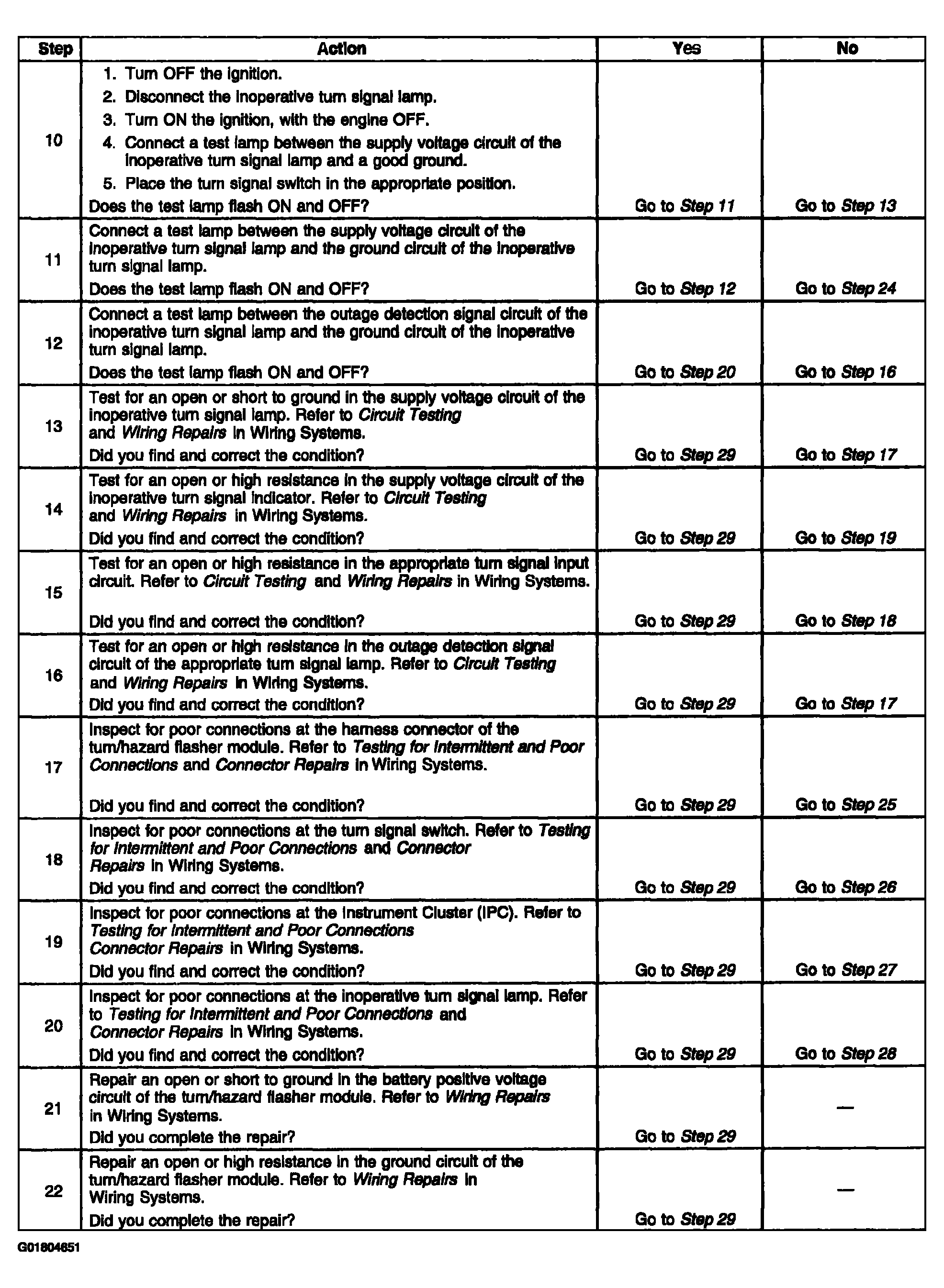

Fig 2: Turn Signal Lamps and/or Indicators Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

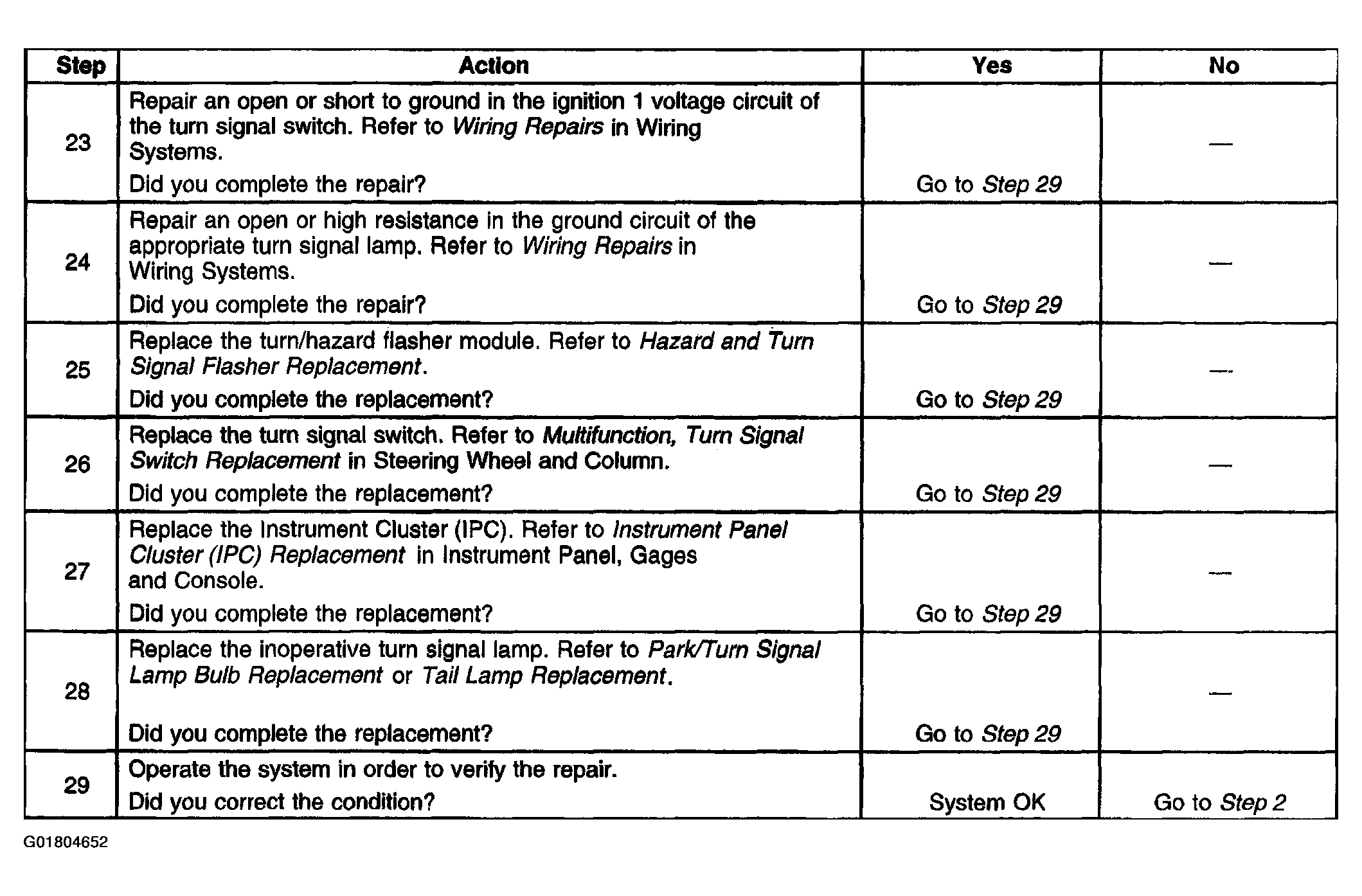

Fig 3: Turn Signal Lamps and/or Indicators Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
