Installation Procedure

  1. Connect the electrical connector to the hazard switch.
  2. Install the right accessory trim panel (1).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the trim panel screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the IP cluster trim panel. Refer to Trim Panel Replacement - IP Cluster .
  5. Install the IP storage compartment. Refer to Storage Compartment Replacement - IP .
  6. Install the IP upper trim pad. Refer to Trim Pad Replacement - IP Upper .

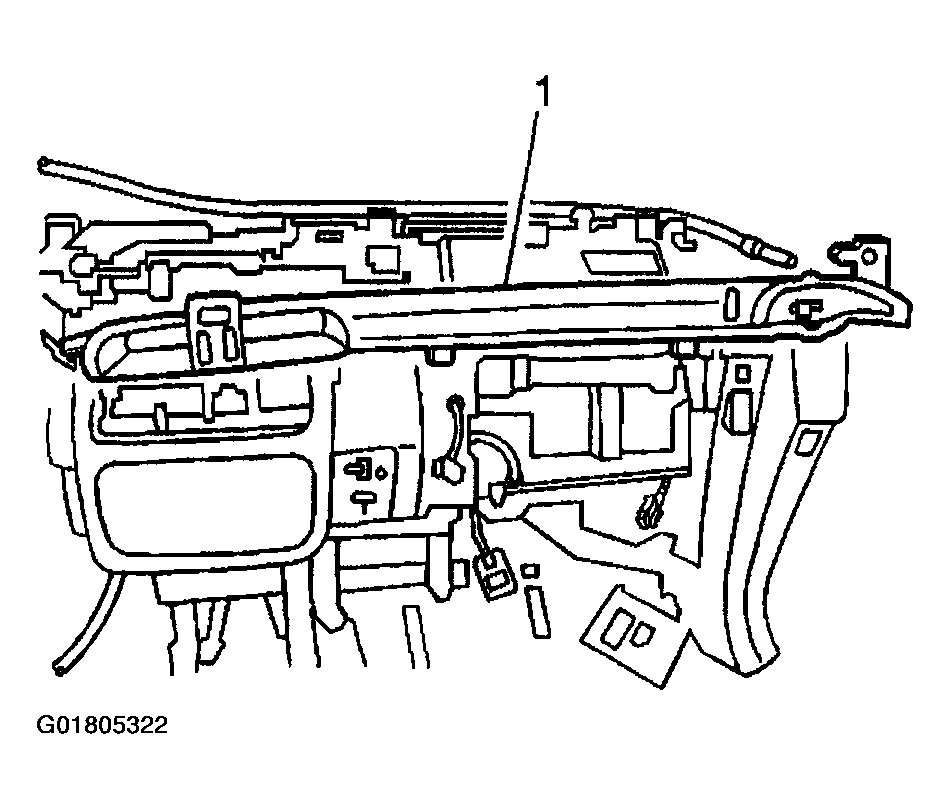

    Fig 1: Installing Right Accessory Trim Panel
    G01805322Courtesy of GENERAL MOTORS CORP.
