Installation Procedure

  1. Align the front edge of the console trim plate (1).

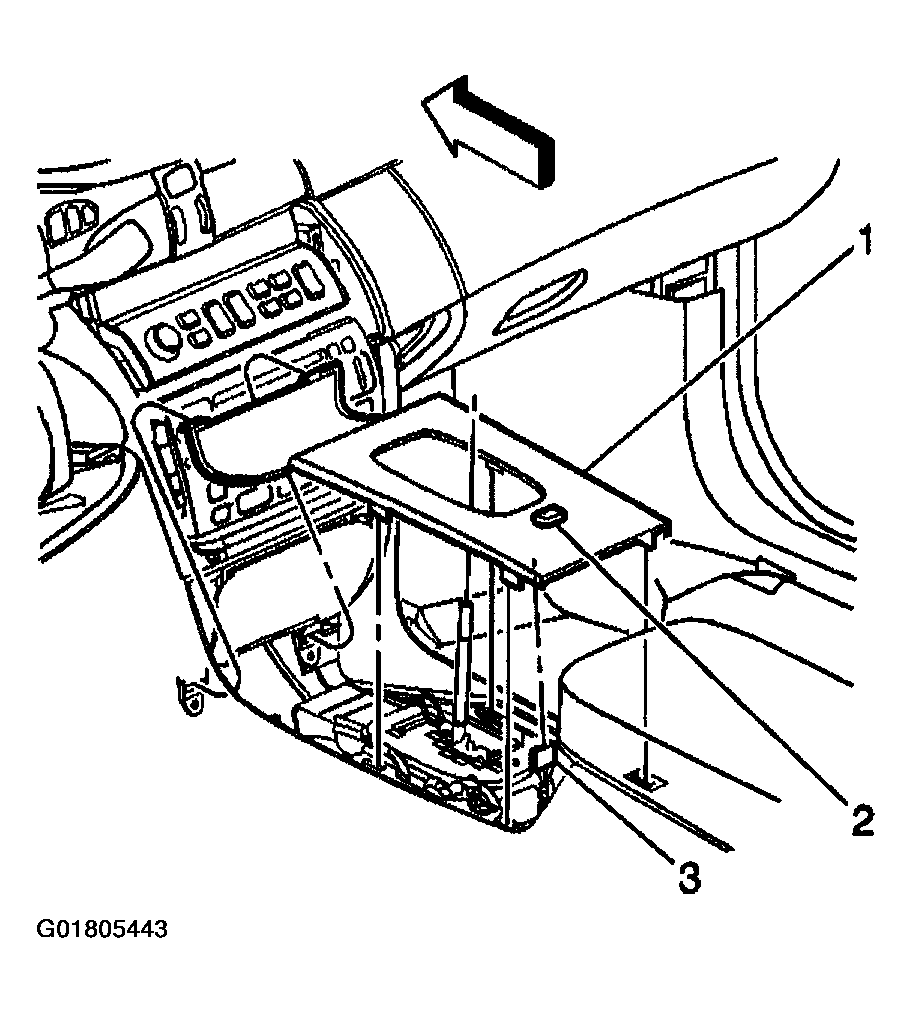

    Fig 1: Aligning Front Edge Of Console Trim Plate
    G01805443Courtesy of GENERAL MOTORS CORP.
  2. Lower the console trim plate into place over the shift handle.
  3. Connect the traction control switch electrical connector.

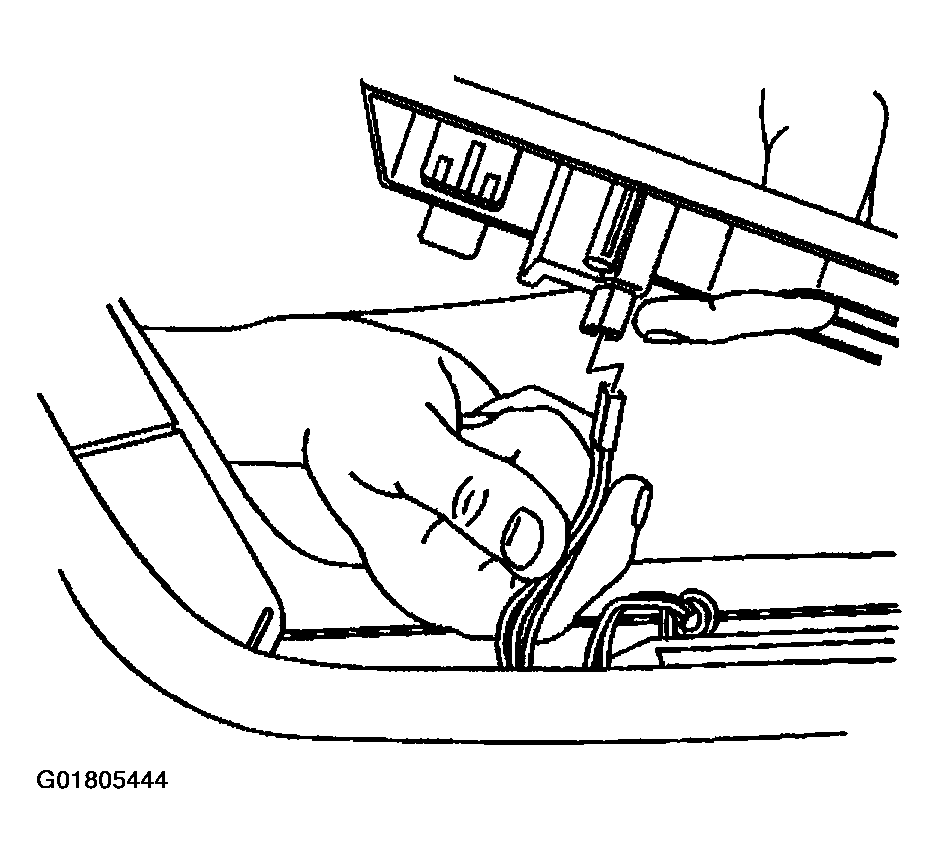

    Fig 2: Connecting Traction Control Switch Electrical Connector
    G01805444Courtesy of GENERAL MOTORS CORP.
  4. Align the front 2 retainer clips and push forward on the console trim plate in order to engage the front clips.

    Important:  Make sure the retainers are aligned properly before attempting to engage the trim plate.

  5. Align the 4 rear trim plate clips with the console and push firmly into to place in order to engage the retainers.

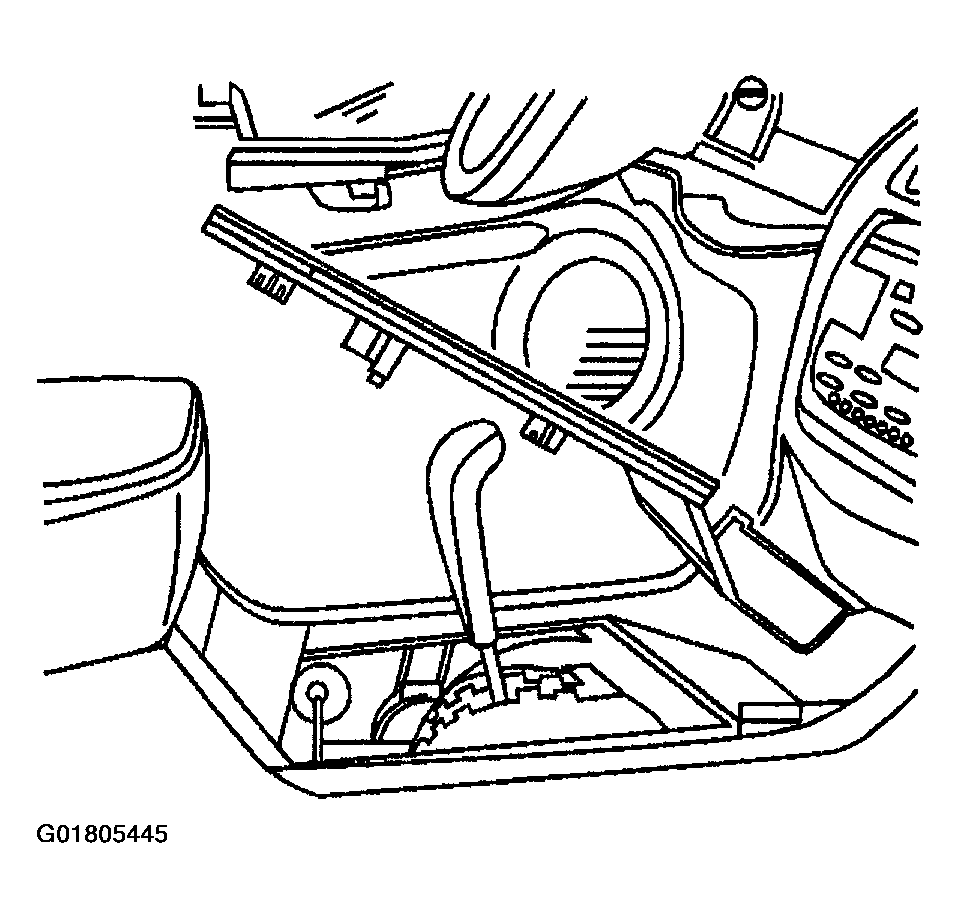

    Fig 3: Installing Console Trim Plate
    G01805445Courtesy of GENERAL MOTORS CORP.
