Installation Procedure

  1. Align the retainers and the alignment posts on the center trim panel (1) to the IP.
  2. Push firmly on the center trim panel (1) towards the front of the vehicle in order to engage the center trim panel retainers.

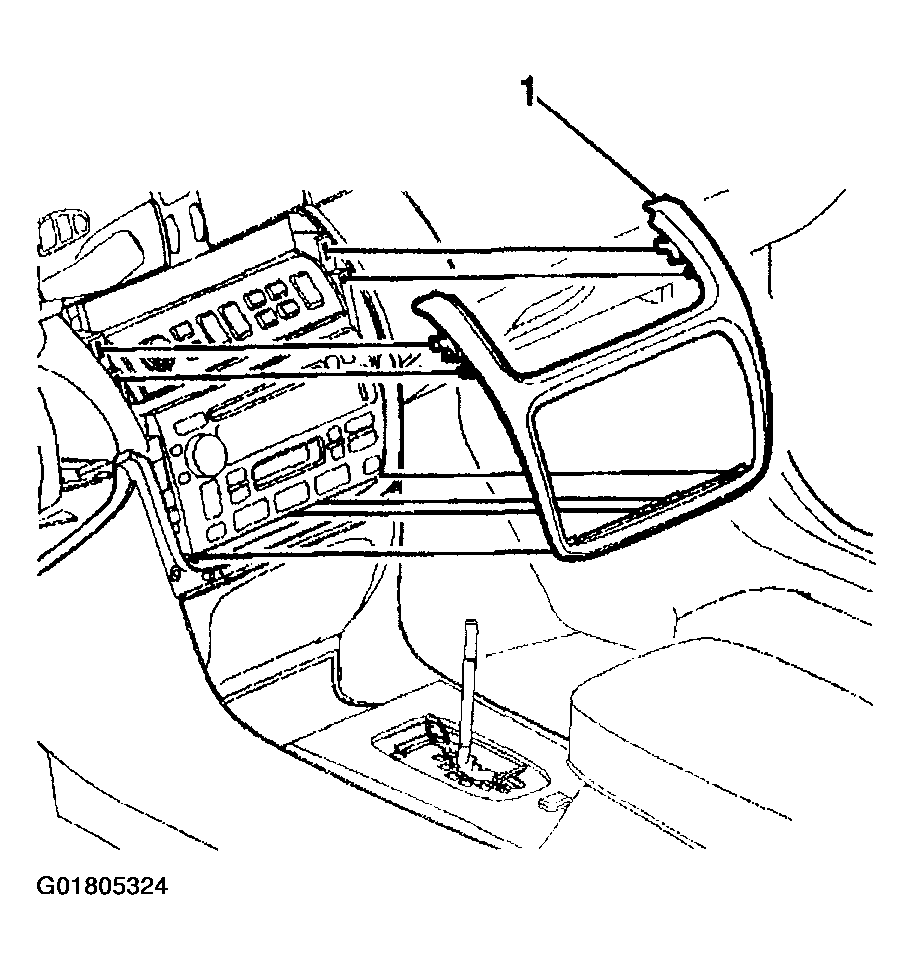

    Fig 1: Installing Center Trim Panel
    G01805324Courtesy of GENERAL MOTORS CORP.
