Installation Procedure

  1. Install the sunload sensor (1) to the defroster grille by twisting 1/4 turn.
  2. Install the defroster grille. Refer to Defroster Grille Replacement (Without UV2)  or Defroster Grille Replacement (UV2) .

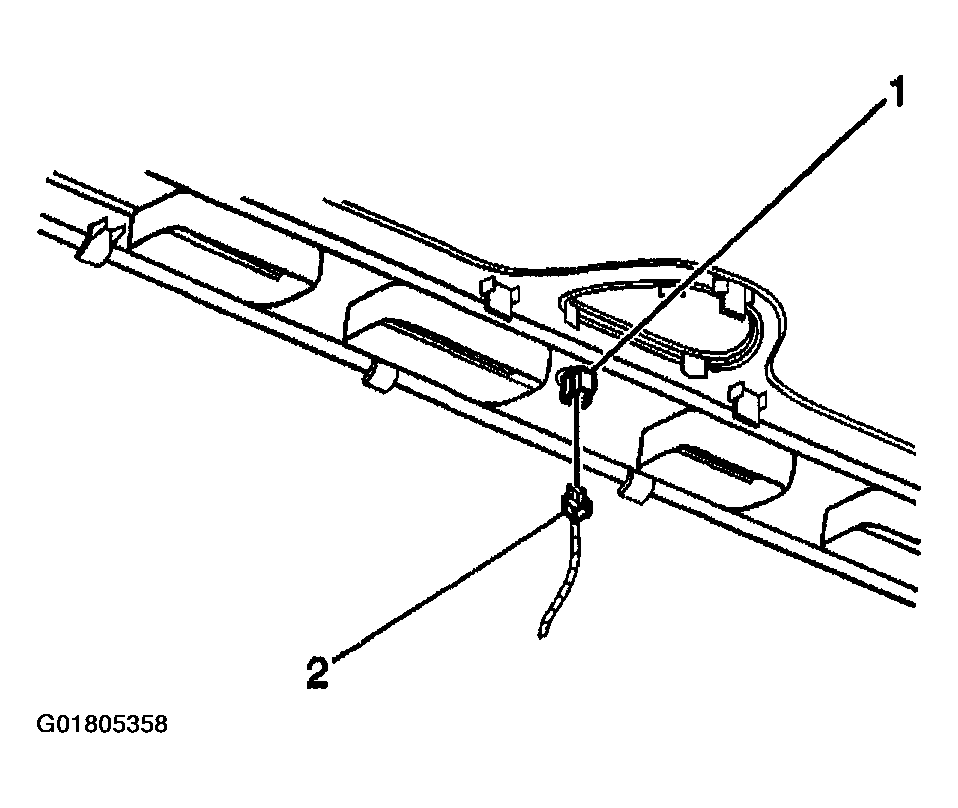

    Fig 1: Installing Sunload Sensor
    G01805358Courtesy of GENERAL MOTORS CORP.
