Installation Procedure

Important:  Make sure the retainers are fully turned and in the locked position.

1. Install the night vision camera to the mounting bracket and turn the retainers (1) 90 degrees.

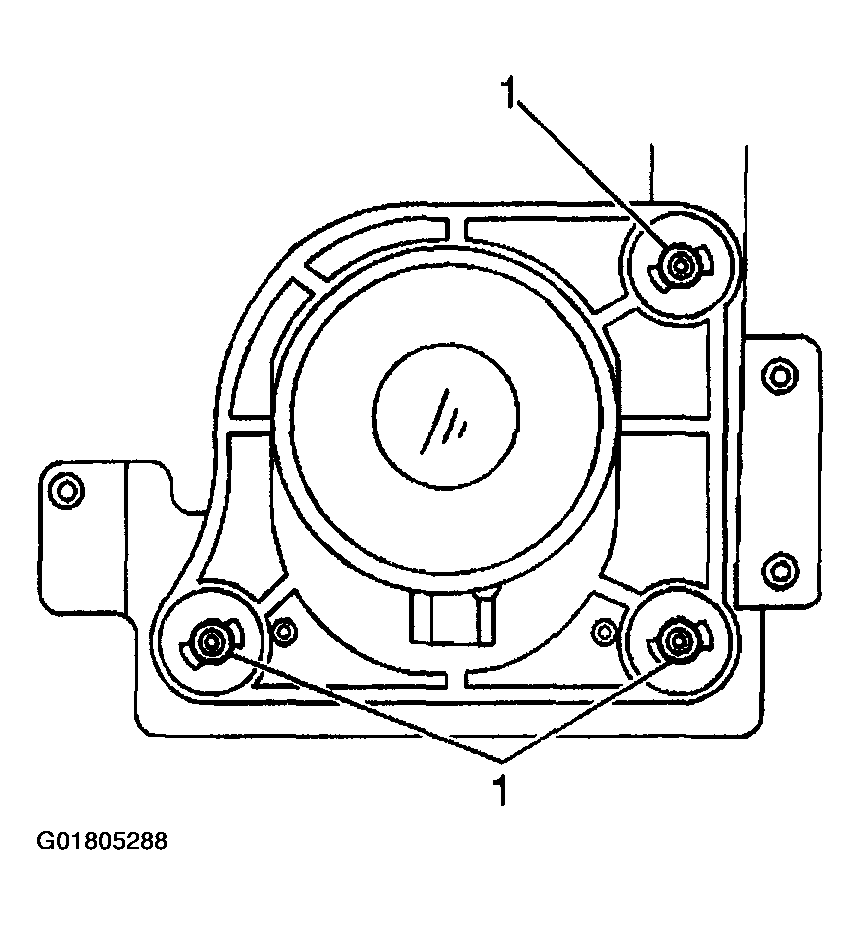

   Fig 1: Installing Night Vision Camera & Turning Camera Retainers

   Courtesy of GENERAL MOTORS CORP.
2. Connect the electrical connectors (2).
3. Perform aiming procedure for night vision camera (1). Refer to Night Vision Camera Aiming .

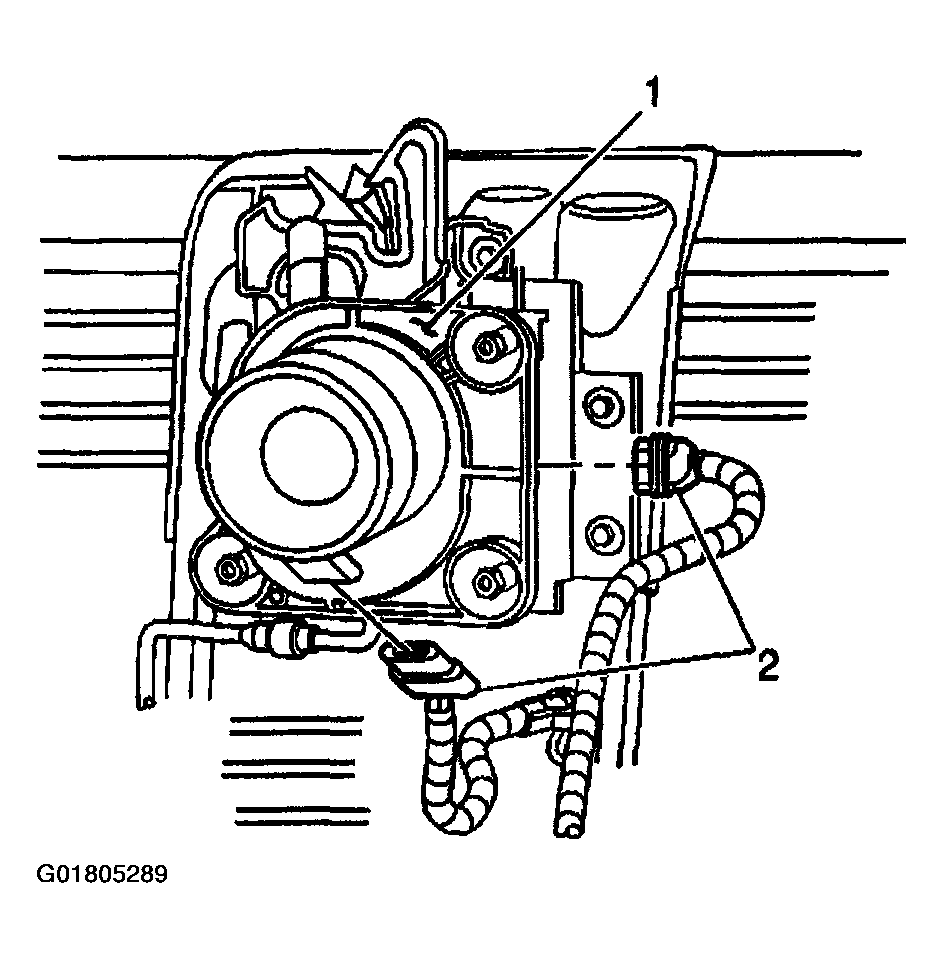

   Fig 2: Connecting Night Vision Camera Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.
