Installation Procedure
- Clean the debris from the cavity in the night vision camera (4) using a soft brush and soapy water.
- Rinse the cavity with clear water and blow dry with 551-896 kpa (80-130 psi) compressed air.
- Blow dry the cavity for a minimum of 2 minutes to ensure that all trapped water is removed.

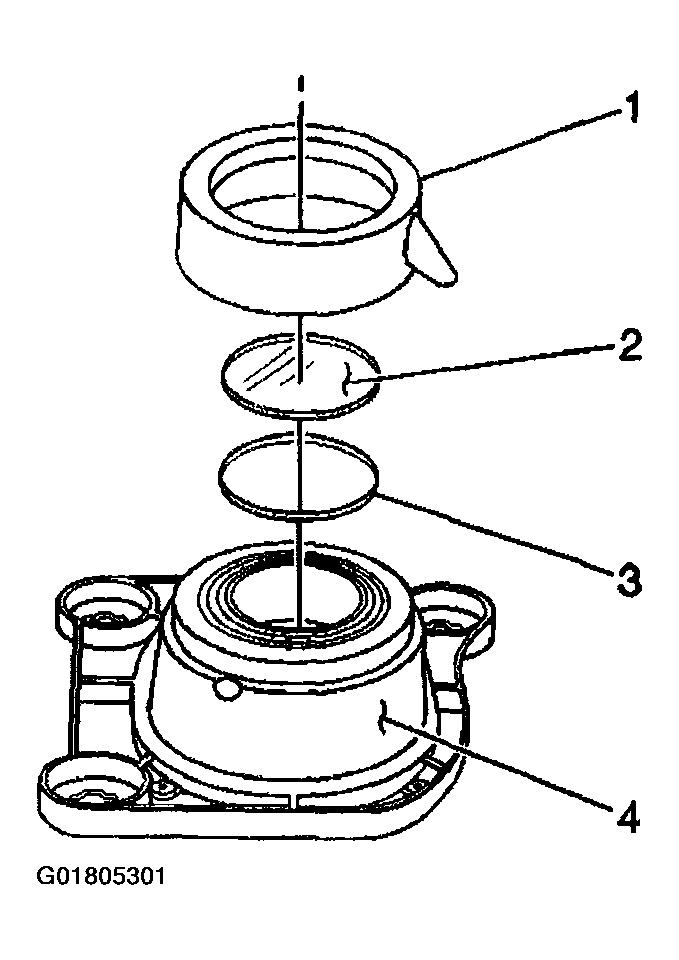

- Install the night vision camera window O-ring (3) to the camera (4).
Important: The night vision camera window has two surfaces. One surface is "mirrored", the other surface is "black".
The black side of the window is coated with a scratch resistant material.
The black surface on the night vision camera window faces toward outside of the camera.
- Install the window (2) into the window cap (1) with the black side of the window / lens facing the outside of the camera assembly.
- Install the window (2) and the window cap (1) to the camera (4).
- Rotate the camera window cap (2) clockwise in order to secure the window to the camera.
- Align the retainer holes, and install the new window retainer (1).
Important: Make sure the retainers are fully turned and in the locked position.

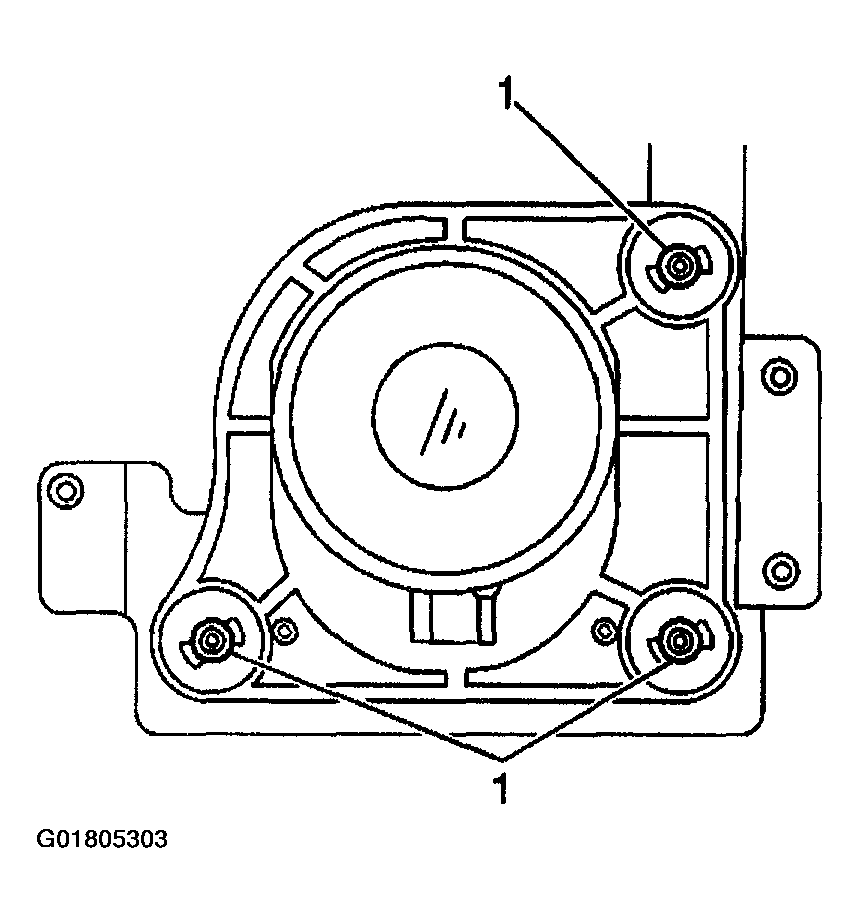

- Install the night vision camera to the mounting bracket and turn the retainers (1) 90 degrees.

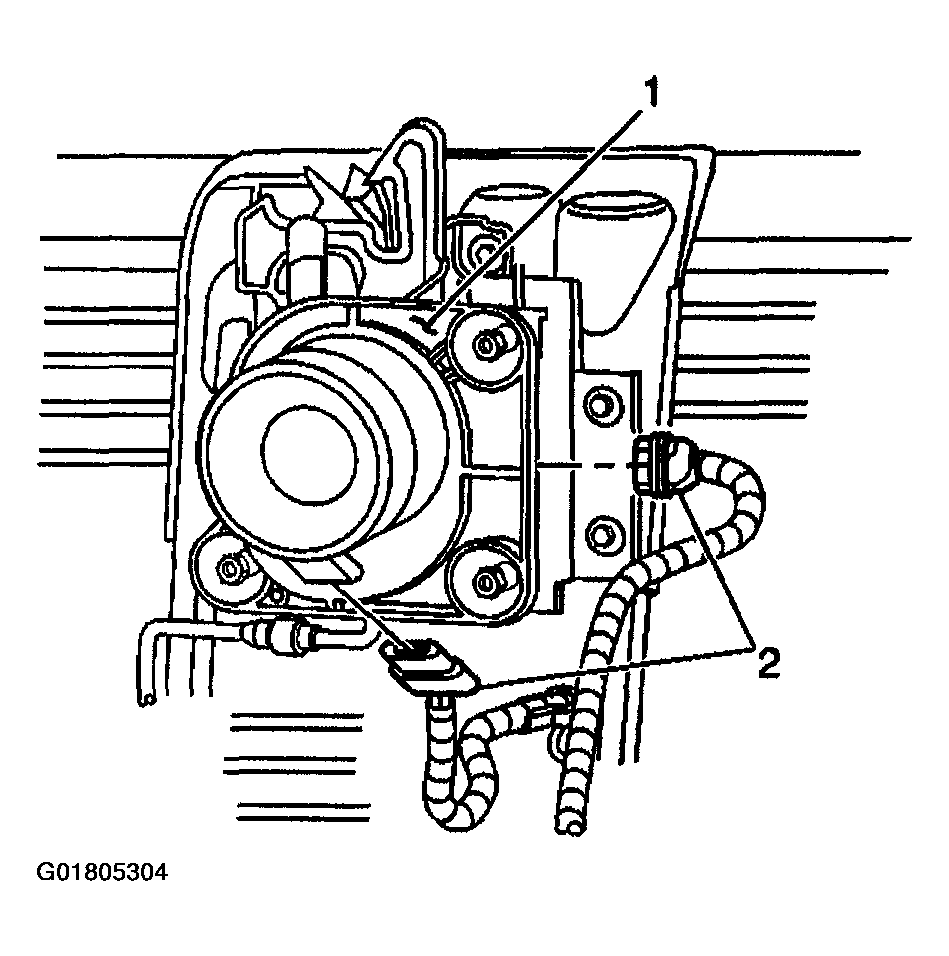

- Connect the electrical connectors (2).
- Perform aiming procedure for night vision camera (1). Refer to Night Vision Camera Aiming .
