Installation Procedure

  1. Install the console armrest latch to the console armrest.
  2. Install the fasteners that retain the console armrest latch to the console armrest.
  3. Tighten the armrest latch fasteners.
  4. Install the armrest inner trim panel (2).
  5. Install the armrest inner trim panel fasteners (1).
  6. Tighten the armrest inner trim panel fasteners
  7. Check for proper operation of the console armrest latch, adjust the console lid latch if necessary.

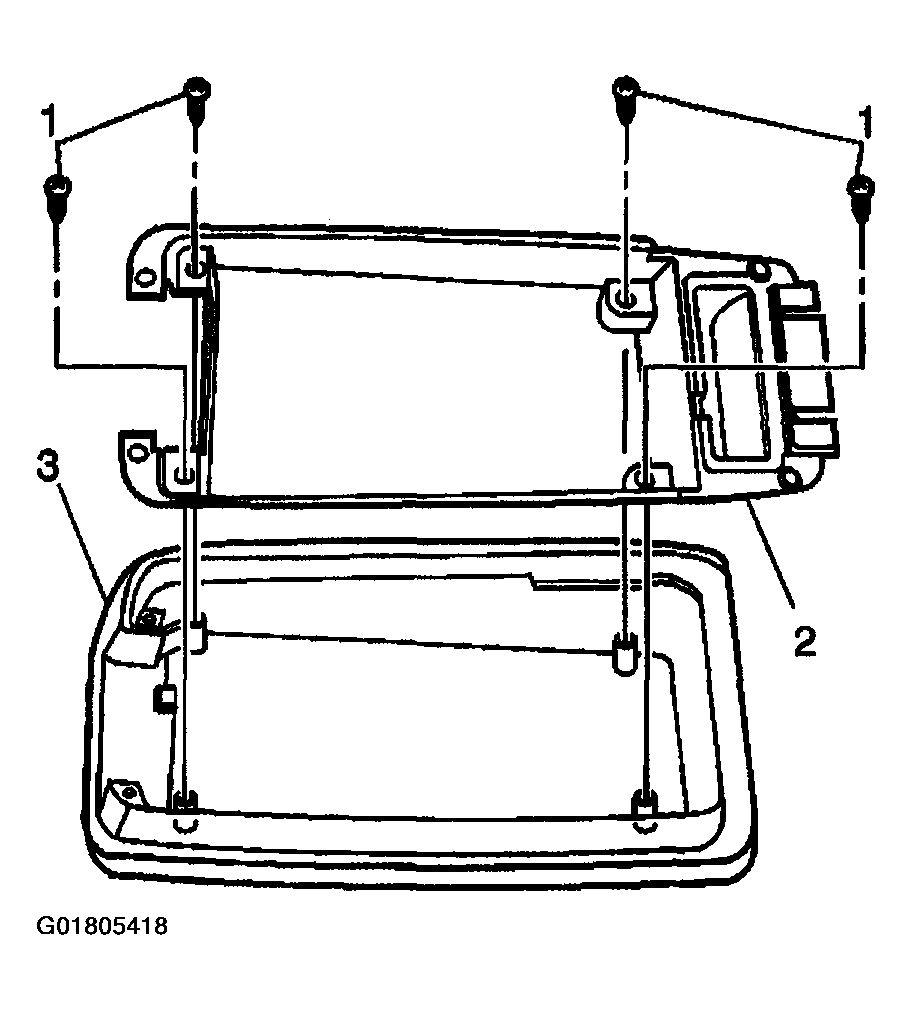

    Fig 1: Installing Armrest Inner Trim Panel & Fasteners
    G01805418Courtesy of GENERAL MOTORS CORP.
