Installation Procedure

Install the console latch to the console tray.
Install the fasteners that retain the console lid latch to the console tray.
Tighten the console latch fasteners

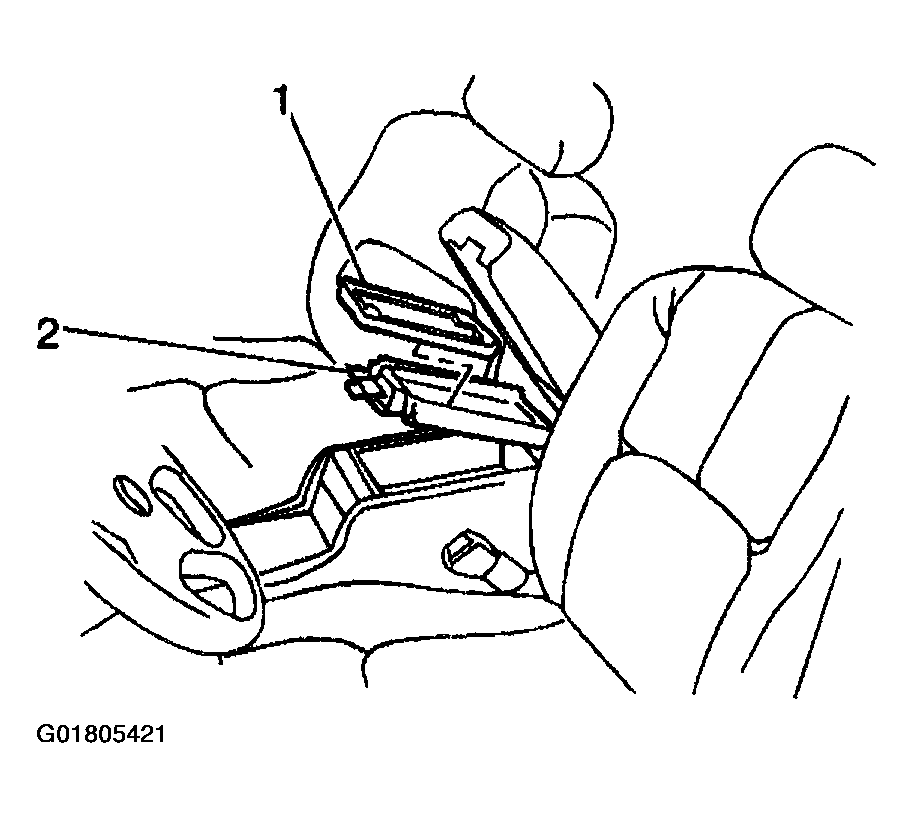

Install the console tray insert (1) to the console tray (2).

Fig 1: Installing Console Tray & Insert
Courtesy of GENERAL MOTORS CORP.

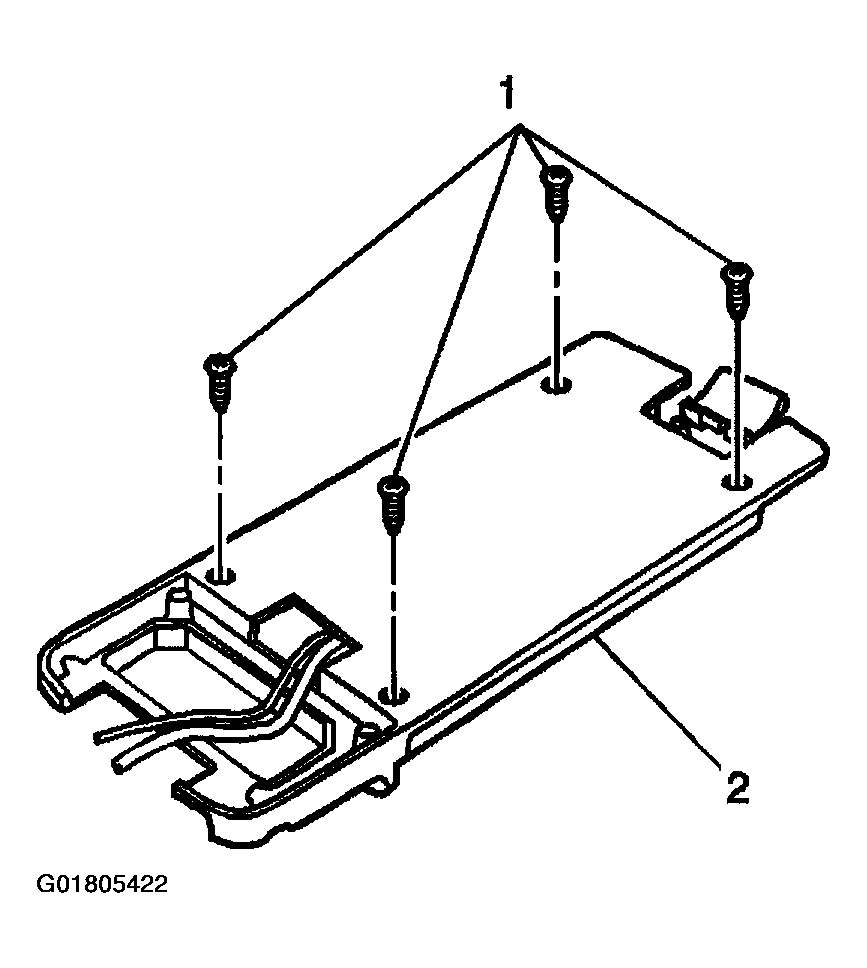

Install the 4 fasteners (1) that retain the console insert tray to the console tray (2).
Tighten the console insert tray fasteners (1).
Check for proper operation of the console door latch, adjust the console lid latch if necessary.

Fig 2: Installing Fasteners Retaining Console Insert Tray To Console Tray
Courtesy of GENERAL MOTORS CORP.
