Installation Procedure

  1. Align the knee bolster trim (1) alignment pins to the lower IP.
  2. Push forward firmly in order to engage the clips onto the IP retainer.

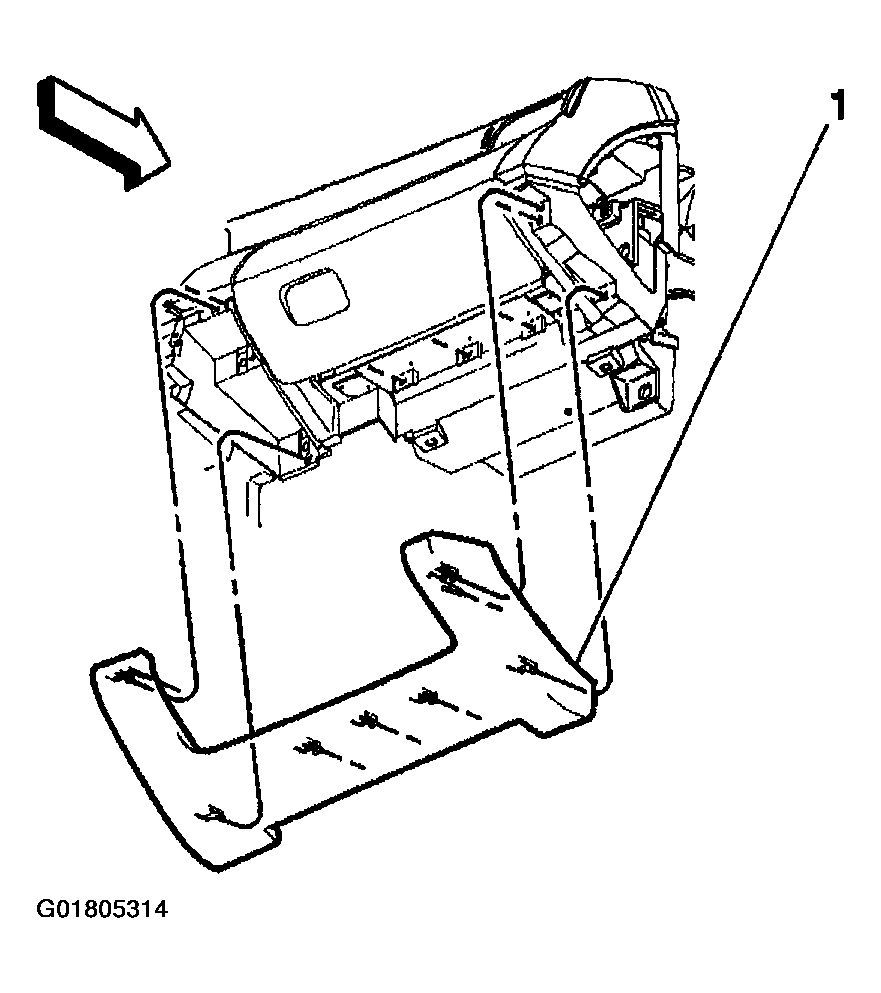

    Fig 1: Aligning Right Knee Bolster Trim Alignment Pins
    G01805314Courtesy of GENERAL MOTORS CORP.
