Installation Procedure

  1. Connect the night vision switch electrical connector (2).
  2. Align the knee bolster trim guide pins to the lower IP.
  3. Push forward firmly in order to engage the clips onto the IP retainer.

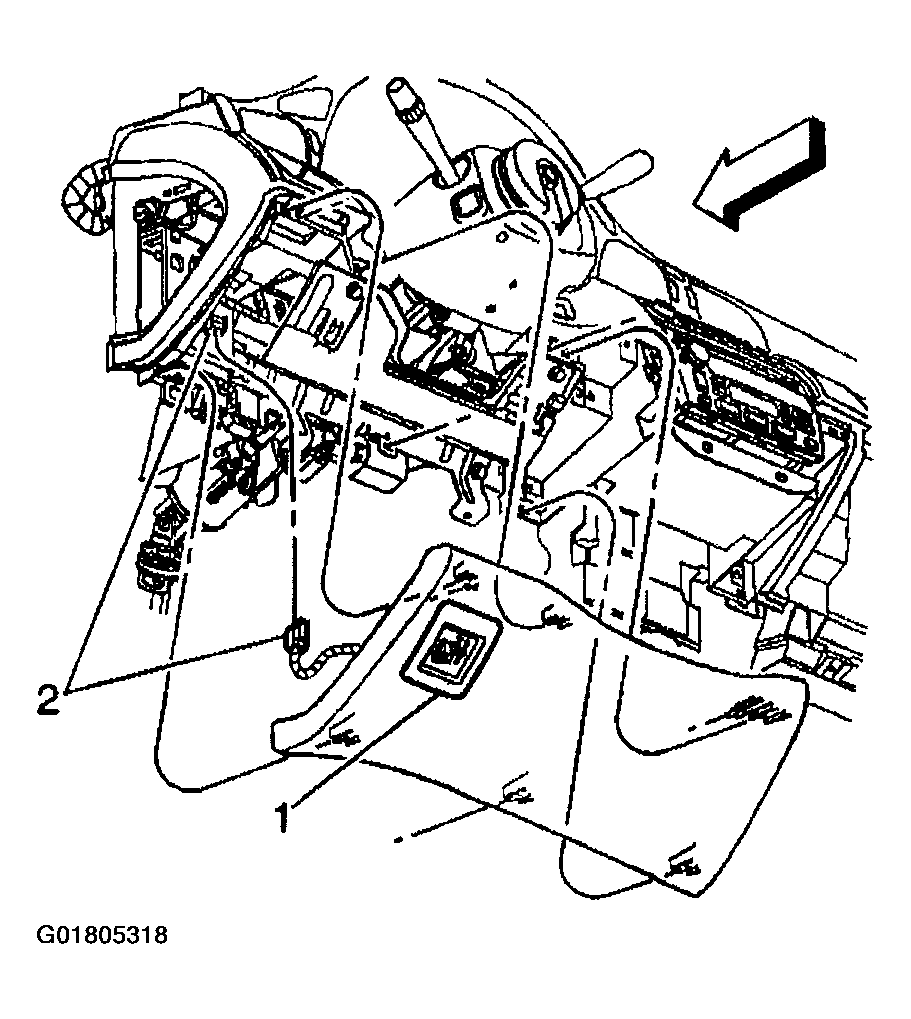

    Fig 1: Connecting Night Vision Switch Electrical Connector
    G01805318Courtesy of GENERAL MOTORS CORP.
