Installation Procedure

  1. Install the IP cluster (3) to the IP.
  2. Connect the electrical connectors (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 4 fasteners (1).

    Tighten

    Tighten the cluster fasteners to 1.5 N.m (14 lb in).

  4. Install the IP cluster trim panel. Refer to Trim Panel Replacement - IP Cluster .
  5. Install the IP upper trim pad. Refer to Trim Pad Replacement - IP Upper .

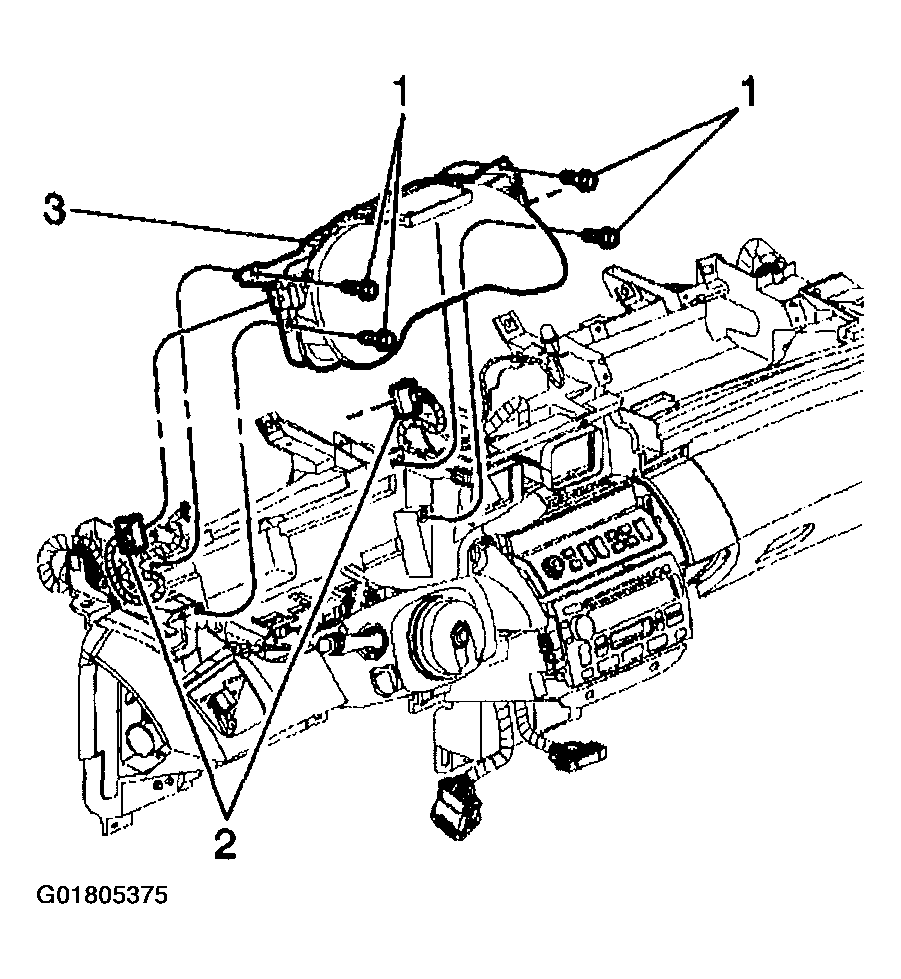

    Fig 1: Installing IP Cluster, Electrical Connectors & Fasteners
    G01805375Courtesy of GENERAL MOTORS CORP.
