Installation Procedure

  1. Align the tabs on the front edge of the right IP outer trim cover (1) to the slots in the IP.
  2. Push the IP outer trim cover (1) towards the IP in order to engage the IP outer trim cover retainer (2).

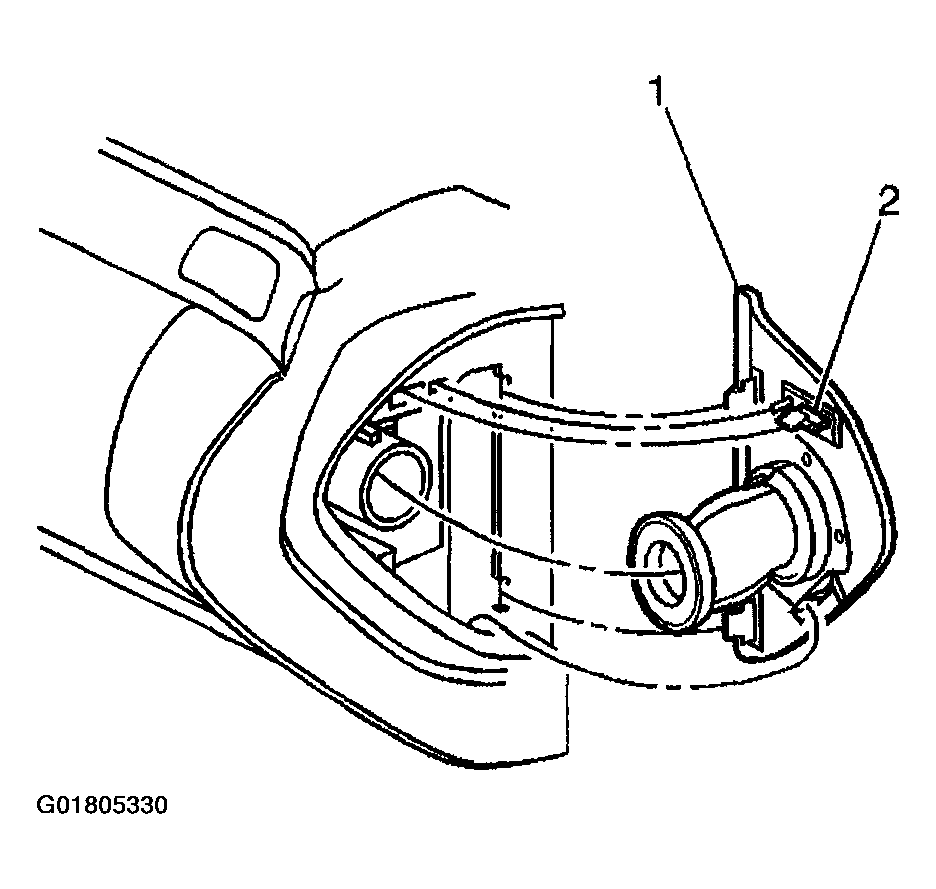

    Fig 1: Pushing IP Outer Trim Cover & Engaging IP Outer Trim Cover Retainer
    G01805330Courtesy of GENERAL MOTORS CORP.
