Installation Procedure

  1. Install the IP and carrier assembly to the vehicle.

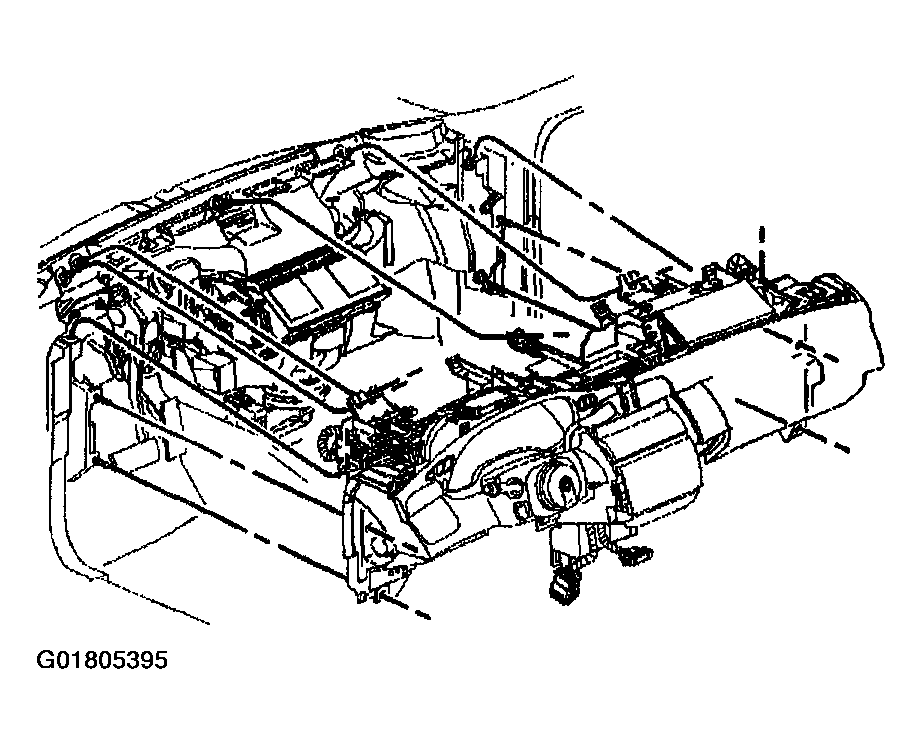

    Fig 1: Installing IP & Carrier Assembly
    G01805395Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners (1) through the IP carrier to the hinge pillar.

    Tighten

    Tighten the IP carrier fasteners to 25 N.m (18 lb ft).

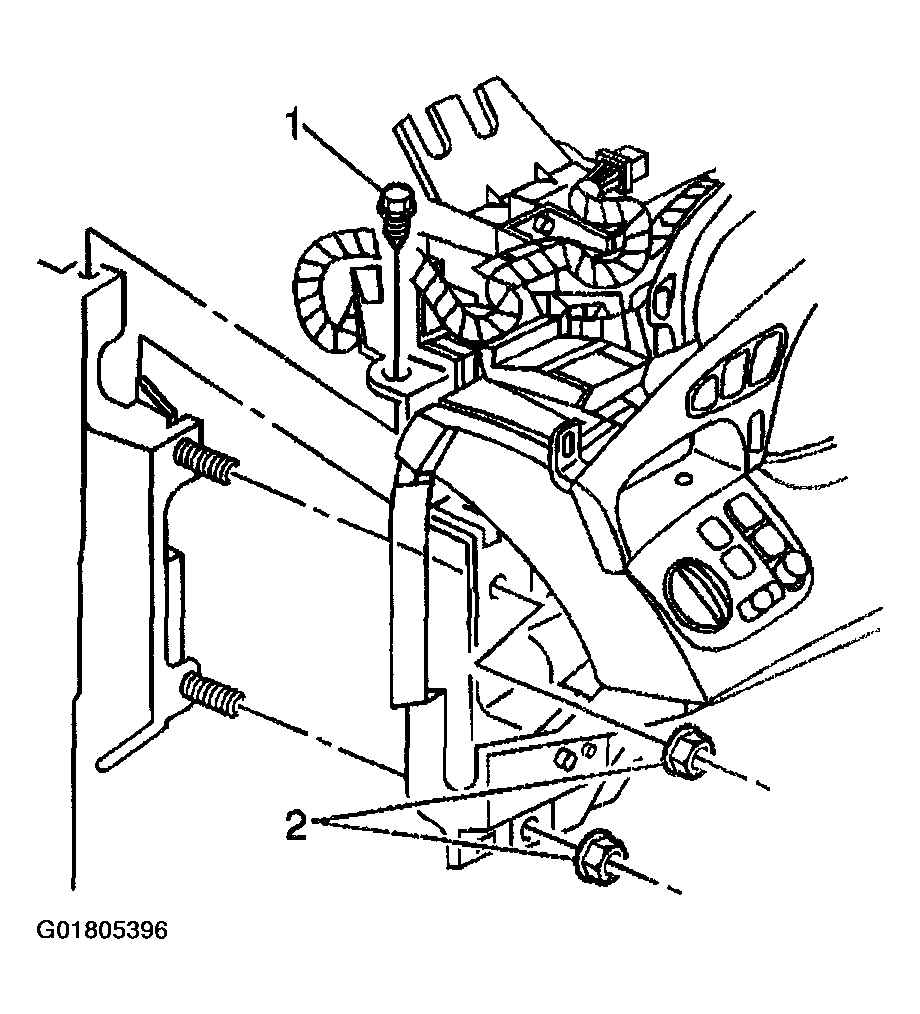

    Fig 2: Installing IP Carrier To Hinge Pillar Fasteners
    G01805396Courtesy of GENERAL MOTORS CORP.
  3. Install the IP carrier to cowl fasteners (1).

    Tighten

    Tighten the IP carrier to cowl fasteners to 25 N.m (18 lb ft).

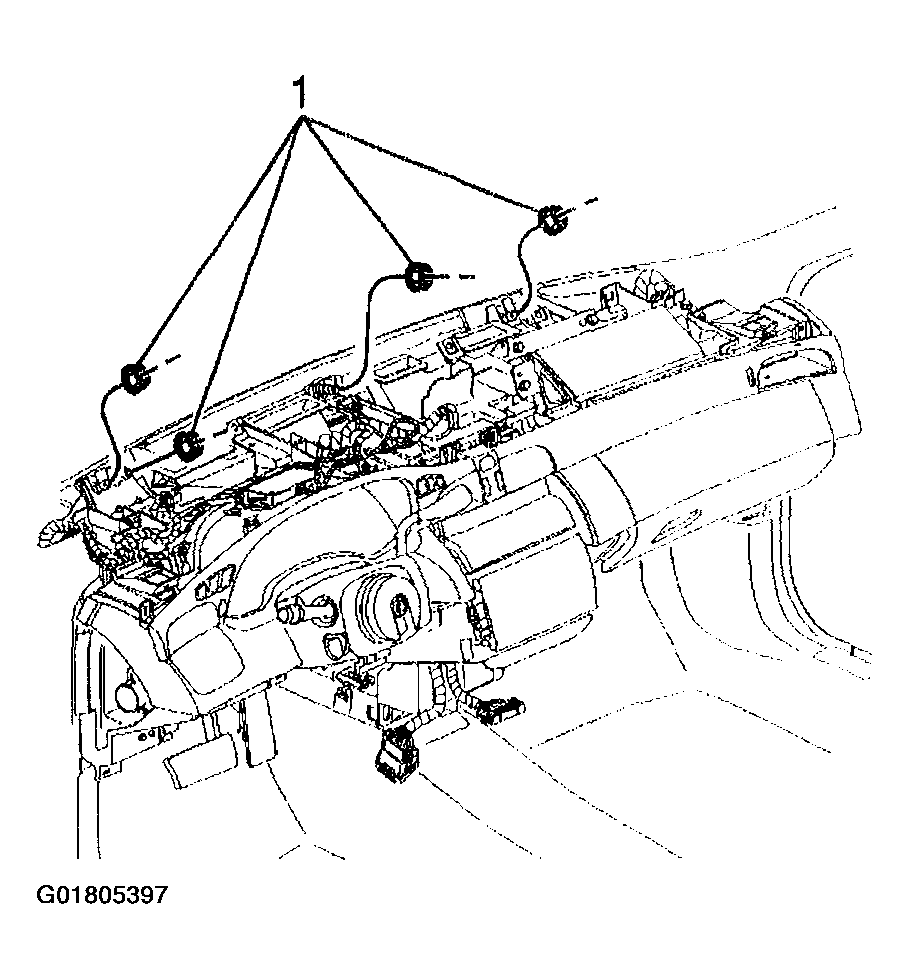

    Fig 3: Installing IP Carrier To Cowl Fasteners
    G01805397Courtesy of GENERAL MOTORS CORP.
  4. Install the IP center support bracket fasteners (1) to floor bracket.

    Tighten

    Tighten the IP center support bracket fasteners to 25 N.m (18 lb ft).

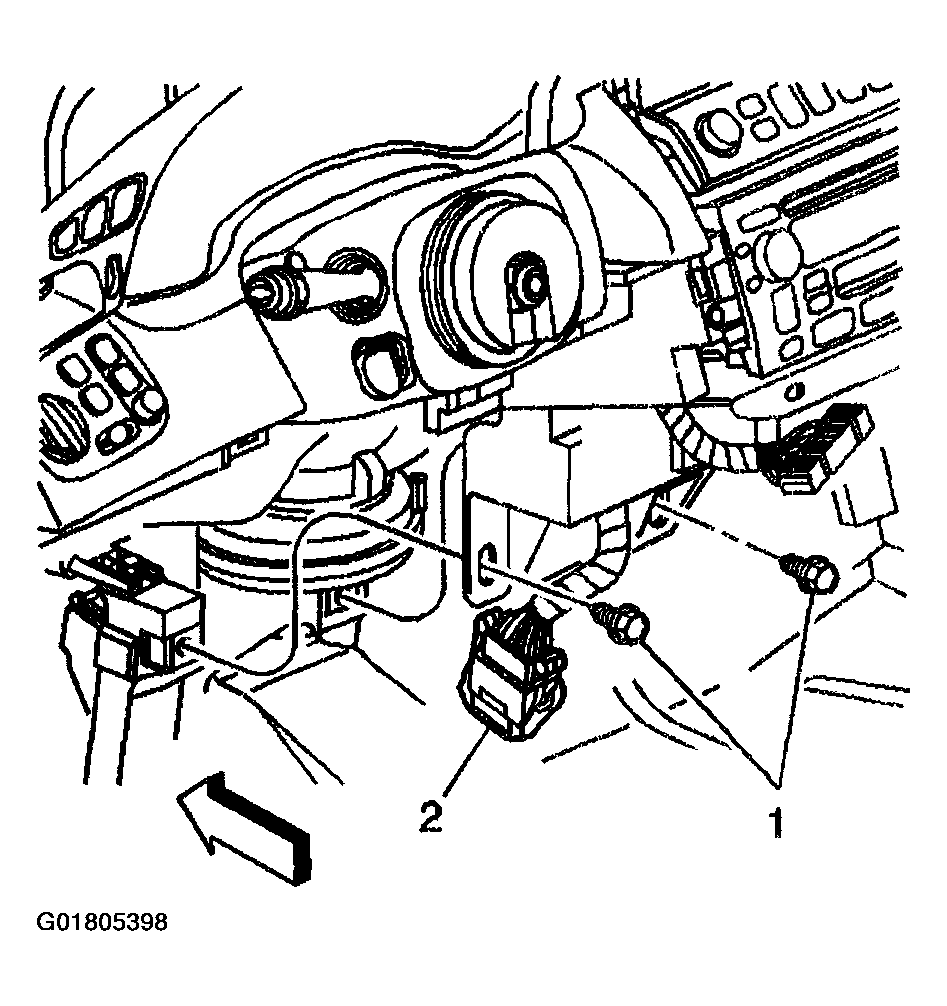

    Fig 4: Installing IP Center Support Bracket Fasteners
    G01805398Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column support fasteners (1).

    Tighten

    Tighten the fasteners to 25 N.m (18 lb ft).

  6. Install the steering shaft to the steering column
  7. For a DeVille base model, or the DeVille DHS, Install the shift cable to the steering column.
  8. Connect Steering column to body electrical connectors.

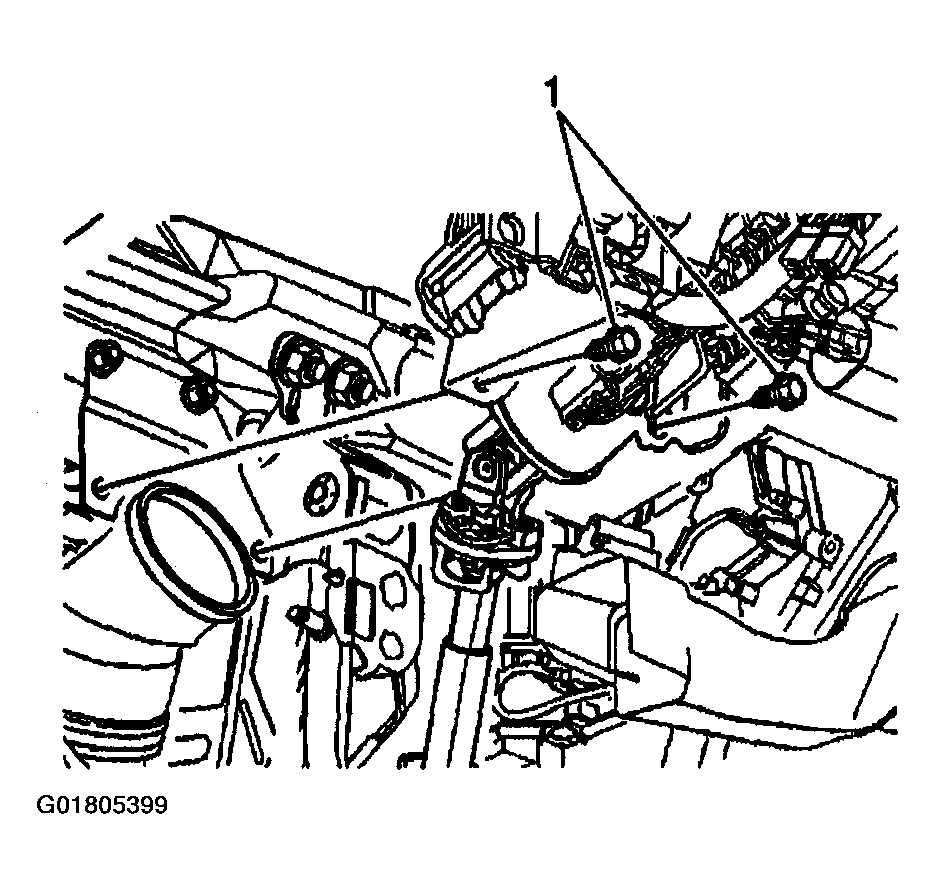

    Fig 5: Installing Steering Column Support Fasteners
    G01805399Courtesy of GENERAL MOTORS CORP.
  9. Connect the IP to body electrical connectors (1) at top outside corners of IP.
  10. Install the heads up display, if equipped with UV8. Refer to Head Up Display Module Replacement .
  11. Install the IP upper trim pad. Refer to Trim Pad Replacement - IP Upper .
  12. Install the defroster grille. Refer to Defroster Grille Replacement (Without UV2)  or Defroster Grille Replacement (UV2) .
  13. Install the windshield pillar trim. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR .
  14. Install the center seat or the center console. Refer to Compartment Replacement - IP (Base and DHS)  or Compartment Replacement - IP (DTS)  or Console Replacement - Front Floor (DTS, w/o UV8)  or Console Replacement - Front Floor (DTS with UV8) .

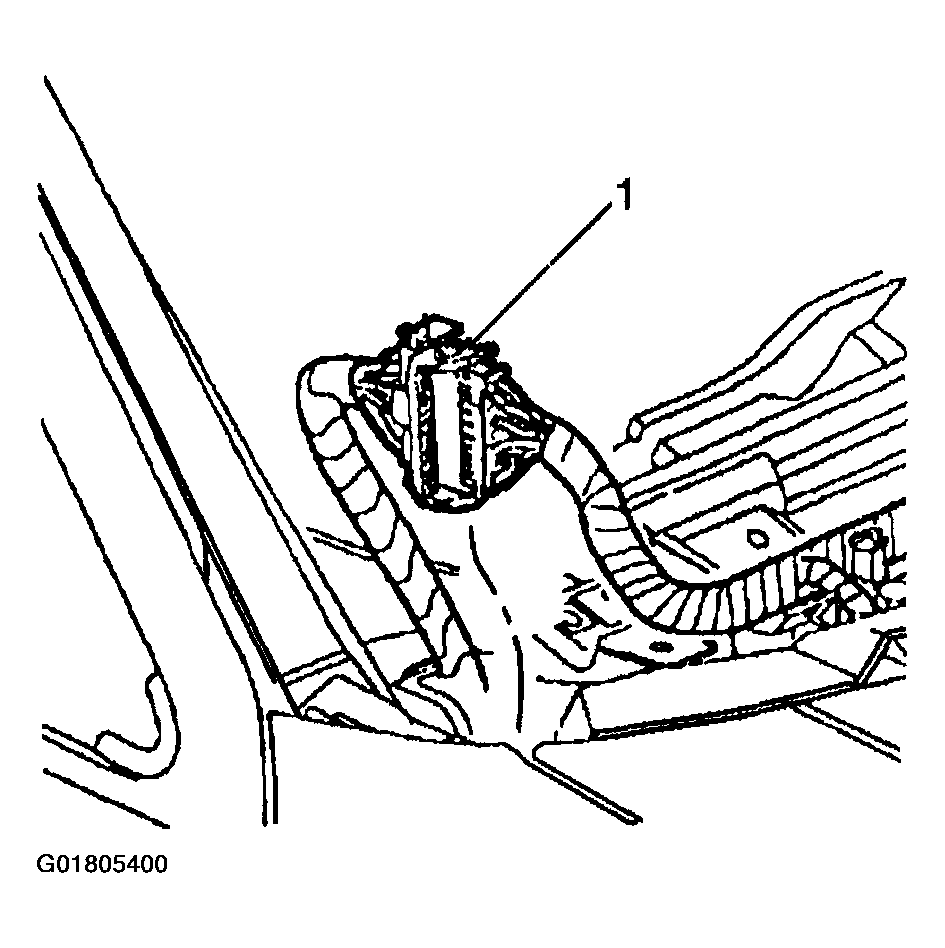

    Fig 6: Connecting IP To Body Electrical Connectors
    G01805400Courtesy of GENERAL MOTORS CORP.
  15. Install the left and right IP outer trim panels. Refer to Instrument Panel (IP) Outer Trim Cover Replacement - Right  and Instrument Panel (IP) Outer Trim Cover Replacement - Left .
  16. Install the left knee bolster support bracket. Refer to Knee Bolster Bracket Replacement - Left .
  17. Install the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2)  or Knee Bolster Replacement - Left (UV2) .
  18. Install the right knee bolster. Refer to Knee Bolster Replacement - Right .
  19. Enable the SIR. Refer to ACTIVATING SYSTEM .
