Installation Procedure

  1. Align the air outlet vent (1,2,3 or 4) to the IP opening.
  2. Push the air outlet vent (1, 2, 3, or 4) into the opening until the retainers are engaged.
  3. Check for proper operation and movement.

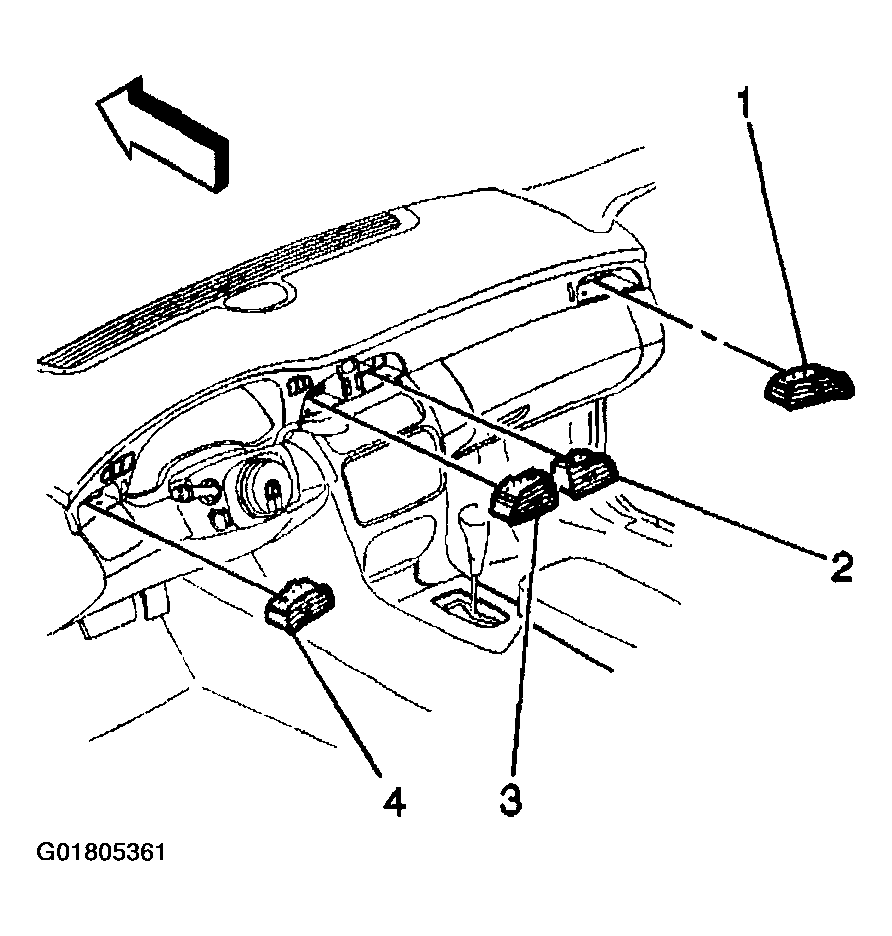

    Fig 1: Installing Air Outlet Vents
    G01805361Courtesy of GENERAL MOTORS CORP.
