Installation Procedure

  1. Install the head up display switch to the knee bolster.

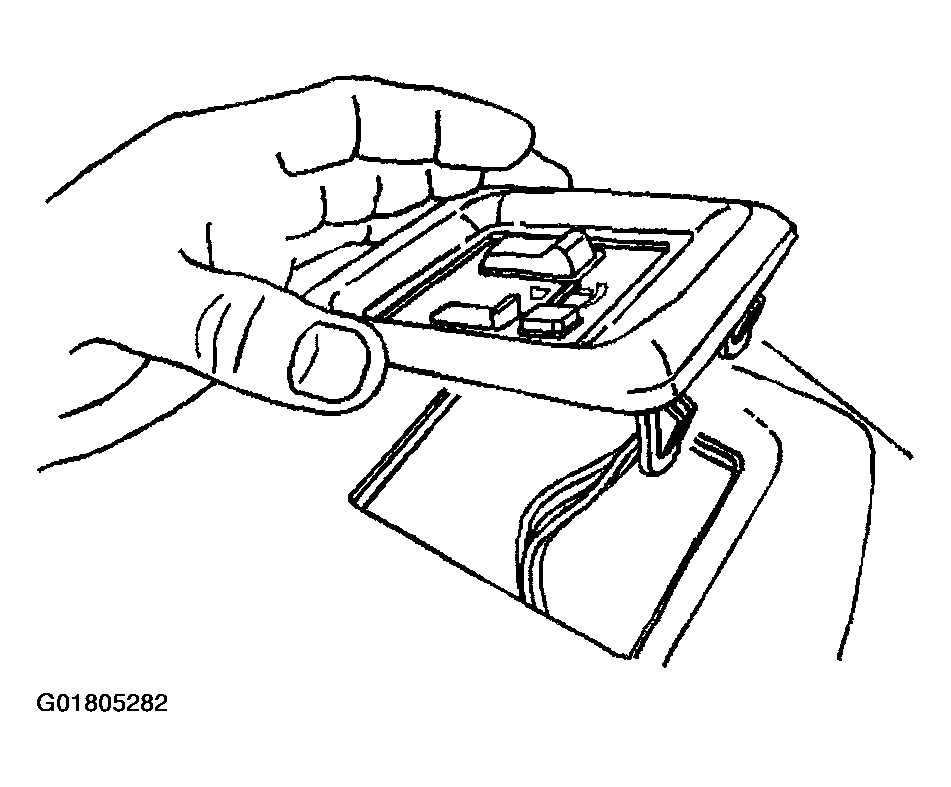

    Fig 1: Installing Head Up Display Switch
    G01805282Courtesy of GENERAL MOTORS CORP.
  2. Connect the head up display switch (1) electrical connector (2).
  3. Install the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2)  or Knee Bolster Replacement - Left (UV2) .

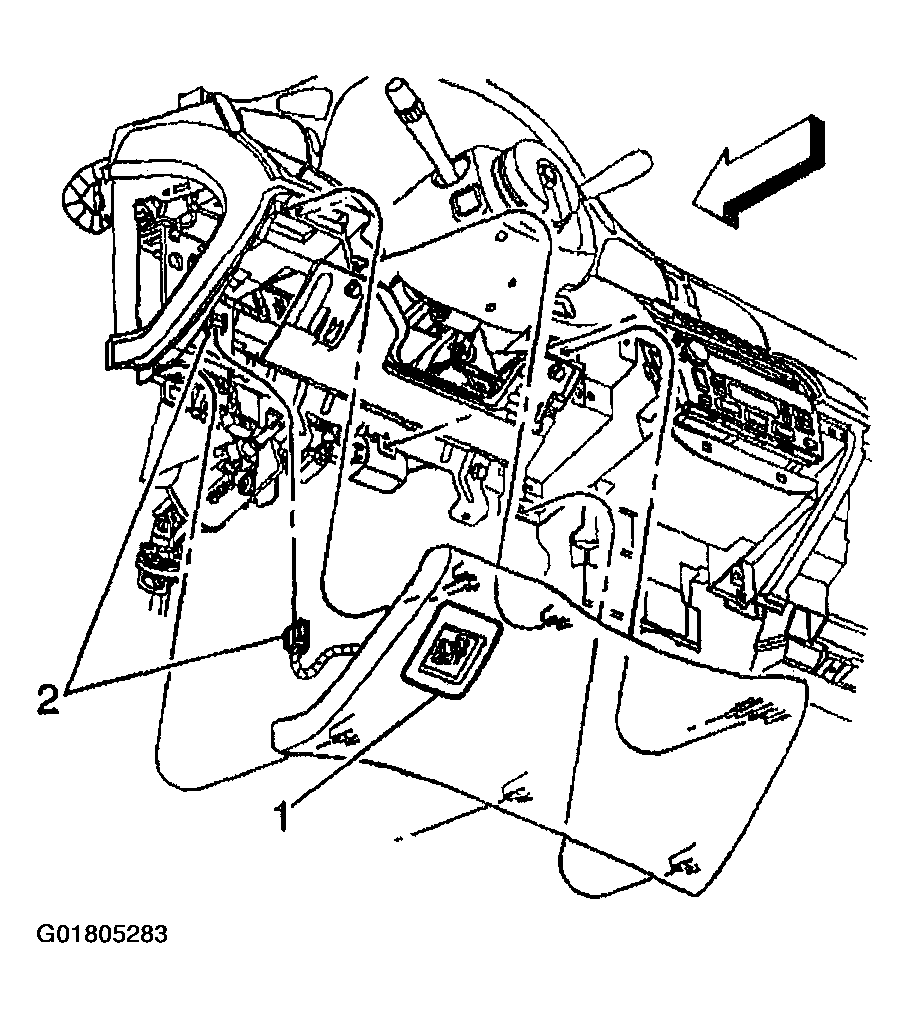

    Fig 2: Connecting Head Up Display Switch Electrical Connector
    G01805283Courtesy of GENERAL MOTORS CORP.
