Installation Procedure

  1. Install the drivers information switch to the IP cluster trim panel.

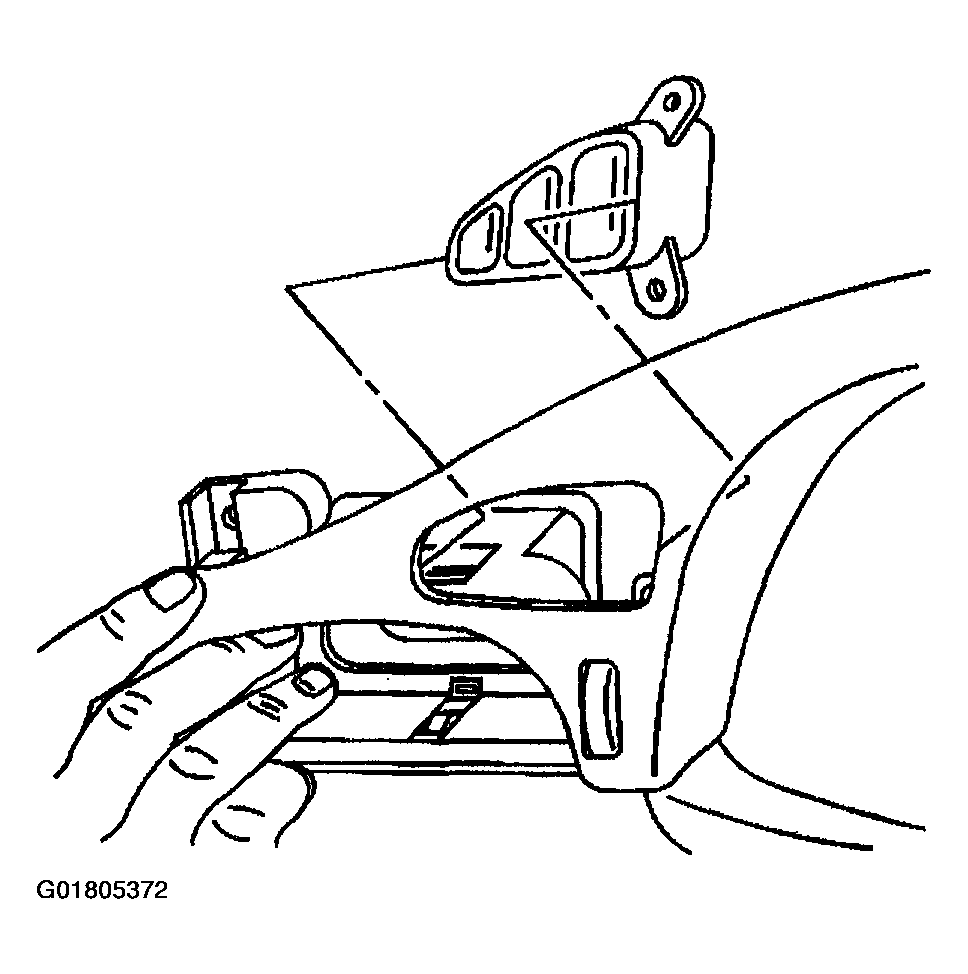

    Fig 1: Installing Drivers Information Switch
    G01805372Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  3. Install the IP cluster trim panel. Refer to Trim Panel Replacement - IP Cluster .

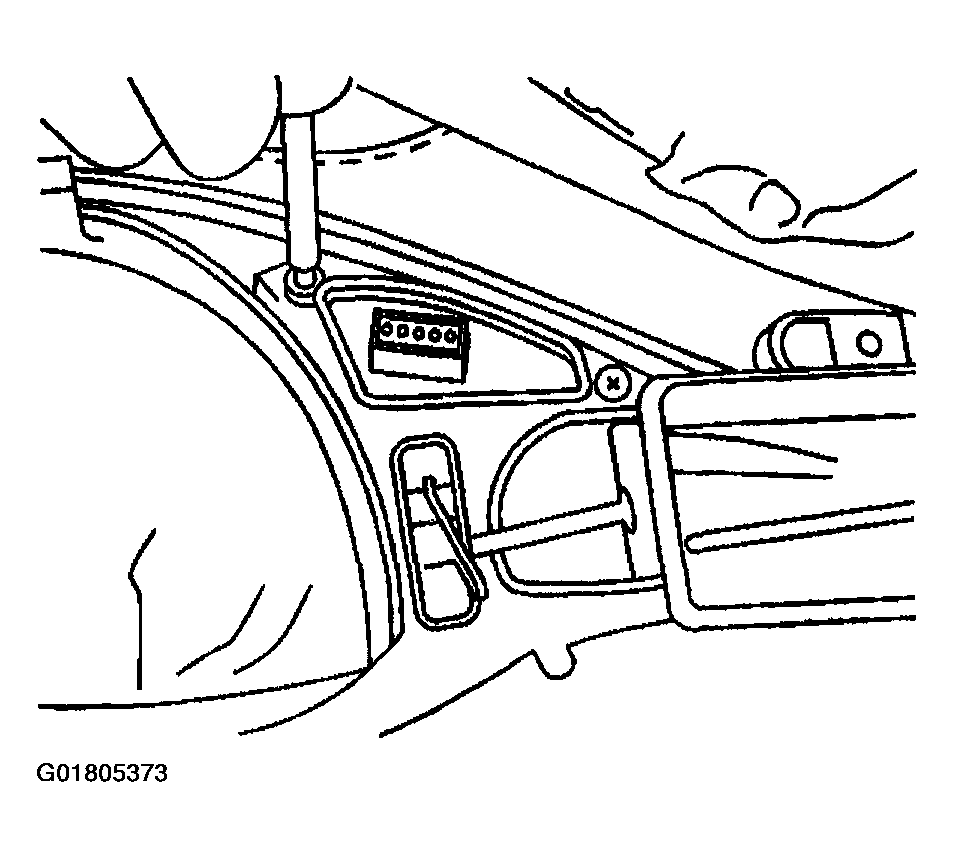

    Fig 2: Installing Fasteners To Drivers Information Switch
    G01805373Courtesy of GENERAL MOTORS CORP.
