Installation Procedure

  1. Align the console lid and hinge assembly to the center console. The console hinge has alignment pins next to the top hinge screws.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the hinge screws (1).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Install the cellular telephone storage tray, if equipped with UV8. Refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DTS) or CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DEVILLE AND DHS) .
  4. Install the inner auxiliary HVAC outlet (2).

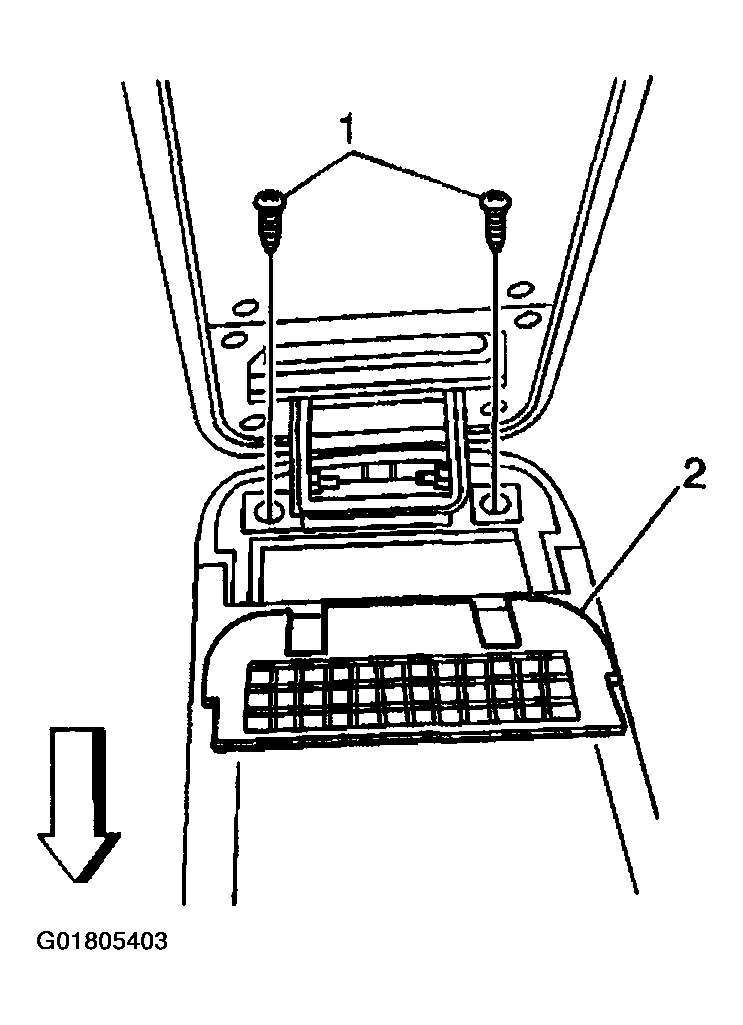

    Fig 1: Installing Inner Auxiliary HVAC Outlet
    G01805403Courtesy of GENERAL MOTORS CORP.
  5. Close the console compartment door.
  6. Install the center console rear cover (3).
  7. Install the rear cover screws (1, 2).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  8. Install the auxiliary HVAC control. Refer to HVAC CONTROL MODULE -- AUXILIARY .

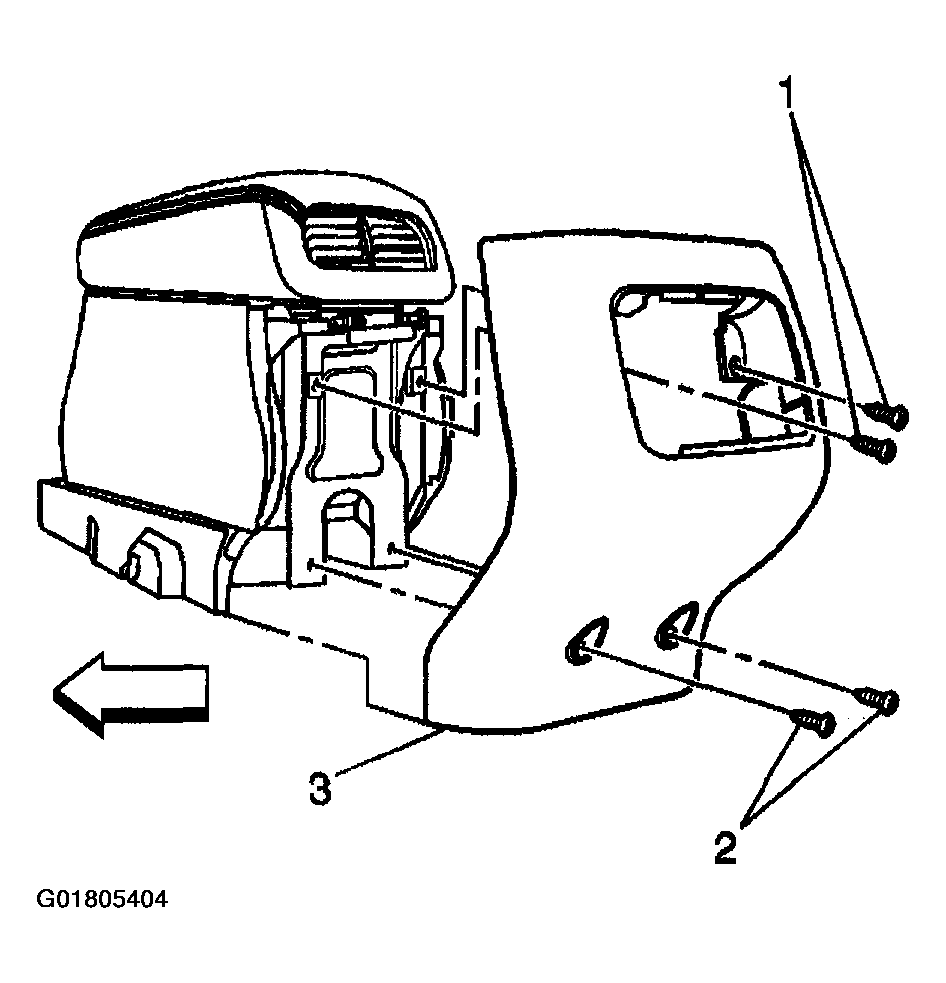

    Fig 2: Installing Center Console Rear Cover & Screws
    G01805404Courtesy of GENERAL MOTORS CORP.
