Installation Procedure

Install the cup holder (2) to the center console.
Install the 4 fasteners (1) that retain the cup holder assembly (2) to the center console.

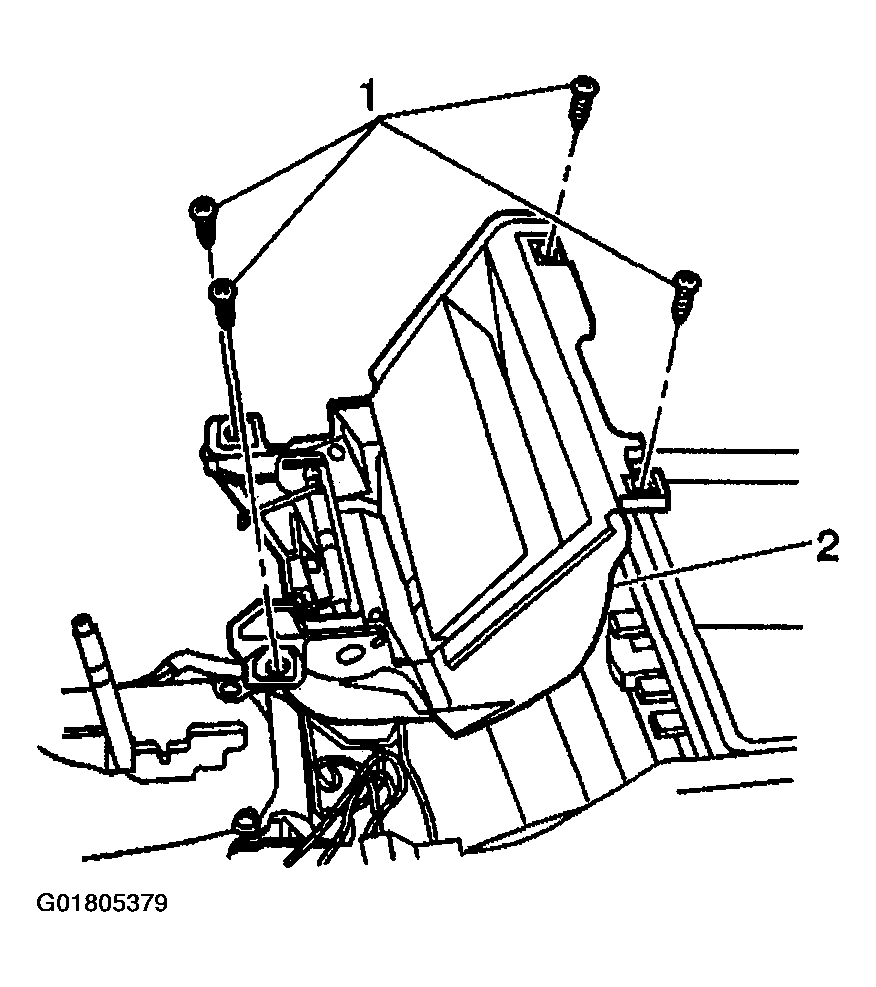

Fig 1: Installing Cup Holder & Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the cup holder trim plate (1).

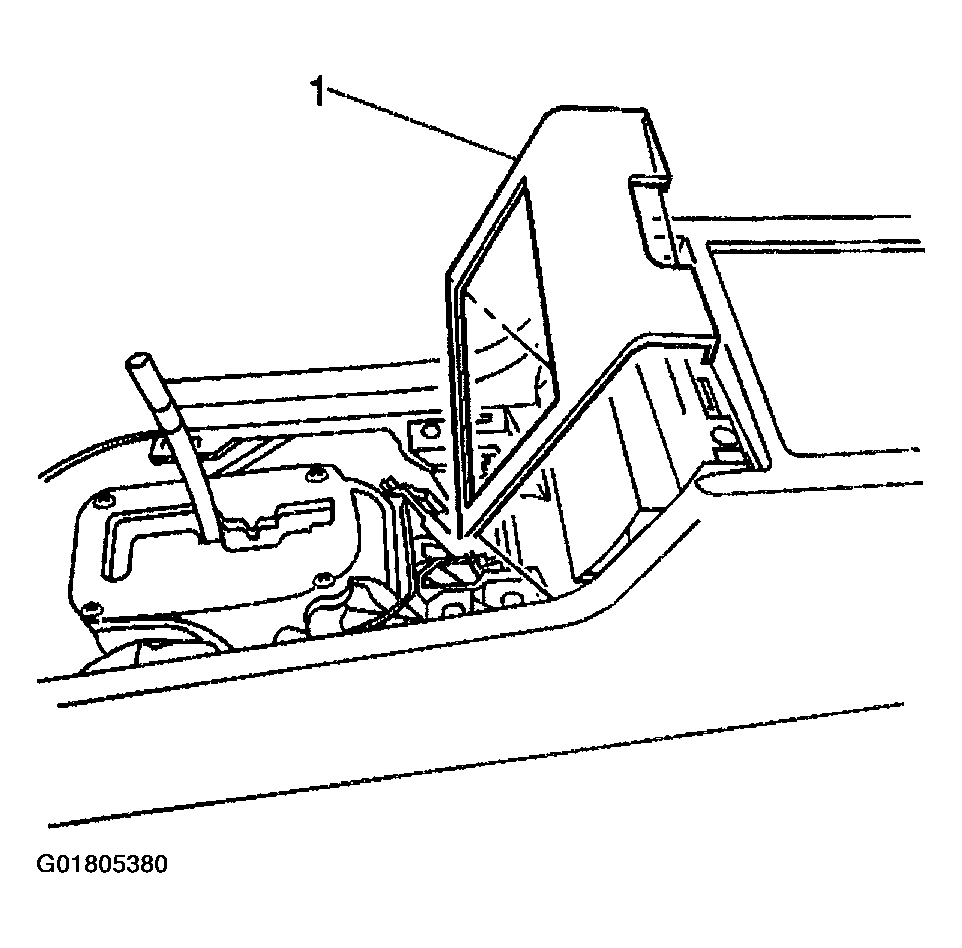

Fig 2: Installing Cup Holder Trim Plate
Courtesy of GENERAL MOTORS CORP.
Install the console door striker fasteners (1).
Adjust the console door striker (2).
Check for proper operation of the cup holder and console door.
Install the center console trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) .

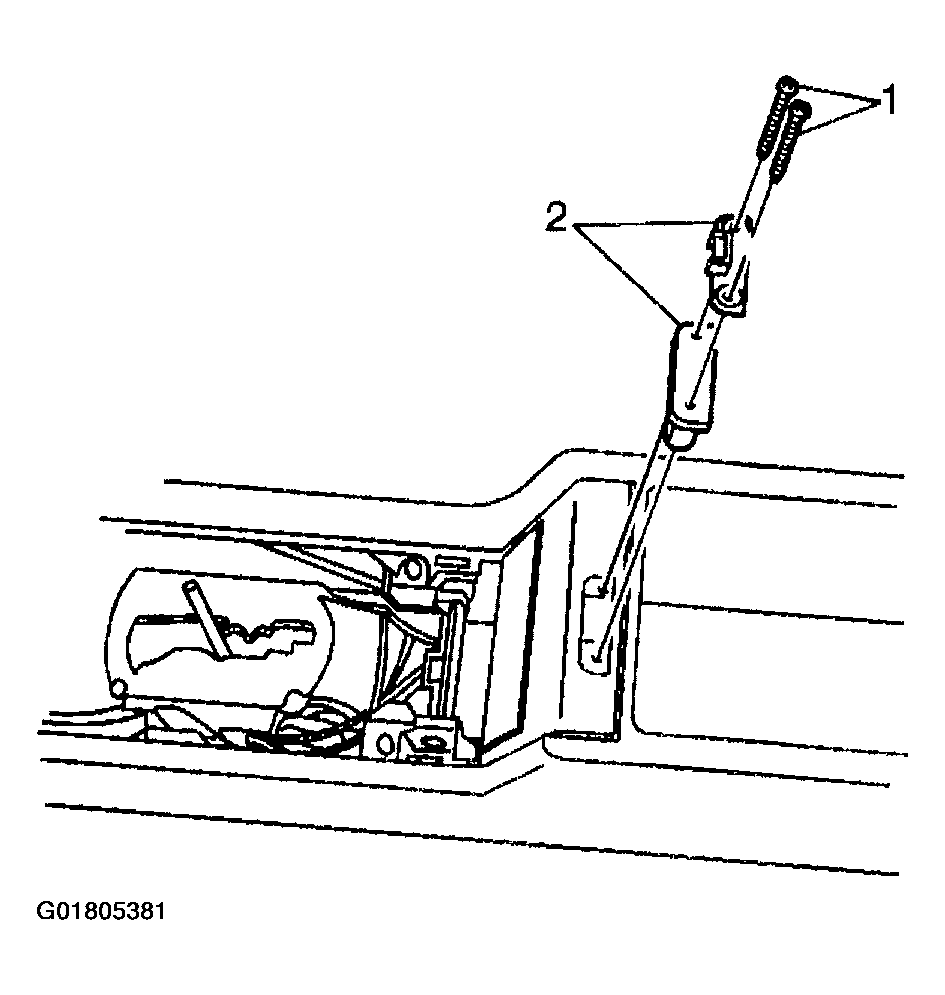

Fig 3: Installing Console Door Striker & Fasteners
Courtesy of GENERAL MOTORS CORP.
