Installation Procedure

  1. Align the side panel and retainers to the console.
  2. Push firmly on the side panel in order to engage the retainers.

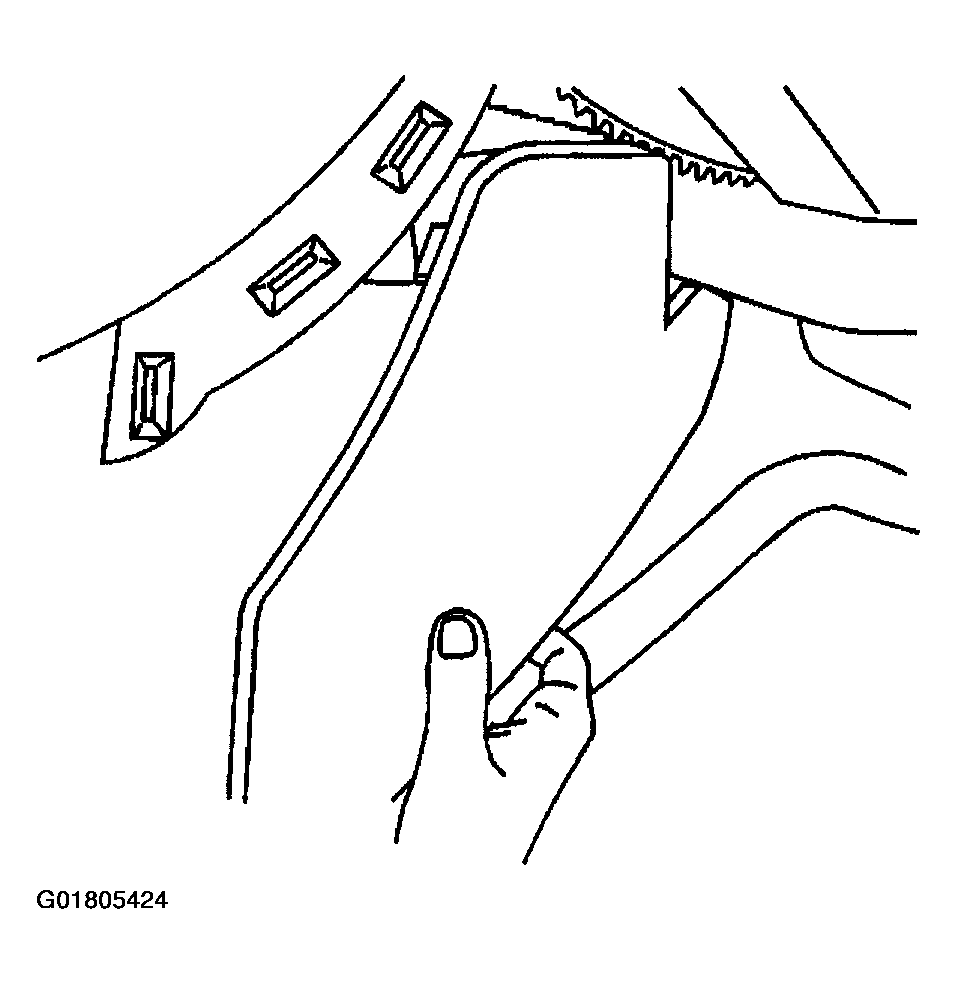

    Fig 1: Installing Console Side Panel
    G01805424Courtesy of GENERAL MOTORS CORP.
