Installation Procedure

  1. Engage the left console side panel (2) front attachment (1) by hooking the front of the console side panel (2) to the HVAC cover.
  2. Align the console side panel rear retainers to the console.
  3. Push firmly on the side panel in order to engage the rear retainers.

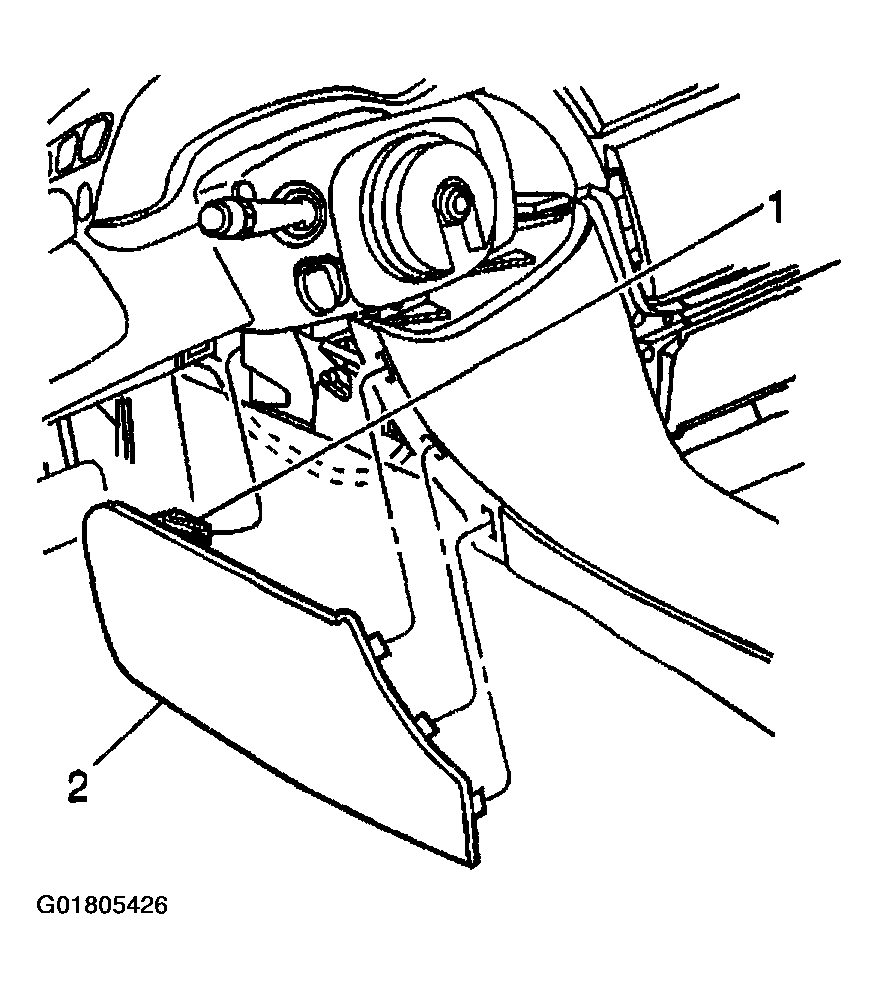

    Fig 1: Engaging Left Console Side Panel Front Attachment
    G01805426Courtesy of GENERAL MOTORS CORP.
