Installation Procedure

  1. Install the console tray to the hinge.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws (1).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Check console lid for proper operation.

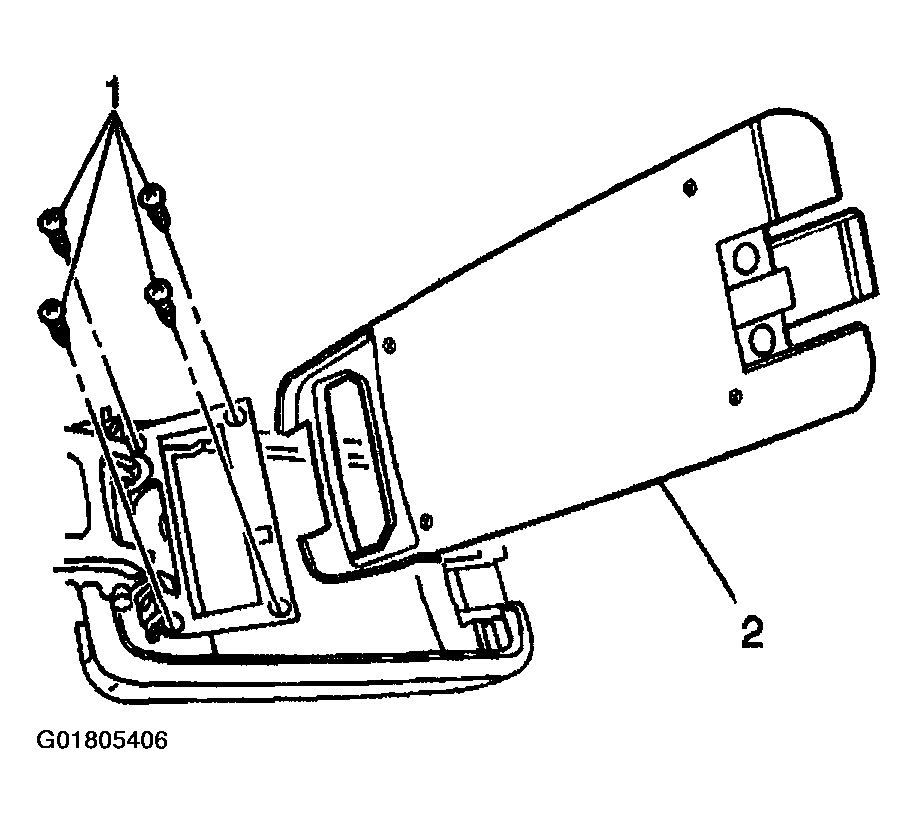

    Fig 1: Installing Center Console Tray & Screws
    G01805406Courtesy of GENERAL MOTORS CORP.
