Installation Procedure
- Install the center console to the vehicle.
- Connect the center console electrical connectors.
- Align the locating pins on the center console to the IP.NOTE: Refer to FASTENER NOTICE .

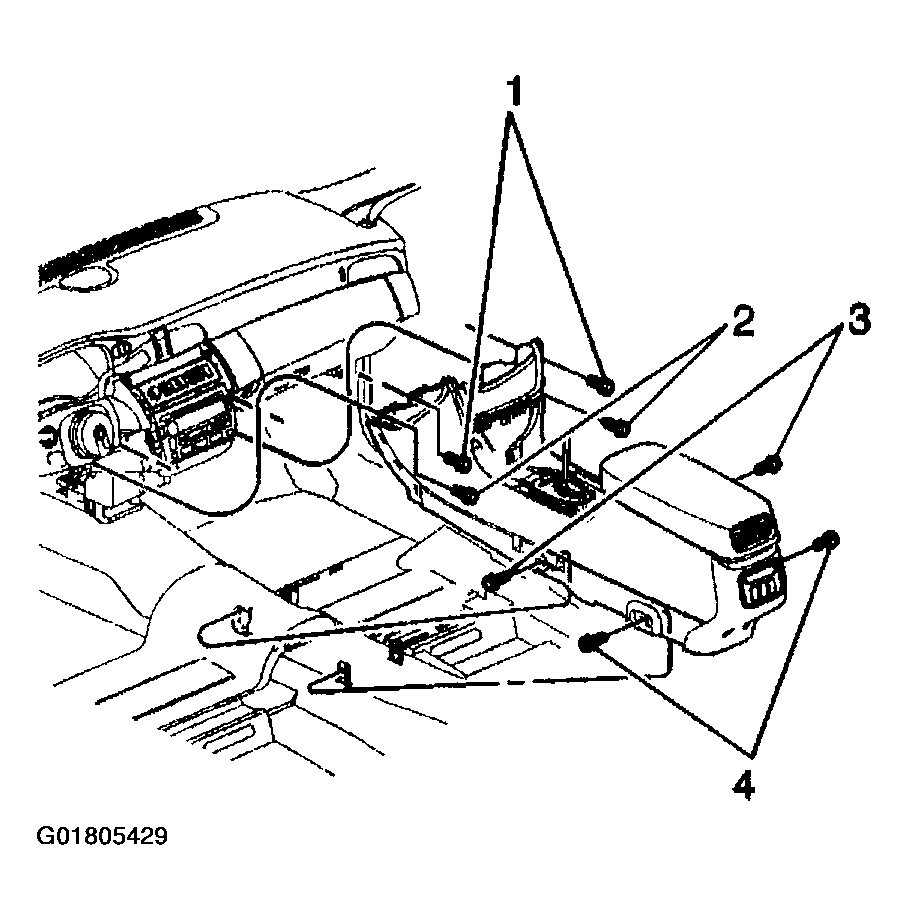

- Install the 2 upper console to IP fasteners (1).
Tighten
Tighten the fasteners (1) to 9 N.m (80 lb in).
- Install the 2 lower console to IP fasteners (2).
Tighten
Tighten the fasteners (2) to 9 N.m (80 lb in).
- Adjust the front seats to the forward position.
- Install the 2 rear console to floor fasteners (4).
Tighten
Tighten the fasteners (4) to 9 N.m (80 lb in).
- Adjust the front seats to the rear position.
- Install the 2 front console to floor fasteners (3).
Tighten
Tighten the fasteners (3) to 9 N.m (80 lb in).
- Install the IP center compartment. Refer to Compartment Replacement - IP (Base and DHS) or Compartment Replacement - IP (DTS) .

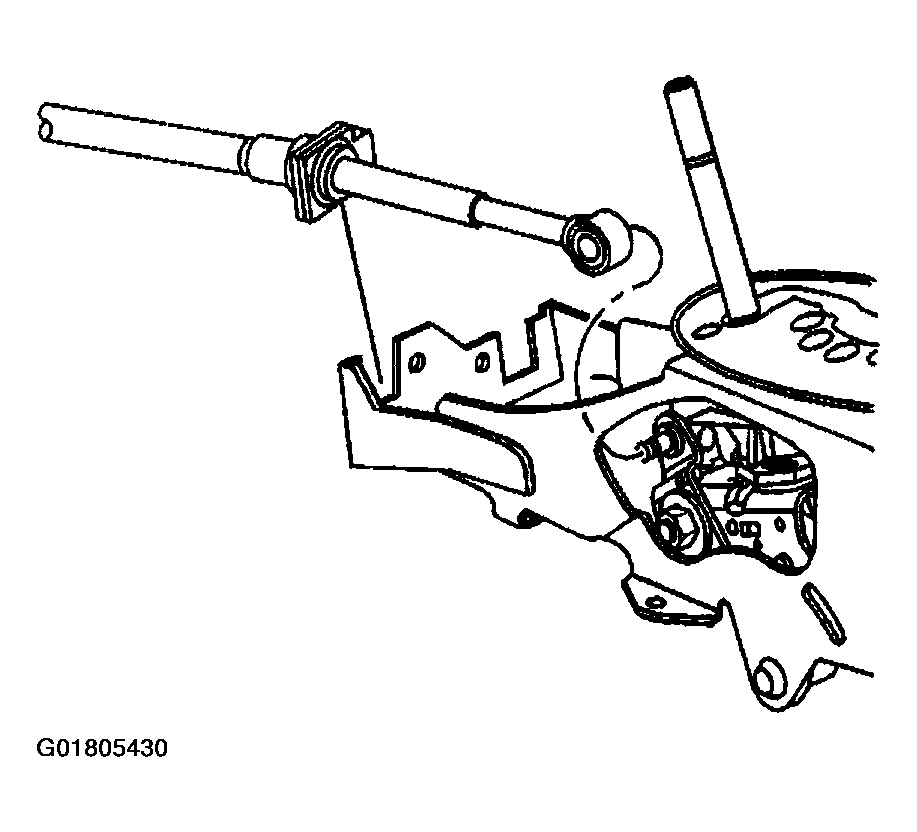

- Slide the transaxle range selector cable fully into the console until it snaps into place.
- Connect the transaxle range selector cable terminal to the shift lever pin.
- Install the console center trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) .
- Install the right knee bolster. Refer to Knee Bolster Replacement - Right .
- Install the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2) or Knee Bolster Replacement - Left (UV2) .
- Install both the left and the right console trim panels. Refer to Console Trim Panel Replacement - Left (DTS) and Console Trim Panel Replacement - Right (DTS) .
- Enable the SIR system. Refer to ACTIVATING SYSTEM .
