Installation Procedure
- Partially install the center console.

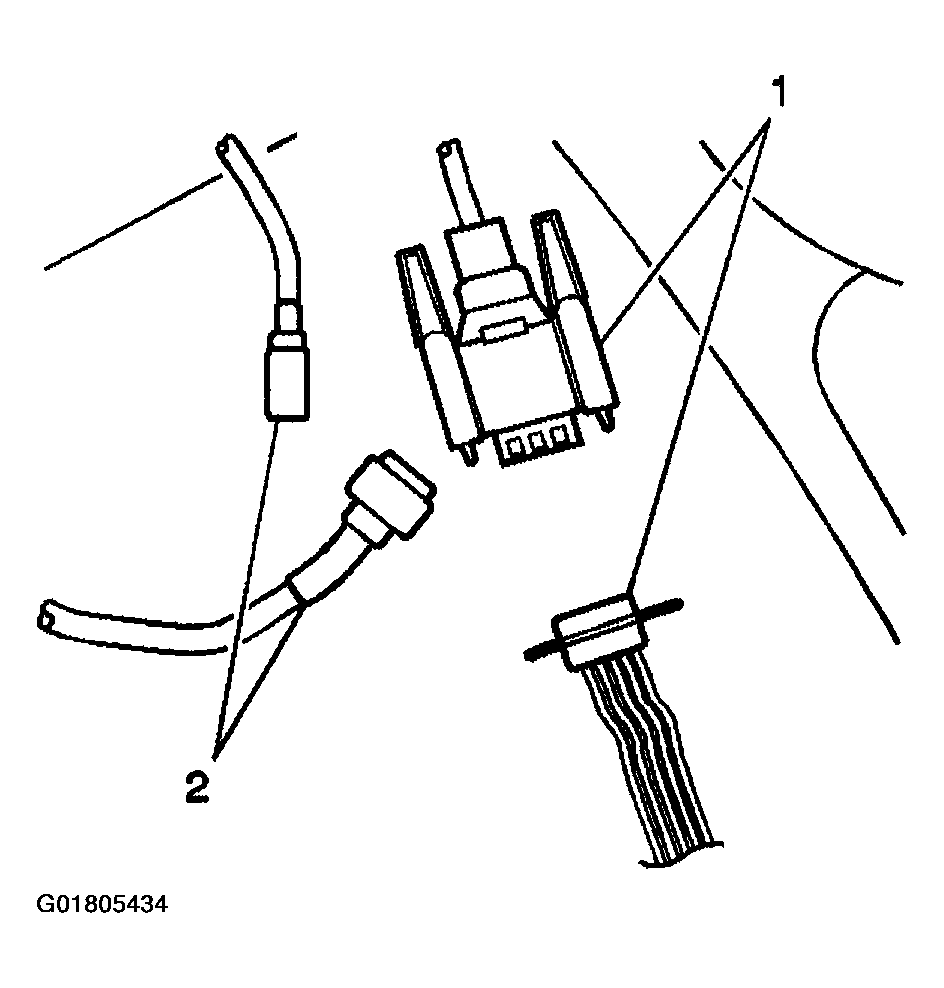

- Connect the cellular phone electrical connector (1).
- Connect the cellular phone coaxial cable (2).
- Connect the center console electrical connectors.
- Align the locating pins on the floor console to the IP.

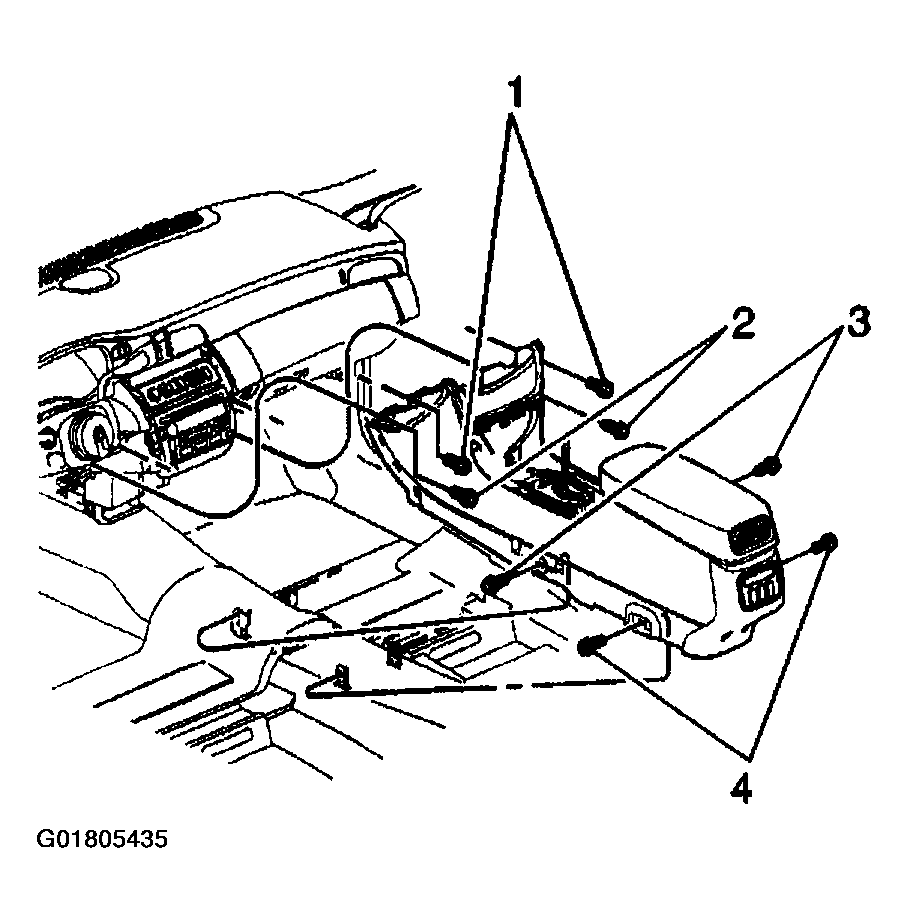

- Install the upper console to IP bolts (1).
Tighten
Tighten the bolts (1) to 9 N.m (80 lb in).
- Install the lower console to IP bolts (2).
Tighten
Tighten the bolts (2) to 9 N.m (80 lb in).
- Adjust the front seats to the forward position.
- Install the rear console to floor bolts (4).
Tighten
Tighten the bolts (4) to 9 N.m (80 lb in).
- Adjust the front seats to the rear position.
- Install the front console to floor bolts (3).
Tighten
Tighten the bolts (3) to 9 N.m (80 lb in).
- Slide the transaxle range selector cable fully into the console until it snaps into place.

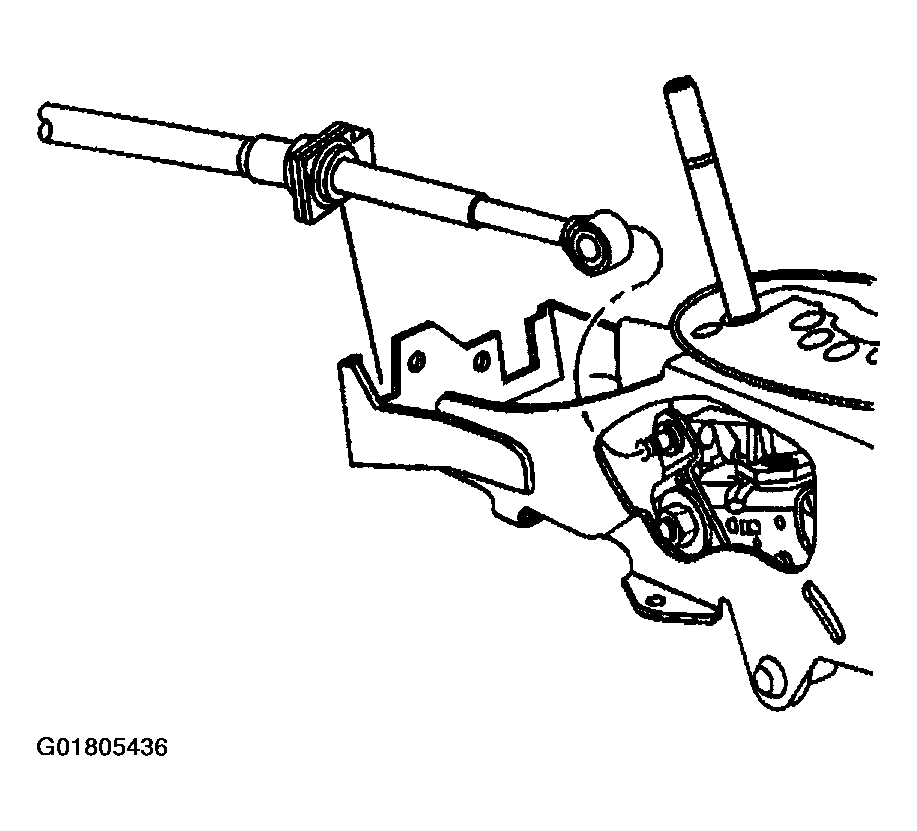

- Connect the transaxle range selector cable to the shift lever pin.
- Install the IP center storage compartment. Refer to Compartment Replacement - IP (Base and DHS) or Compartment Replacement - IP (DTS) .
- Install the console center trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) .
- Install the right knee bolster. Refer to Knee Bolster Replacement - Right .
- Install the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2) or Knee Bolster Replacement - Left (UV2) .
- Install both the left and the right console trim plates. Refer to Console Trim Panel Replacement - Left (DTS) and Console Trim Panel Replacement - Right (DTS) .
- Enable the SIR system. Refer to ACTIVATING SYSTEM .
