Installation Procedure

  1. Align the console lid with the console lid hinge.
  2. Install the fasteners (1) that retain the console lid to the hinge.

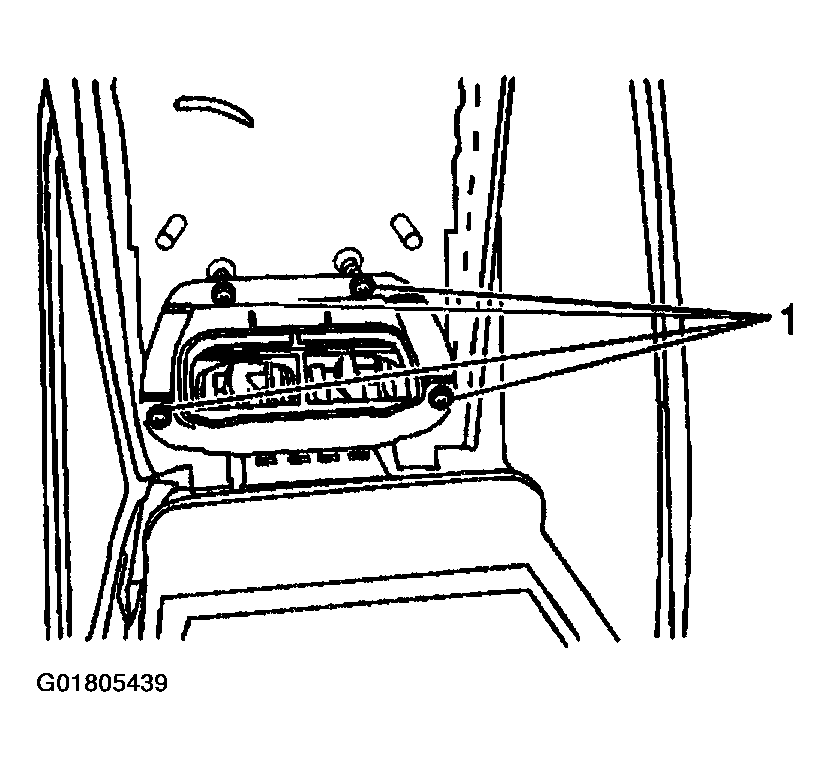

    Fig 1: Installing Fasteners Retaining Console Lid To Hinge
    G01805439Courtesy of GENERAL MOTORS CORP.
  3. Align the console inner trim panel (2) to the console armrest.
  4. Install the fasteners (1) that retain the armrest inner trim panel to the armrest.
  5. Check for proper operation of the center console lid latches.

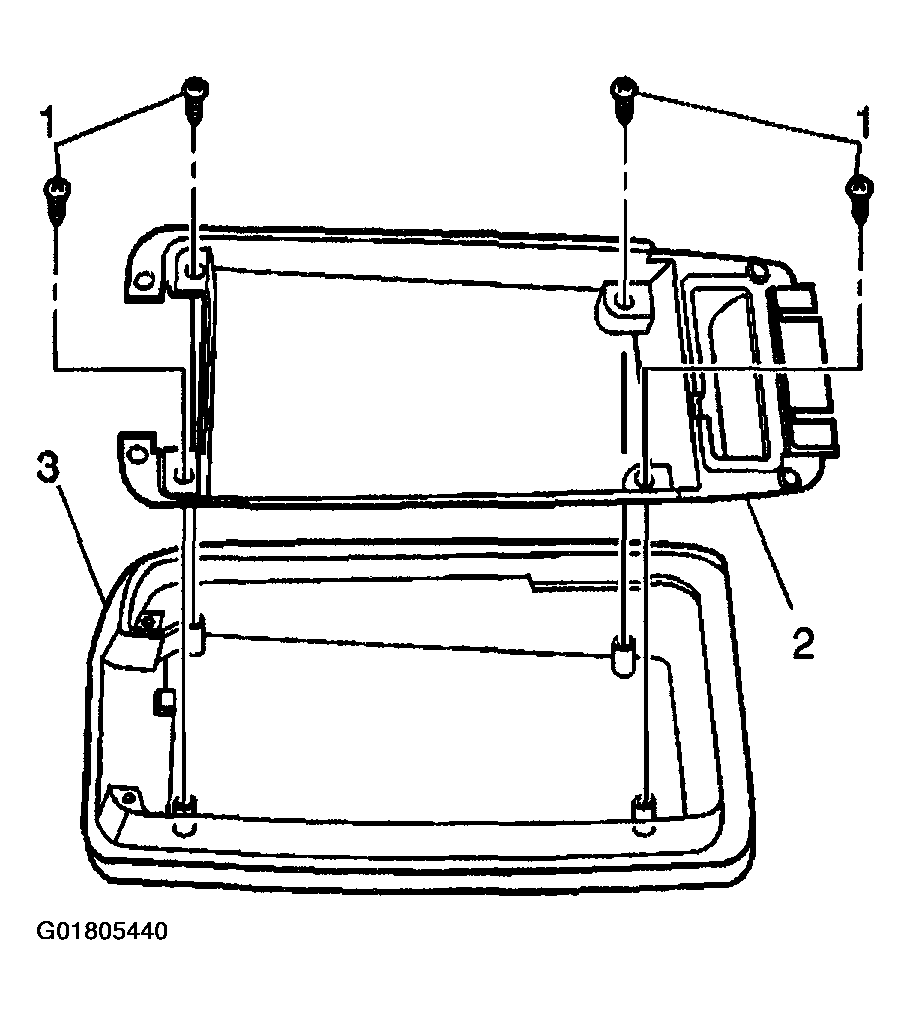

    Fig 2: Installing Inner Trim Panel & Fasteners
    G01805440Courtesy of GENERAL MOTORS CORP.
