Installation Procedure

  1. Partially install the compartment (1).
  2. Connect the electrical connector (3).
  3. Align the upper retainers with the IP and push on the top of the compartment in order to engage the upper retainers.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the bottom compartment (1) fasteners (2).

    Tighten

    Tighten the fasteners (2) to 2 N.m (18 lb in).

  5. Install the console trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) .

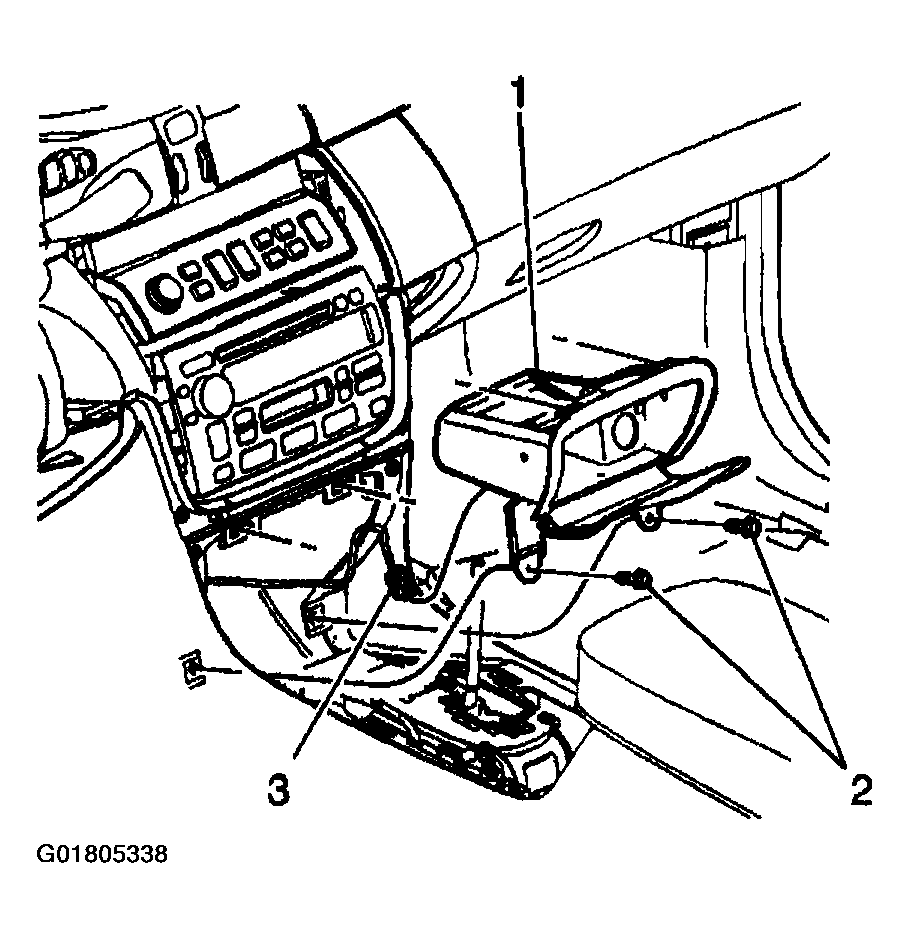

    Fig 1: Installing Compartment, Fasteners & Connecting Electrical Connector
    G01805338Courtesy of GENERAL MOTORS CORP.
